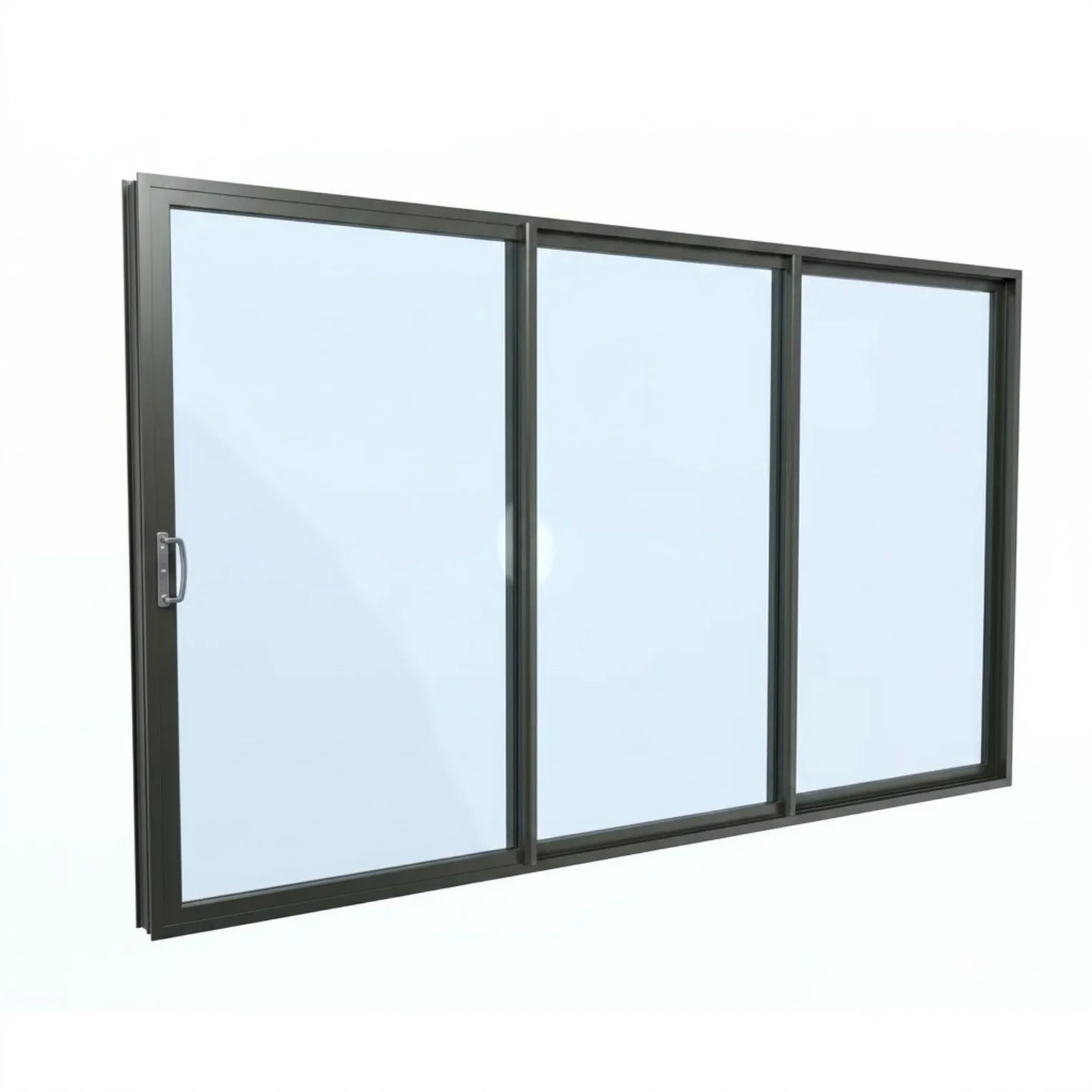

Aluminium Stacking Sliding Door | H2400 x W2400

The H2400 x W2400 aluminium stacking sliding door is a perfectly proportioned, square-format architectural portal engineered to maximize your clear opening space and effortlessly merge your indoor and outdoor environments. Measuring a towering 2.4 metres in height and spanning 2.4 metres across, this premium heavy-duty frame utilizes an advanced multi-panel stacking configuration. By allowing multiple large spans of toughened safety glass to glide and stack neatly over a single fixed panel, this door provides the ultimate glazing solution for modern Australian homes, delivering immersive natural light and a massive walk-through opening for flawless alfresco entertaining.

The Architectural Logic of the 2400x2400 Square Format

Selecting precisely engineered, carefully proportioned door dimensions fundamentally transforms the spatial dynamics, exterior aesthetics, and daily lifestyle of your property. The 2400mm height is a premium, architecturally driven measurement in contemporary Australian residential construction. While standard traditional homes often use 2100mm doors, stepping up to a 2.4-metre head height aligns perfectly with modern 2.7m or 3.0m high ceilings. This towering vertical profile immediately draws the human eye upward, making your living spaces feel significantly grander, lighter, and exceptionally luxurious.

A width of 2400mm creates a perfectly symmetrical, square architectural feature on your wall. However, the true brilliance of this specific unit lies in its stacking mechanism. A standard two-panel sliding door of this width would only ever open to a maximum of 50 percent of its frame (roughly 1.2 metres). A stacking sliding door changes the math entirely.

By intelligently dividing the 2.4-metre span into three sleek 800mm wide panels operating on a triple track system, two operable doors can slide and nest seamlessly over the single fixed panel. This advanced configuration allows you to open up roughly 66 percent of the total door frame, yielding a massive 1.6-metre wide clear thoroughfare. During a summer barbecue or family gathering, you can slide the panels completely out of the way, effectively dissolving the physical barrier between your indoor lounge room and your outdoor patio, timber deck, or courtyard.

Key Features and Build Specifications

We engineer our custom aluminium stacker doors to provide absolute reliability and uncompromising long-term performance. Every single component is meticulously selected to ensure your home remains secure, insulated, and perfectly comfortable under the most extreme weather conditions.

• Overall Dimensions: 2400mm exact outer frame height by 2400mm exact outer frame width.

• Frame Profile: Heavy-duty, commercial-grade extruded aluminium designed to flawlessly support the massive 2.4m x 2.4m span with maximum rigidity and zero structural bowing.

• Stacker Roller System: Premium, heavy-duty adjustable tandem ball-bearing rollers ensure the massive glass panels glide silently and effortlessly, catching the interlocking mullions to pull the next door along the track automatically.

• Locking Hardware: High-security, key-lockable mortice handles with multi-point locking mechanisms provide exceptional physical security against forced entry.

• Glass Options: Fitted exclusively with Grade A Toughened Safety Glass. Configure your unit with Clear, Grey Tint, Low-E, or Double Glazed units to perfectly suit your thermal needs.

• Colour Selection: Available in classic Pearl White, architectural Custom Black, or specify a Custom Colour to seamlessly match your exact exterior facade and existing joinery.

• Screen Compatibility: Integrated heavy-duty exterior tracking securely holds standard sliding Flydoors, Diamond Grille, or heavy-duty Stainless Steel Security Screen doors.

• Weather Sealing: Heavy-duty perimeter rubber weather strips, interlocking mullions, and high-quality mohair brush seals ensure the door acts as a solid, impenetrable barrier against cyclonic winds and driving coastal rain.

Room by Room Application Guide

Architects, premium builders, and discerning homeowners consistently specify this towering, perfectly square stacker door when they want to maximize their clear opening space without requiring a massively wide wall. The square proportions provide a serious architectural advantage for moderate-to-large high-traffic areas.

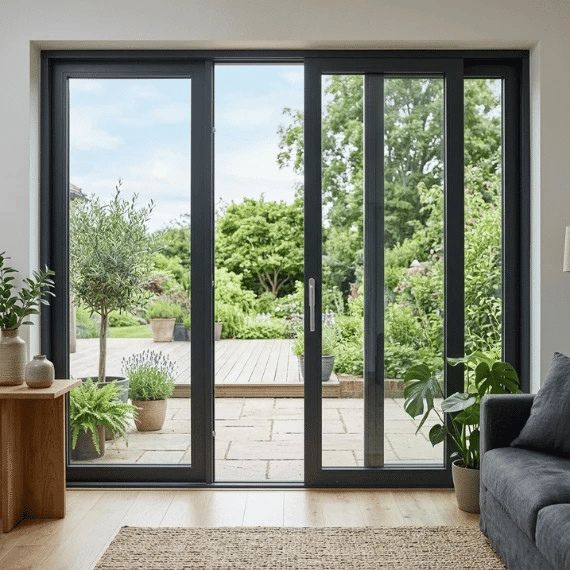

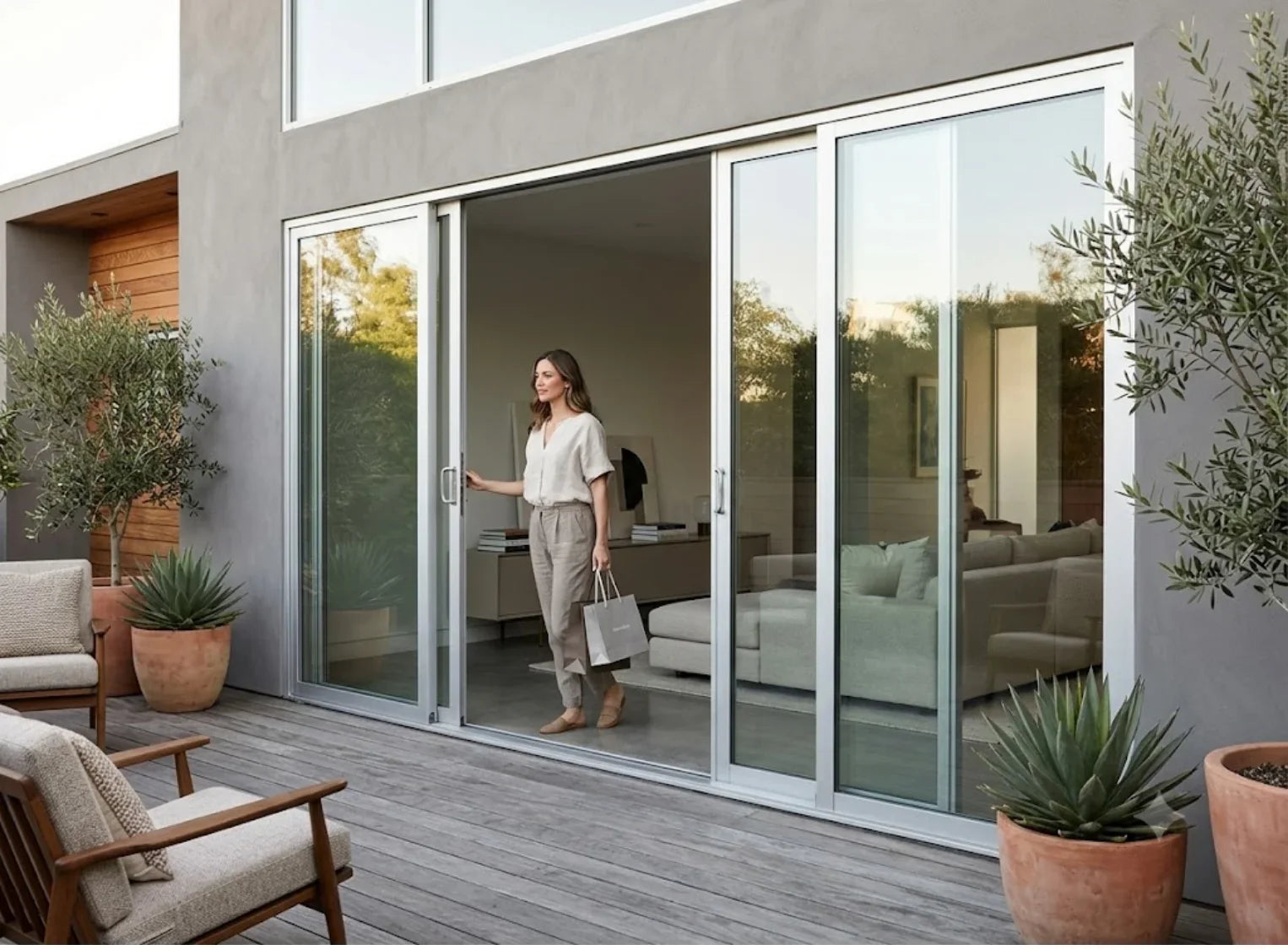

Open-Plan Living to Alfresco Transitions Installing this 2400x2400mm stacker door in your primary living space completely changes the environment of your home. It acts as a brilliant, wide-open thoroughfare to your backyard. When the weather is perfect, you can slide the doors back to create a massive 1.6-metre clear opening, allowing guests to move freely between the kitchen, lounge, and outdoor dining area. The 2.4-metre height ensures that even the tallest guests can walk through comfortably, providing a true luxury resort feel to your property.

Grand Master Suites and Private Courtyards A stacking door measuring 2.4 metres across makes a master bedroom feel incredibly spacious and deeply connected to nature. If your luxury master suite connects to a private courtyard, a plunge pool area, or a coastal viewing deck, this tall door provides sweeping, uninterrupted views right from your bed. You can slide a single panel open at night to catch a cool, ambient breeze, or stack them fully to step directly out into your private outdoor retreat.

Architectural Sunrooms and Dedicated Home Studios If you are designing a dedicated sunroom, an artist's studio, or a high-end home gym, massive expanses of operable glass are essential for fresh air and natural lighting. Installing this square 3-panel stacker allows you to completely open the structure during the hot summer months, instantly converting an indoor room into an outdoor pavilion. In winter, you lock the heavy-duty panels tight, creating a warm, sun-drenched space that remains fully insulated against the freezing outside air.

Customising Your Glazing and Finish

A glass door of this immense scale allows a highly significant amount of solar energy into your property. Because sliding doors reach all the way to the floor, Australian building codes (AS 1288) strictly mandate the use of Grade A Toughened Safety Glass to prevent dangerous shattering upon human impact. Beyond legal safety requirements, the type of glass you choose plays a foundational role in your daily thermal comfort and ongoing seasonal energy bills.

Standard Clear Toughened glass is a highly cost-effective choice for well-shaded alfresco areas or southern elevations where direct sunlight is naturally limited. If this massive wide door faces the brutal western afternoon sun, standard glass will trap the heat and quickly turn your living space into a greenhouse. We strongly recommend upgrading to Low-E glass or a Grey Tint for these highly exposed locations. Low-E glass features a microscopic, transparent metallic coating that actively reflects radiant heat back outside. It stops your rooms from overheating during intense summer heatwaves and actively retains your expensive interior heating during the freezing winter months.

For the highest possible level of energy efficiency and acoustic performance, select our Double Glazed upgrade. Double glazing traps an insulating pocket of inert argon gas between two completely separate toughened glass panes, creating a massive thermal and acoustic barrier right in the middle of your wall. This is a brilliant, essential solution for homes positioned near busy roads or noisy neighbourhood spaces.

We protect all our heavy-duty aluminium frames with a tough, baked-on powder coated finish that actively resists chalking, fading, and coastal saltwater corrosion over decades of constant use. Pearl White remains a classic choice for traditional brick builds because it actively reflects heat away from the frame. Custom Black delivers a bold, striking border that highlights contemporary architecture perfectly. Our Custom Colour service is available if you need to match existing window and door frames precisely during a major home extension.

Internal Security and External Screening Solutions

The ability to leave your massive stacker doors wide open without inviting insects or intruders into your home is an absolute necessity. Our multi-track sliding door profiles are specially extruded with deep, integrated external tracks designed to hold sliding screen doors securely in place on heavy-duty rollers.

A standard fibreglass sliding Flydoor keeps mosquitoes and flies away during warm summer nights, allowing you to enjoy a cool cross-breeze. However, for a primary entry point of this scale, home security is often a priority. If you want genuine, uncompromising peace of mind, upgrade to our heavy-duty Stainless Steel Security Screen doors. This premium woven mesh resists knife attacks, heavy blunt impact, and forced entry attempts, allowing you to ventilate your home safely at any hour of the day or night without obscuring your panoramic view of the outdoors.

Built to Meet Australian Standards

The unforgiving Australian climate destroys cheap, imported building materials very quickly. We engineer our products to survive extreme heatwaves, driving coastal rain, and cyclonic winds without warping, bowing, or leaking. Every aluminium door we manufacture complies strictly with AS 2047 (Windows and External Glazed Doors in Buildings) and AS 1288 (Glass in Buildings). This mandatory certification guarantees your specific door design has passed rigorous independent laboratory testing for structural deflection, operating force, water penetration resistance, and human impact safety.

New Age Construction Group operates directly out of Smeaton Grange NSW. We proudly manufacture custom building materials and deliver them right across Australia. Whether your job site is located in Sydney, Melbourne, Brisbane, Perth, Adelaide, or a remote regional centre, we transport your custom doors safely to your location. You are investing in heavy-duty products engineered by an experienced local team who understands exactly what the harsh Australian environment demands.

Frequently Asked Questions

What is the advantage of a stacker door over a standard sliding door? A standard two-panel sliding door only opens to 50% of the frame width. A stacking sliding door uses three panels on a triple track, allowing two doors to slide and stack over a single fixed panel. This gives you a clear opening of approximately 66%, creating a much wider, more seamless thoroughfare for entertaining.

Can I add security screens to a stacking door? Yes. Our stacker door frames are extruded with dedicated exterior tracks specifically designed for screen doors. You will require an interlocking stacker screen system, which we can supply in either standard insect mesh or heavy-duty Stainless Steel Security mesh, perfectly matching the operation of your glass doors.

How is a door of this size delivered? Due to the massive 2.4m x 2.4m dimensions and the extreme weight of the toughened glass, these large-format doors are typically supplied as a semi-knockdown kit (a flat-pack frame with completely separate, pre-glazed sliding panels). This ensures safe transport and allows your builders to handle and assemble the unit safely on your specific job site.

Secure Your Custom Door Order Today

The H2400 x W2400 aluminium stacking sliding door delivers brilliant panoramic light, premium architectural aesthetics, and flawless indoor-outdoor flow in a perfectly balanced square format. Use the configuration tools on this page to build your perfect unit. Select your glass, frame colour, stacking configuration, and required exterior screens, then add the item to your cart for a fast and secure checkout. If you need a custom size, technical advice on energy ratings, or bulk pricing for a premium architectural build, contact the expert team at New Age Construction Group today.
