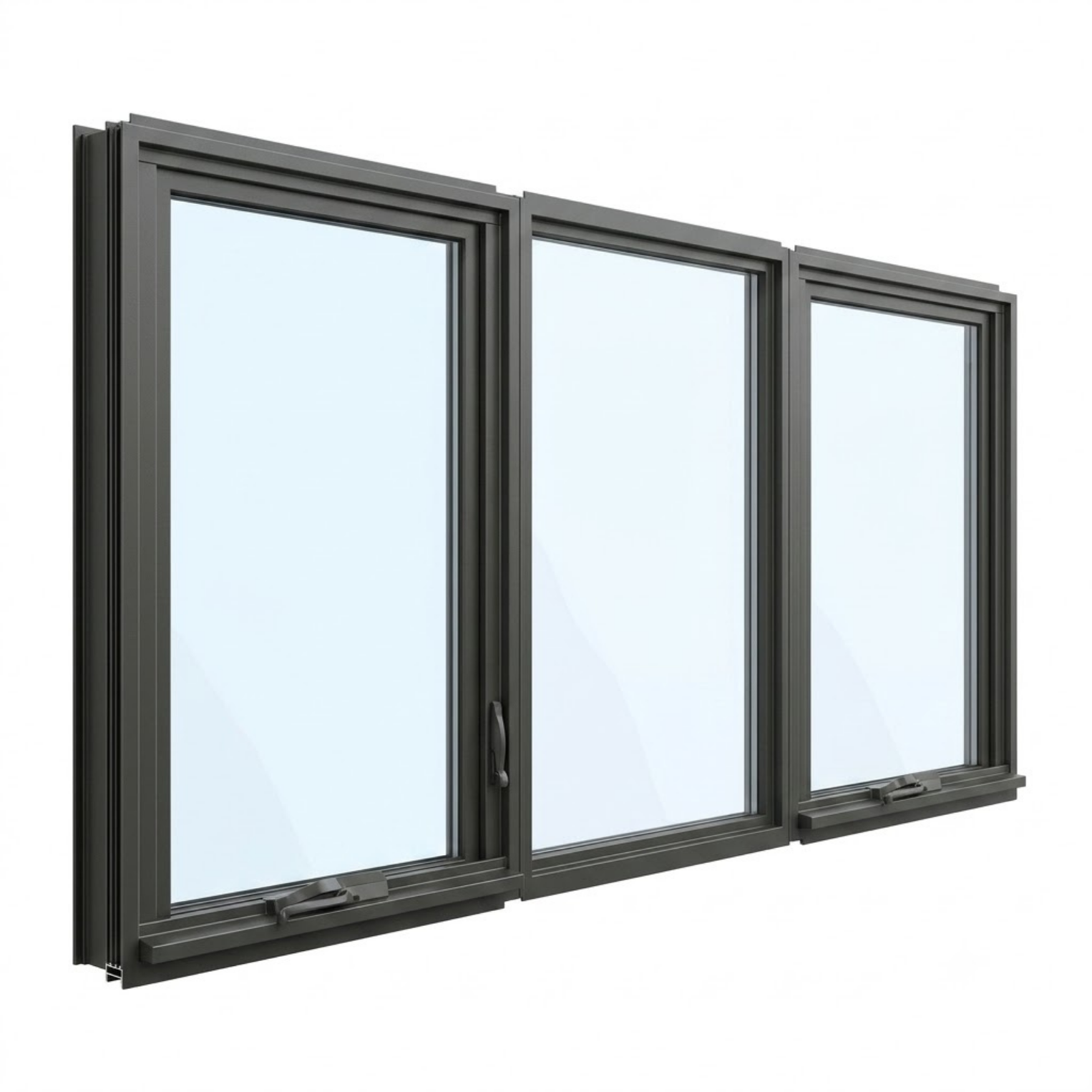

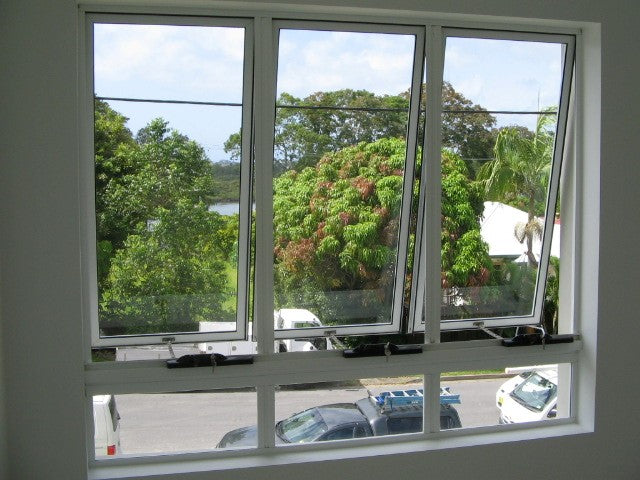

3-Panel Awning & Fixed Window | H1200 x W1800

A multi-panel combination window is an advanced architectural glazing system that merges operable sashes with stationary picture glass into a single, unified frame to balance controlled ventilation, weather protection, and panoramic daylighting. The 3-Panel Awning & Fixed Window in H1200 x W1800 from New Age Construction Group delivers a striking modern profile, superior thermal performance, and dependable structural weatherproofing for Australian residential and commercial builds. Measuring 1200 millimetres high by 1800 millimetres wide, this balanced 1.8-metre wide triple-section unit combines flanking operable awning sashes with a large central fixed picture pane. It is engineered specifically to provide secure, weather-resistant ventilation during light rain while framing expansive outdoor views across standard framing bays.

Balanced Three-Section Architecture and Weather-Protected Ventilation

The primary engineering advantage of a combination awning and fixed window lies in its multi-functional layout. While standard sliding windows require side clearance and standard awning windows lack central focus, a 3-panel configuration featuring an operable awning sash on either side of a large central fixed glass pane creates a symmetrical, high-performance focal point for any room. The central fixed pane maximizes natural light transmission and unobstructed outdoor vistas without mechanical joints or hardware interruptions, while the side awning sashes hinge outward from the top to allow continuous airflow even when light showers pass through.

Because awning windows project outward from the base, their top-hinged design acts as a natural protective hood that sheds rainwater away from the opening. This allows homeowners to keep bedrooms and living areas ventilated during humid or wet weather without risking water ingress across the sill. In this 1200-millimetre high by 1800-millimetre wide format, the window proportions fit cleanly into standard bedroom elevations, living room feature walls, and kitchen extensions. When closed, high-performance perimeter compression seals lock tightly against the heavy-duty aluminium frame, delivering exceptional acoustic dampening and airtight energy efficiency.

Specifications and Features

• Exact Dimensions: 1200mm Height x 1800mm Width, proportioned in a balanced 1.8-metre wide triple-section configuration engineered to fit standard framing bays.

• Heavy-Duty Frame: Built from commercial-grade Australian aluminium engineered to support multiple glass panes and heavy-duty hinges without twisting or structural deflection.

• Smooth Awning Hardware: Equipped with robust chain winders, stainless steel friction stays, and positive-action cam locks for secure, effortless sash operation.

• Central Fixed Viewport: Features a large fixed central picture glass pane designed to maximize natural light transmission and outdoor sightlines.

• Glass Selection: Choose from 6mm toughened Clear glass, Grey Tint for solar heat and glare reduction, Low-E thermal glass, or Satinlite Obscure glass for privacy.

• Powder-Coated Finishes: Available in Pearl White, Custom Black, or Custom Colour finishes applied to resist fading, chalking, and blistering under intense Australian UV radiation.

• Certified Compliance: Tested and manufactured to meet AS 2047 requirements for Australian residential and commercial building compliance.

Where to Use an H1200 x W1800 3-Panel Awning & Fixed Window

The 1200mm by 1800mm footprint makes this combination window an exceptional specification for main bedrooms, home offices, and living spaces where both ventilation and unobstructed center-stage views are desired. Installing this unit above standard bedroom furniture or living room architectural ledges allows you to capture morning breezes through the side awning sashes while enjoying a wide, picture-window view of the front garden or backyard through the central fixed pane.

This 3-panel configuration also excels in dining areas and hallways. The symmetrical layout provides an upscale, architectural aesthetic that elevates both interior and exterior facade designs. Additionally, the inclusion of matching external flyscreens on the operable awning sashes ensures you can leave windows open throughout the evening without letting insects inside.

Configuring Your Custom Window

Every building site has unique solar orientation and ventilation requirements, which is why we assemble each combination window to order based on your exact specifications. Start by selecting your frame colour to match your existing doors, cladding, and architectural profiles across the property.

Next, choose your glass package. Standard Clear toughened glass provides maximum daylight transmission and crisp outdoor viewing for shaded or south-facing elevations. For north or west-facing walls exposed to intense afternoon sun, choosing Grey Tint glass helps soften harsh glare and reduce indoor heat accumulation. For boundary walls or street-facing elevations where privacy is required, Satinlite Obscure glass lets in natural sunlight while blocking external sightlines. If thermal performance is a priority, selecting Low-E glass helps reflect radiant heat and stabilize internal temperatures year-round.

Engineering, AS 2047 Compliance, and Climate Durability

Australian weather conditions can be demanding, ranging from coastal salt spray to driving inland storms. Combination awning and fixed window systems require rigorous structural integrity, precise frame alignment, and robust sill drainage channels to withstand high wind loads. We manufacture our aluminium frames using thick-walled commercial profiles that comply with AS 2047 structural strength, wind deflection, and water penetration standards.

Every window is assembled, glazed, and inspected by our fabrication team before dispatch. Whether your job site is located in Sydney, Melbourne, Brisbane, or regional Australia, you receive a robust window system ready for straightforward installation into timber, steel, or brick-veneer frames.

Frequently Asked Questions

What are the benefits of a 3-panel awning and fixed window combination?

This design combines a large central fixed glass pane for unobstructed views and natural light with two operable side awning sashes that allow for weather-protected ventilation during light rain.

Can I install flyscreens on the operable awning sashes?

Yes. Our awning windows come equipped with internal insect screens that clip neatly onto the frame, allowing you to wind the sashes open for ventilation while keeping bugs out of your home.

What is the standard lead time for custom aluminium combination windows?

Custom aluminium windows from New Age Construction Group are typically manufactured and dispatched within 12 to 15 working days. Every unit is made to measure and inspected for quality before shipping across Australia.

Order Your Custom Combination Window Today

Select your frame colour and glass type above to configure your custom window. Need advice on bespoke sizing, screening options, or bulk trade orders for your job site? Contact our team for expert guidance on your next build.
