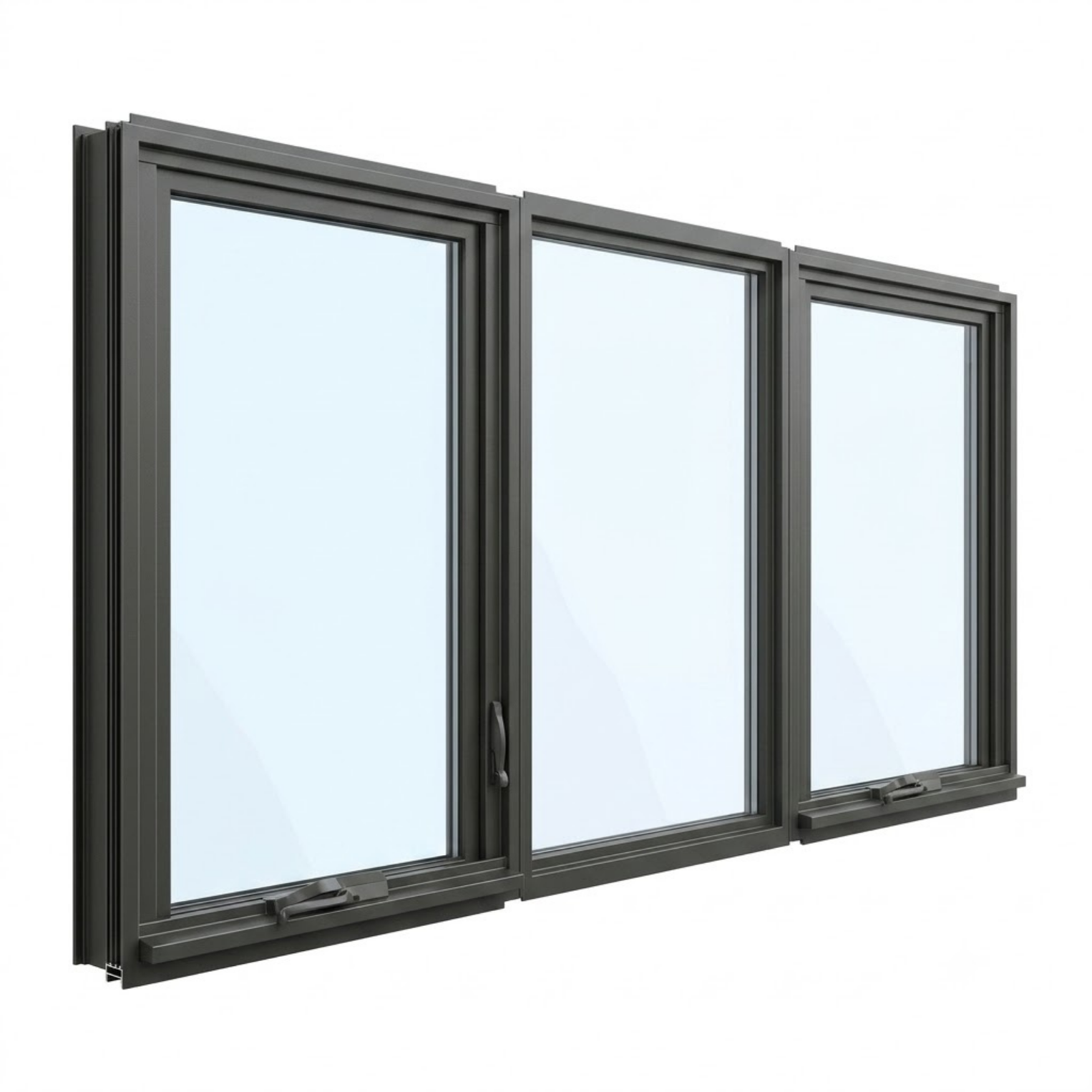

3-Panel Awning & Fixed Window | H1200 x W2700

Maximize your home's panoramic views and secure flawless ventilation with our massive 1200x2700mm Triple-Panel Aluminum Window. Engineered in a high-performance Awning/Fixed/Awning configuration, this extra-wide unit features a massive central viewing pane flanked by two smooth-opening active awning sashes. It is a striking architectural addition for spacious open-plan living areas, large dining zones, or custom master suites where you want expansive glass surfaces paired with weather-protected airflow across a broad structural opening.

By inheriting a rugged commercial design heritage and refining it for luxury residential living, this window system delivers high-end aesthetics alongside structural features that generic alternatives simply cannot match.

Advanced Engineering & Premium Hardware:

• Concealed Architectural Lines: Designed with an innovative hidden hinge system built entirely within the window frame profile. This eliminates cluttered external hardware, ensuring the flawless, modern look expected in premium properties.

• Refined Aesthetics: Showcases an elegant bevelled edge frame as standard, with a wider premium sash option available for upscale custom builds.

• Flexible Profile Depths: Tailor the frame to your specific building specs with a choice between a 50mm slimline profile or a heavy-duty 92mm premium frame depth.

• Independent Dual Operation: Both operable awning sashes come equipped with their own high-quality Doric Chain winder for smooth, reliable, and secure operation. (Note: Product photos focus on the interior perspective to demonstrate this premium hardware).

• Certified Reliability: Fully engineered and rigorously tested to meet or surpass Australian Standards AS2047, AS1170, AS1191, and AS3959.

Specifications & Sizing:

• Window Dimensions: Height 1200mm x Width 2700mm

• Required Stud Opening (Reveal Windows Only): Height 1250mm x Width 2750mm

• Weight: Single Glazed: 54kg | Double Glazed: 84kg

Eco-Friendly Engineering & Thermal Performance: Upgrading old windows is a proven strategy for reducing high utility expenses. Independent research demonstrates that installing high-performance window systems can improve an Australian home's overall thermal performance rating by 2 to 2.5 stars. Built using 100% recyclable aluminum, this eco-ventilation unit is highly durable and sustainable.

While standard window designs need clunky external adapters to handle heavy glass profiles, our frames natively accept advanced eco-glazing right out of the box. Easily drop in energy-efficient Low-E glass, or up to 10.5mm thick high-performance thermal and acoustic glazing layers without any unsightly alterations to the frame.

Pro Tip for Sustainable Home Design: For absolute peak climate efficiency, pair performance windows with robust insulation and try to orient your primary living areas facing north for optimal seasonal shading.

Contact Us for Custom Orders: If you need custom dimensions, specialized glass types, alternative splits, or custom powder-coated frame colors, our production team is ready to help. Contact us today to request a tailored project quote!
