H1600 x W1800 Triple-Panel Aluminium Awning & Fixed Window

The H600 x W1800 triple-panel aluminium awning and fixed window is a wide, low-profile architectural unit designed for maximum natural light and controlled ventilation. Featuring a central fixed glass pane flanked by two operable awning sashes that push outward from the bottom, this window is built to withstand harsh Australian weather conditions. It provides a highly effective solution for kitchen splashbacks, high-wall bedroom placement, or any space where you need privacy without sacrificing fresh airflow.

Why Choose the H600 x W1800 Triple-Panel Format

Choosing the right window dimensions can completely change how a room feels and functions. At 600mm high and 1800mm wide, this specific window offers a one to three aspect ratio. This wide panoramic shape is incredibly popular in modern Australian home design. It allows you to capture sweeping outside views while taking up minimal vertical wall space.

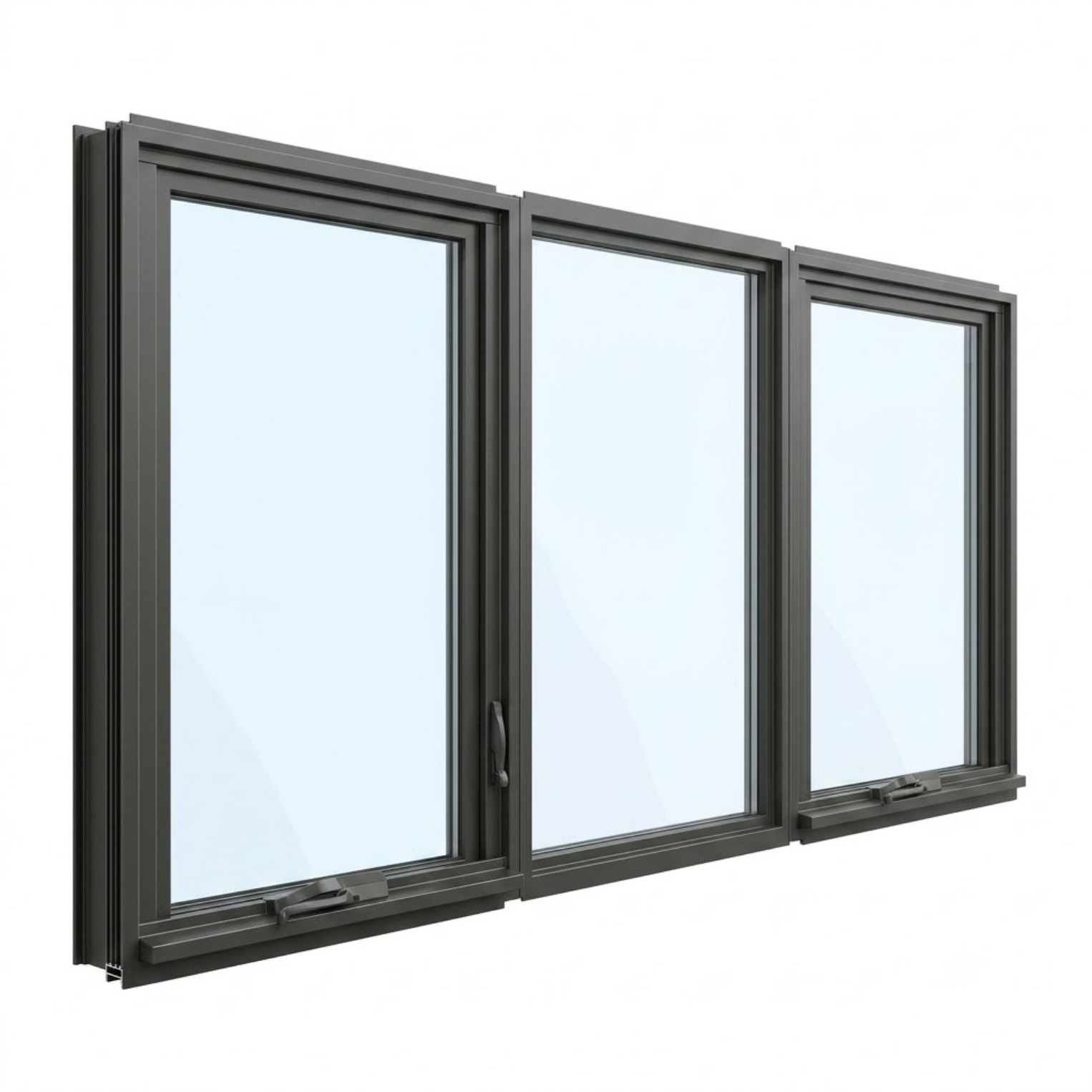

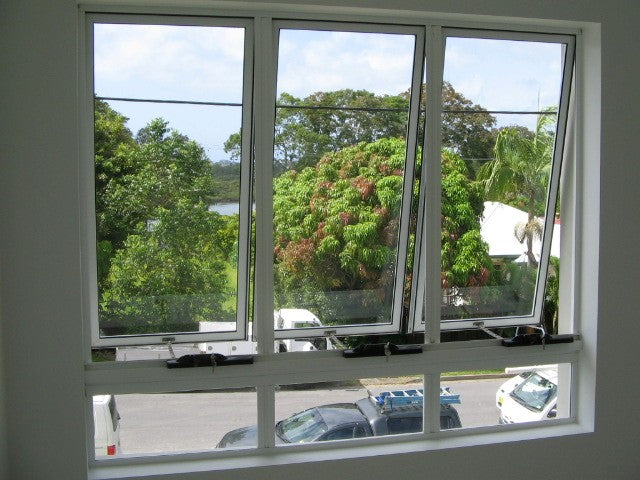

The triple-panel configuration splits the 1800mm width into three neat, symmetrical sections. Typically, this layout gives you a fixed pane in the center for an unobstructed view, with awning sashes on the left and right. Awning windows are hinged at the top and open outward from the bottom using a smooth chain winder mechanism. This unique opening style acts like a protective canopy. You can leave the windows open during a light rain shower to let fresh air inside while keeping the rain outside.

This combination of fixed and operable panels means you get the best of both worlds. You secure a large pane of glass for passive solar heating and clear sightlines, right alongside heavy-duty operable sashes that catch cross-breezes and flush hot air out of your home.

Key Features and Specifications

We engineer our aluminium windows to provide absolute reliability and long-term performance. Every component is selected to ensure your home remains comfortable and secure.

• Overall Dimensions: 600mm height by 1800mm width.

• Frame Construction: Heavy-duty extruded aluminium profile designed for maximum structural rigidity.

• Operating Mechanism: Premium chain winders on the awning sashes allow for precise control over your ventilation.

• Weather Sealing: High-quality perimeter seals block out drafts, dust, and moisture when the window is fully closed.

• Glass Options: Available in Clear, Grey Tint, Low-E, Satinlite Obscure, and energy-efficient Double Glazed variants.

• Colour Selection: Choose from standard Pearl White, Custom Black, or specify a Custom Colour to match your exact architectural requirements.

• Screen Compatibility: Frame designed to accommodate internal screens including standard Flyscreens, Diamond Grille, or Stainless Steel Security Screens.

• Hardware: Key-lockable chain winders come standard for added security and peace of mind.

Ideal Applications for Australian Homes

The H600 x W1800 size is exceptionally versatile. Builders and renovators frequently specify this exact window size for several highly practical locations around the house.

Kitchen Splashbacks Installing this wide window directly between your kitchen benchtop and overhead cupboards completely transforms the space. It floods your prep area with natural morning light and gives you a clear view of the backyard. Because the outer panels open outward, you can quickly ventilate cooking smells and excess heat without turning on the exhaust fan.

Bathrooms and Ensuites Privacy is the top priority in any bathroom. Placing a 600mm high window close to the ceiling allows hot steam to escape rapidly. When paired with our Satinlite Obscure glass, this high-wall placement guarantees absolute privacy from neighbours while still keeping the room bright and airy.

Bedrooms A popular modern design choice is to place this wide window directly above the bed headboard. It creates a beautiful architectural focal point in the room. It also allows you to leave the awning sashes cracked open at night for a cool breeze without compromising your security.

Living and Alfresco Areas Hot air rises. Placing these low-profile windows high up on a raked ceiling or along the top of a living room wall creates an effective thermal chimney. You can open the sashes on a hot summer afternoon to let trapped heat escape, drawing cooler air in from the lower windows in the house.

Customising Your Window Configuration

Every home is different, which is why we build your windows to order. The right combination of glass, colour, and screening will ensure your new window performs exactly how you need it to.

Choosing the Right Glass Your glass selection heavily influences the thermal performance of your room. Standard Clear glass is perfect for well-shaded areas where you simply want a great view. If the window faces the harsh western sun, we highly recommend upgrading to a Grey Tint or Low-E glass. Low-E glass features a microscopic coating that reflects heat back to its source. It keeps your house cooler in summer and warmer in winter. For the ultimate in thermal and acoustic performance, select our Double Glazed option. Double glazing creates an insulating pocket of air between two panes of glass, significantly reducing your energy bills and blocking out noisy street traffic.

Frame Colours and Finishes We finish our aluminium frames in a highly durable powder coating that resists fading, chalking, and corrosion. Pearl White remains a classic choice that suits coastal homes and traditional builds beautifully. Custom Black provides a striking, high-contrast look that defines modern industrial and architectural styles. If you are matching existing window frames in a renovation, our Custom Colour option ensures you get a precise match.

Internal Screen Options Because awning sashes push outward, any protective screen must be fitted to the inside of the frame. Our chain winders are designed to operate perfectly through a neat cutout in the screen frame. If you just want to keep mosquitoes out, a standard Flyscreen will do the job perfectly. For robust protection that deters intruders, upgrade to a Stainless Steel Security Screen. These premium screens offer maximum forced-entry resistance while maintaining a completely unobstructed view of the outdoors.

Built to Meet Australian Standards

The Australian climate is notoriously tough. From blistering summer heatwaves to driving coastal rain, your windows need to handle it all. We manufacture our aluminium windows right here in Australia to meet and exceed AS 2047 building standards.

This means every window design has been rigorously tested for structural deflection, operating force, air infiltration, and water penetration resistance. We use premium marine-grade components and tough powder-coated finishes to ensure your frames will not warp, rot, or degrade over time. New Age Construction Group is based in Smeaton Grange NSW, and we proudly deliver our custom architectural solutions across Australia including Sydney, Melbourne, Brisbane, Perth, Adelaide, and regional areas. You can install our products knowing they are engineered by locals who understand the exact demands of the local environment.

Frequently Asked Questions

How do screens work on an awning window? Since the glass pushes outward to the exterior, all screens on awning windows are fitted to the inside of the window frame. The chain winder winder sits neatly below or passes through a dedicated slot in the screen, allowing you to open and close the window without ever needing to remove the bug mesh or security screen.

Are these windows suitable for bushfire-prone areas? Yes. When specified with the correct toughened glass and our Stainless Steel Security Screens, aluminium awning windows can meet stringent Bushfire Attack Level (BAL) requirements. Please contact our team with your specific BAL rating so we can ensure your order meets the exact compliance codes for your local area.

What is the standard lead time for custom windows? Because we custom build every order to your exact colour and glass specifications, our standard lead time is typically 3 to 5 weeks from the time of order placement. We will always keep you updated on the manufacturing progress and coordinate a precise delivery date as your windows approach completion.

Can I install these windows myself? While our windows are supplied fully assembled and ready for installation, we strongly recommend using a licensed builder or qualified carpenter. Proper installation, packing, and weatherproofing are essential to ensure the window meets structural standards and remains completely watertight.

Ready to Upgrade Your Space?

Whether you are building a new architectural home or replacing a tired old kitchen window, the H600 x W1800 triple-panel awning and fixed window delivers exceptional value. Select your preferred colour, choose your glass type, and add your required screens using our configuration tool above. Add the unit to your cart for a fast, secure checkout, or reach out to the New Age Construction Group team today if you need a custom size or a detailed project quote.
