3-Panel Awning & Fixed Window | H600 x W2400

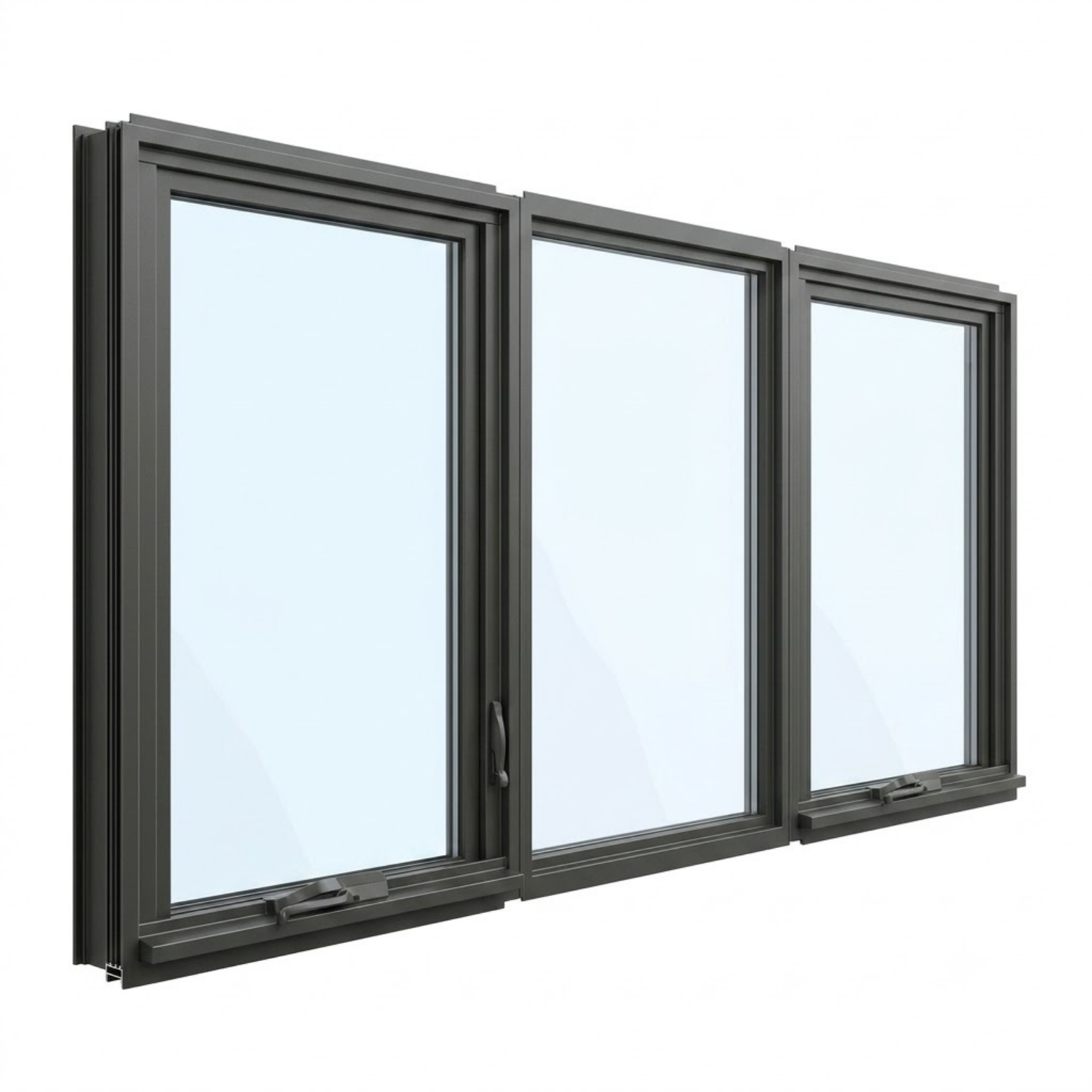

The 3-Panel Awning & Fixed Aluminium Window (H600mm x W2400mm) delivers a sleek, low-profile horizontal ribbon design engineered to provide expansive architectural sightlines alongside superior all-weather ventilation. Measuring a compact 600mm in height by a versatile 2400mm in width, this three-panel combination window is an architectural favourite for kitchen feature splashbacks, high-level living room highlight windows, and privacy placements in contemporary bedrooms and bathrooms. By pairing top-hinged operable awning sashes with non-operable fixed picture panels, you gain the perfect balance of uninterrupted natural daylight and controlled airflow across a 2.4-metre span. Powered by smooth, heavy-duty mechanical chain winders, the awning sashes open outward from the bottom to create a protective overhead canopy—allowing fresh cross-ventilation to circulate even during light rain downpours. Customise your frame finish from our architectural powder-coated colour palette, select high-performance toughened safety glass or double glazing, and add protective interior insect or marine-grade stainless steel security screens for the operable bays. Built in smeaton Garage by New Age Construction Group to comply with AS 2047 Australian Standards and delivered securely Australia-wide.

3. Comprehensive Product Description

Key Features & Architectural Benefits

• Sleek Horizontal Ribbon Proportions: Spanning 2.4 metres wide with a low-profile 600mm height, this proportion is ideal for introducing panoramic daylight and ventilation without consuming valuable wall space. It is widely specified by architects and builders for high-level placement along privacy walls, above kitchen benchtops as a feature splashback window, or in garages and bathrooms where eye-level privacy is essential.

• Versatile Awning & Fixed Combination: Divided into three balanced 800mm-wide bays (typically configured as Awning / Fixed / Awning or Fixed / Awning / Fixed), this layout combines the best of both worlds. The fixed picture panel provides uninterrupted, screen-free viewing of your outdoor landscape, while the operable awning panels deliver controlled ventilation where you need it most.

• All-Weather Ventilation: Because the operable sashes are hinged from the top and swing outward from the bottom, the open glass acts as an overhead protective canopy. This allows you to keep your awning sections open for fresh air circulation during rainy weather without water splashing into your interior living space.

• Heavy-Duty Chain Winder Mechanism: Each operable awning sash is controlled by an ergonomic, corrosion-resistant mechanical chain winder that glides smoothly and holds the window firmly at any extension. The self-locking winder mechanism prevents the sash from being forced open from the outside, delivering dependable everyday home security.

• Full-Perimeter Compression Sealing: Engineered with continuous, high-grade EPDM compressible weather gaskets around the frame rebate of operable bays and a 100 per cent structural seal on fixed bays. When wound shut, the operable sashes compress tightly against the seals to completely eliminate winter draughts, street noise, dust, and heavy driving storm rain.

• Maintenance-Free Structural Aluminium: Crafted from thick-gauge, powder-coated structural aluminium joinery designed to support wide 2400mm spans without sagging, bowing, or rotting under intense Australian UV exposure and coastal salt spray.

Glazing & Performance Options

Tailor your combination window's thermal efficiency, visual light transmittance, and privacy level by selecting from our premium safety glass range across all three panels:

• Clear Toughened Safety Glass: Delivers maximum visible daylight transmittance and crystal-clear exterior viewing at an accessible price point.

• Grey Tint Toughened Glass: Cuts harsh afternoon glare and reduces solar heat gain during hot summer afternoons without darkening your indoor living space.

• Low-E Toughened Glass: Features a permanent, microscopic low-emissivity coating that reflects interior warmth back inside during winter while slowing down radiant summer heat transfer.

• Satinlite Obscure Glass: Textured privacy glass that lets natural daylight stream in while completely obscuring visibility from neighbouring properties—ideal for side-boundary walls or bathroom light wells.

• Double Glazed Options: Available across clear, tinted, and Low-E variations to create an insulating dead air pocket that slashes thermal heat transfer and significantly cuts outside neighbourhood traffic noise across both fixed and operable bays.

Integrated Insect & Security Screens

Because awning sashes open outward away from the interior wall, protective screens for the operable bays mount cleanly to the internal face of the window frame. Fixed picture panels remain completely screen-free for unobstructed viewing:

• Internal Flyscreens: Custom-fitted insect screens with durable fibreglass mesh that keep flies and mosquitoes outside while allowing cooling cross-breezes to circulate through operable bays.

• Diamond Grille Screens: Classic aluminium security grilles that provide physical deterrence against intruders alongside everyday insect protection.

• Stainless Steel Security Screens: Heavy-duty, marine-grade woven stainless steel mesh that resists knife cuts, heavy impact, and coastal corrosion, securing your ventilation sashes without obstructing airflow or outdoor views.
