Premium Aluminium Awning & Fixed Window | H1200 x W1800

The H1200 x W1800 Premium Aluminium Awning and Fixed Combination Window integrates top-hinged ventilation with an unobstructed glass pane in a single, robust frame. Engineered for high performance across Australian weather conditions, this dual-function unit delivers continuous natural light while allowing controlled airflow during wet weather. Built with commercial-grade powder-coated aluminium profiles, it offers home builders, architects, and renovators a reliable, low-maintenance glazing solution tailored to modern residential and commercial designs.

Dual-Function Engineering for Light and Ventilation

Combining a top-hinged awning sash alongside a fixed picture window panel optimizes both functionality and visual clarity. The fixed glass section maximizes visible light transmission, while the adjacent awning sash opening outwards from the bottom allows air to circulate freely through the interior without rain entry.

This specific 1200mm height by 1800mm width configuration suits mid-to-large room openings where maximum daylight is preferred alongside flexible ventilation options. By housing both operations within a unified structural frame, sightlines remain clean, reducing vertical frame clutter and maintaining architectural symmetry across the building exterior.

Frame Construction and Structural Integrity

Built from high-extrusion aluminium alloys, the frame resists warping, twisting, and corrosion over extended exposure to coastal salt air, UV radiation, and heavy rainfall. Heavy-duty chain winders manage the awning sash, ensuring smooth operation and holding the window securely open even during windy conditions.

• Frame Dimensions: Height 1200mm x Width 1800mm

• Material: Marine-grade extruded aluminium alloy

• Hardware: Heavy-duty winder mechanism with integrated cam locks

• Seals: Continuous perimeter weather seals to eliminate drafts and rain ingress

• Glazing Pocket: Designed to accommodate single and double glazed units effortlessly

Customization Options: Glass, Finish, and Screens

To align with specific energy requirements, privacy demands, and exterior colour palettes, this window unit can be fully configured prior to manufacture.

Powder-Coated Colour Options

Our durable architectural powder coating resists chipping, fading, and chalking over time:

• Pearl White: A classic, clean finish suitable for traditional and modern homes.

• Custom Black: A contemporary, high-contrast frame choice favored in contemporary architectural builds.

• Custom Colour Options: Colorbond matching available upon request for precise exterior integration.

High-Performance Glazing Solutions

Selecting the appropriate glass package reduces heating and cooling loads, controls solar heat gain, and improves acoustics:

• Clear Glass: Maximizes natural light and solar gain for colder orientations.

• Grey Tint: Reduces glare and solar heat build-up while offering subtle daytime privacy.

• Low-E Glass: Feature coating that reflects internal heat back into the room during winter and blocks external heat during summer.

• Satinlite Obscure: Patterned translucent glass providing privacy for bathrooms or overlooked side passages without blocking natural light.

• Double Glazing: Available across all glass styles to maximize thermal insulation and sound reduction.

Integrated Screening Options

Keep insects out while allowing fresh air in with custom-fit screens that seat neatly within the interior frame recess:

• No Screens: Standard configuration for sites where internal screening is not required.

• Standard Flyscreens: Fine fibreglass mesh that deters flies, mosquitoes, and midges without obscuring views.

• Diamond Grille: Sturdy aluminium grille mesh adding an extra physical protection layer against accidental impacts.

• Stainless Steel Security Screen: High-tensile marine-grade stainless steel mesh offering high-level security without restricting ventilation or visibility.

Australian Standards Compliance and Thermal Performance

Every window unit from New Age Construction Group is manufactured to strict structural and thermal benchmarks. Frame profiles and glass selections meet the stringent structural and water-penetration requirements set under AS 2047 (Australian Standard for windows and doors in buildings).

When configured with energy-efficient glass options such as Low-E or Double Glazed units, these combination windows meet or exceed targets set under the Window Energy Rating Scheme (WERS). This performance supports compliance with NatHERS house energy ratings and NCC energy efficiency requirements across cooler southern regions and hot northern climates alike.

Ideal Applications for the H1200 x W1800 Frame

This versatile combination layout adapts well to multiple residential and light commercial spaces:

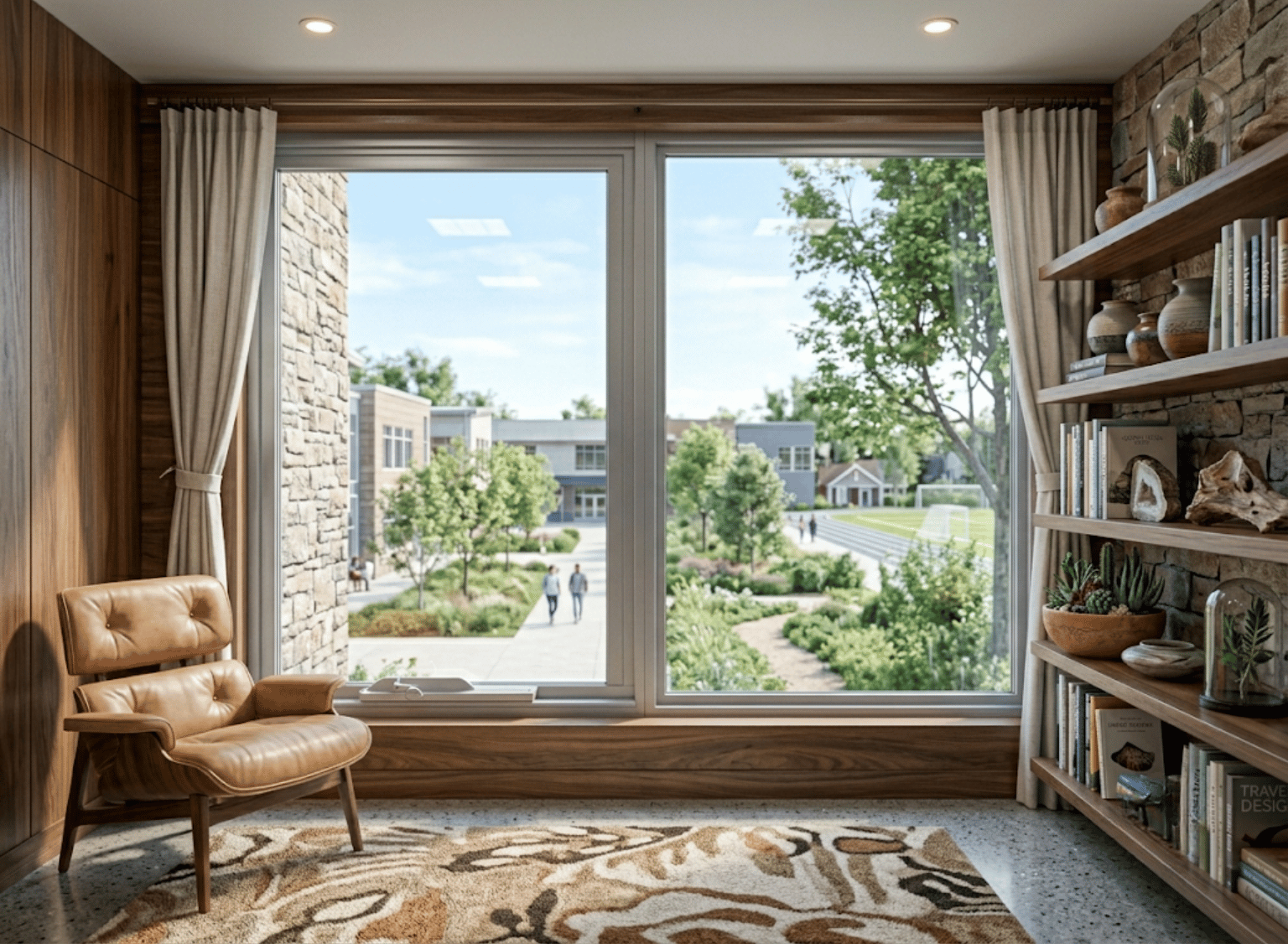

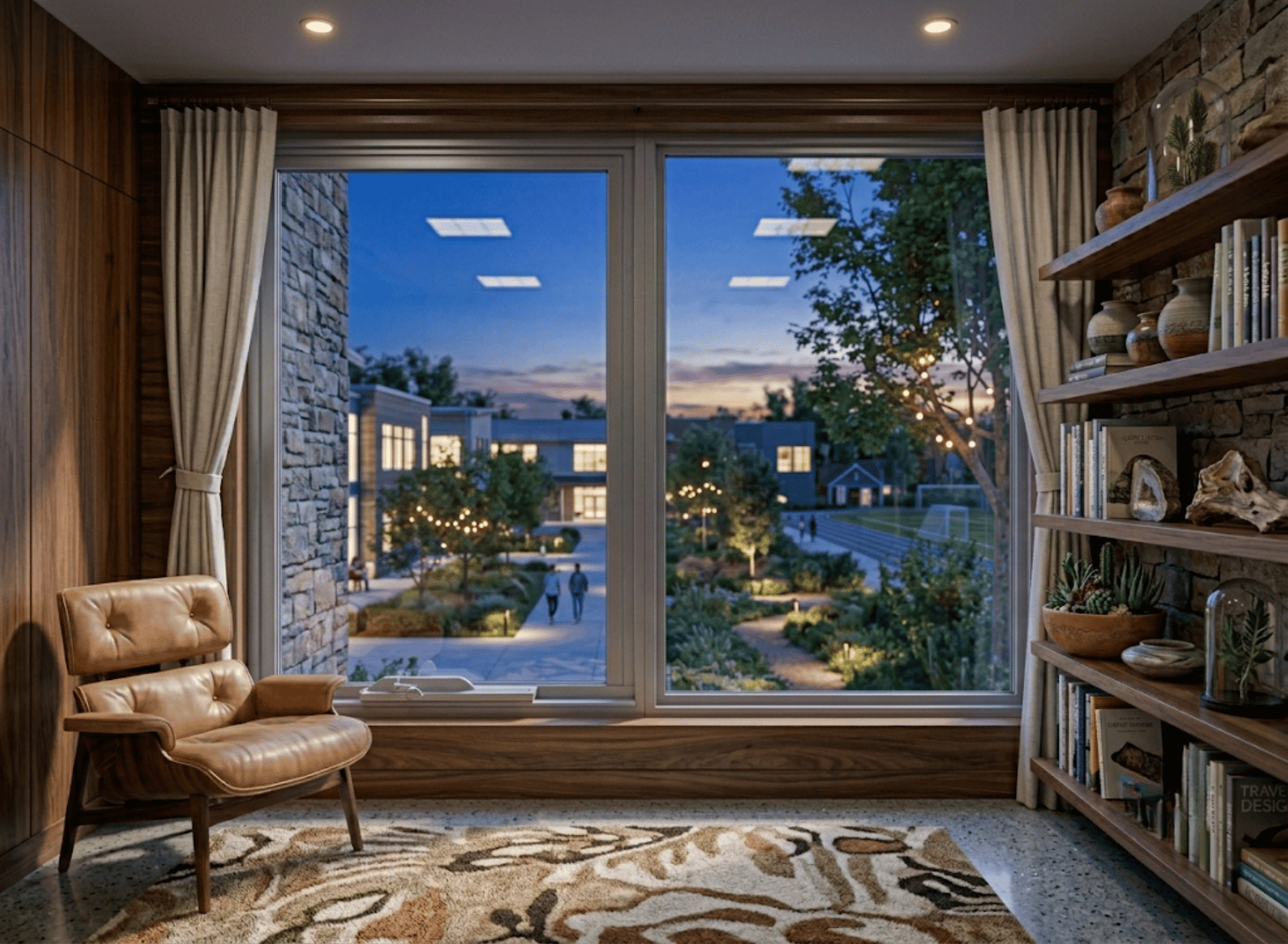

• Living Rooms & Open Plan Spaces: Fills internal areas with natural light through the fixed glass while providing effortless trickle ventilation via the winder-operated sash.

• Kitchens & Dining Areas: Place above benchtops or splashbacks to vent cooking steam and smells while preserving expansive outdoor views.

• Bedrooms: Allows overnight airflow through the awning sash, even during rain showers, keeping bedrooms fresh without water entry.

• Home Offices & Commercial Studios: Balances glare reduction (with tinted glass options) and acoustic damping for quieter working spaces.

Simple Order Configuration Guide

Ordering the correct window configuration online involves four straightforward steps:

1. Confirm Rough Opening: Verify that your structural stud opening provides appropriate tolerances for a 1200mm x 1800mm frame size.

2. Select Frame Colour: Match existing cladding, roof trim, or interior architraves with Pearl White, Custom Black, or custom powder-coat shades.

3. Choose Your Glass Spec: Select single glazing for standard builds or opt for Low-E / Double Glazed packages to boost energy ratings and lower power bills.

4. Add Flyscreens or Security Screens: Choose your preferred screening material to protect opening sashes against insects and unwanted intruders.

Frequently Asked Questions

Can I leave the awning window open when it rains?

Yes. Because awning windows hinge at the top and swing outward at the bottom, the glass sash acts as a protective awning canopy. This allows you to leave the sash open for ventilation during light to moderate rainfall without water entering your home.

What is the benefit of combining a fixed window with an awning window in one frame?

Combining both styles gives you the structural and aesthetic benefit of an expansive picture window alongside functional ventilation. It eliminates the need to install separate frames side-by-side, saving on installation costs, improving overall structural integrity, and creating cleaner sightlines.

How long does manufacturing and delivery take?

Standard order lead times generally range between 12 to 15 working days from final order confirmation and sign-off. Windows are safely packed and delivered directly to job sites across Sydney, Melbourne, Brisbane, Adelaide, Perth, and regional Australian locations.

Order Your Custom Aluminium Windows Today

Ready to complete your build or renovation? Configure your H1200 x W1800 Premium Aluminium Awning and Fixed Window online today using our simple drop-down menus, or contact the team at New Age Construction Group for tailored trade quotes and technical support.
