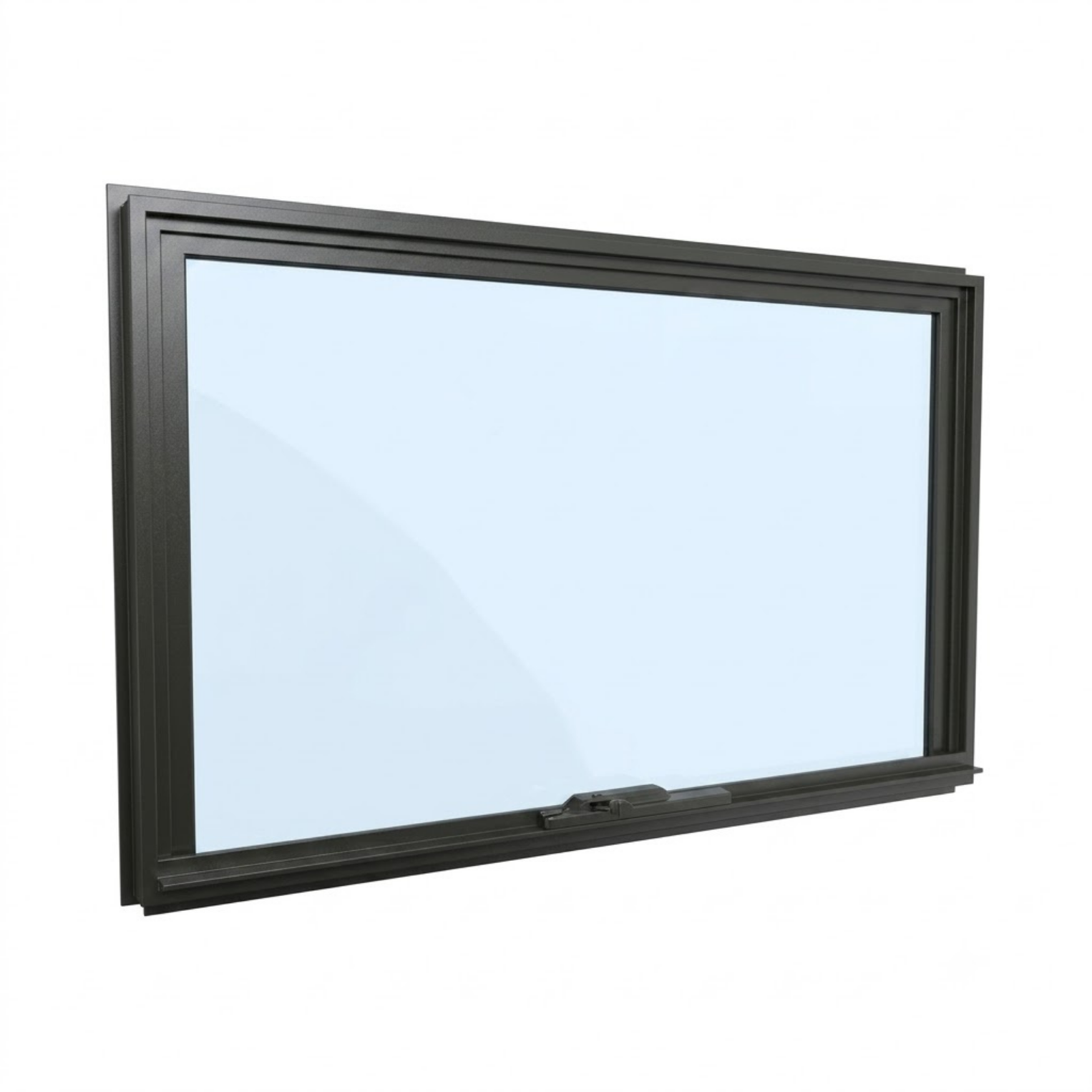

Premium Aluminium Awning Window | H600 x W1500

The Premium Aluminium Awning Window (H600mm x W1500mm) delivers a sleek, low-profile horizontal ribbon design engineered for superior all-weather ventilation and privacy. Measuring a compact 600mm in height by 1500mm in width, this top-hinged window is the architectural standard for kitchen splashbacks, high-level bedroom and bathroom privacy windows, and placement above furniture or cabinetry. Powered by a smooth, heavy-duty mechanical chain winder, the bottom sash opens outward to create a natural weather canopy—letting fresh cooling airflow circulate even during light rain. Customise your frame finish from our architectural powder-coated colour palette, choose from high-performance toughened safety glass or double glazing, and add protective interior insect or marine-grade stainless steel security screens. Built in Smeaton Grange by New Age Construction Group to comply with AS 2047 Australian Standards and delivered securely Australia-wide.

Key Features & Architectural Benefits

• Sleek Horizontal Ribbon Proportions: Spanning 1500mm wide with a low-profile 600mm height, this proportion is ideal for introducing panoramic daylight and ventilation without consuming valuable wall space. It is a favourite among architects and builders for high-level placement along privacy walls, above kitchen benchtops as a feature splashback window, or in garages and bathrooms where eye-level privacy is essential.

• All-Weather Ventilation: Because the sash is hinged from the top and swings outward from the bottom, the open glass acts as an protective overhead canopy. This allows you to keep the window open for continuous cross-ventilation during rainy weather without water splashing into your interior living space.

• Heavy-Duty Chain Winder Mechanism: Operated by an ergonomic, corrosion-resistant mechanical chain winder that glides smoothly and holds the sash firmly at any extension. The self-locking winder mechanism prevents the window from being forced open from the outside, delivering dependable everyday home security.

• Full-Perimeter Compression Sealing: Engineered with continuous, high-grade EPDM compressible weather gaskets around the frame rebate. When wound shut, the sash compresses tightly against the seals to completely eliminate winter draughts, street noise, dust, and heavy driving storm rain.

• Maintenance-Free Structural Aluminium: Crafted from thick-gauge, powder-coated structural aluminium joinery designed to support wide 1500mm horizontal spans without sagging, bowing, or rotting under intense Australian UV exposure and coastal salt spray.

Glazing & Performance Options

Tailor your awning window's thermal efficiency, visual light transmittance, and privacy level by selecting from our premium safety glass range:

• Clear Toughened Safety Glass: Delivers maximum daylight and crystal-clear exterior viewing at an accessible price point.

• Grey Tint Glass: Cuts harsh afternoon glare and reduces solar heat gain during hot summer afternoons without darkening your indoor living space.

• Low-E Toughened Glass: Features a permanent, microscopic low-emissivity coating that reflects interior warmth back inside during winter while slowing down radiant summer heat transfer.

• Satinlite Obscure Glass: Textured privacy glass that lets natural daylight stream in while completely obscuring visibility from neighbouring properties—ideal for bathroom installations or side-boundary walls.

• Double Glazed Options: Available across clear, tinted, and Low-E variations to create an insulating dead air pocket that slashes thermal heat transfer and significantly cuts outside neighbourhood traffic noise.

Integrated Insect & Security Screens

Because awning windows open outward away from the interior wall, protective screens mount cleanly to the internal face of the window frame. This allows unobstructed winder operation while keeping your screens protected from outdoor weather:

• Internal Flyscreens: Custom-fitted insect screens with durable fibreglass mesh that keep flies and mosquitoes outside while allowing cooling cross-breezes to circulate.

• Diamond Grille Screens: Classic aluminium security grilles that provide physical deterrence against intruders alongside everyday insect protection.

• Stainless Steel Security Screens: Heavy-duty, marine-grade woven stainless steel mesh that resists knife cuts, heavy impact, and coastal corrosion, securing your window without obstructing your airflow or outdoor view.

4. Technical Specifications Table
