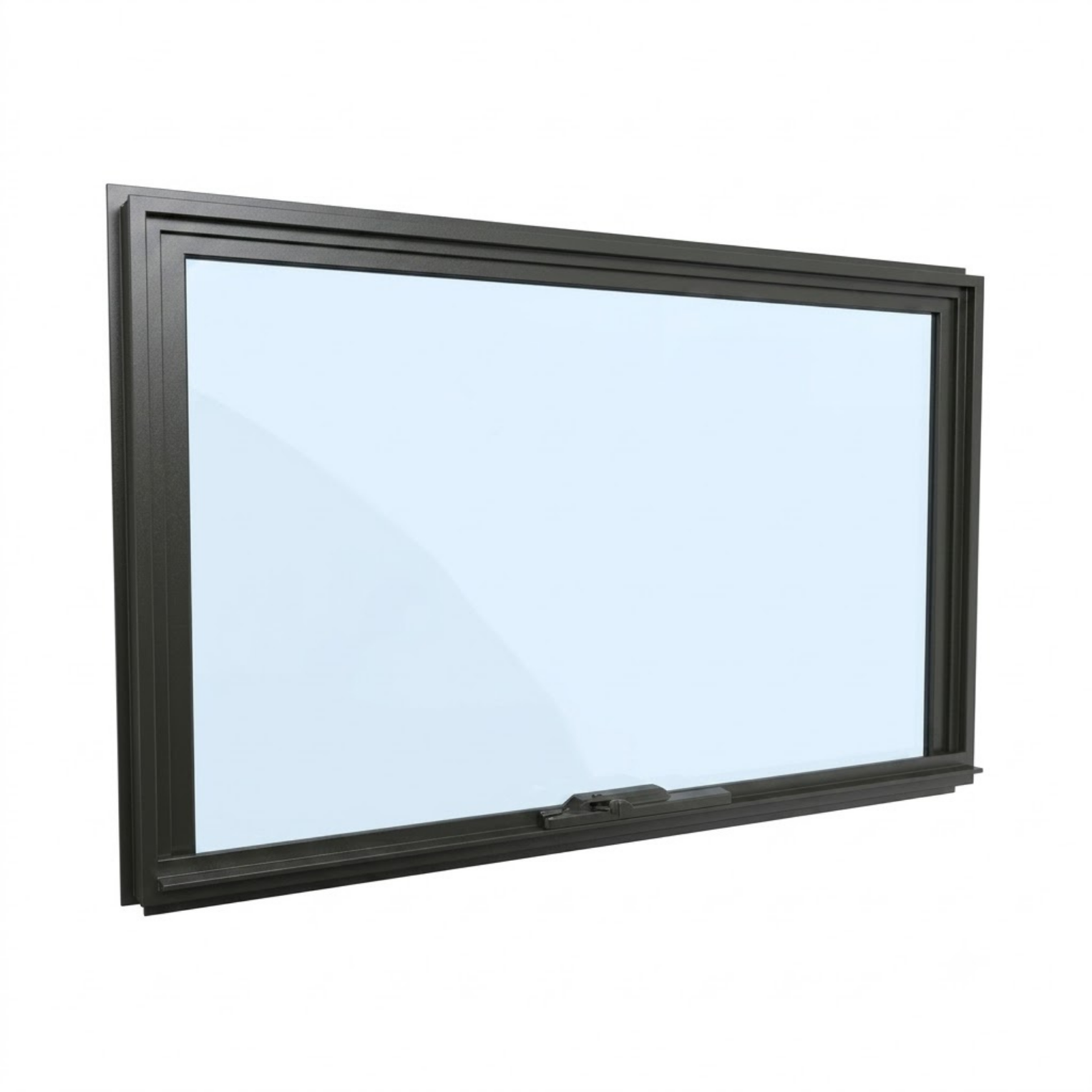

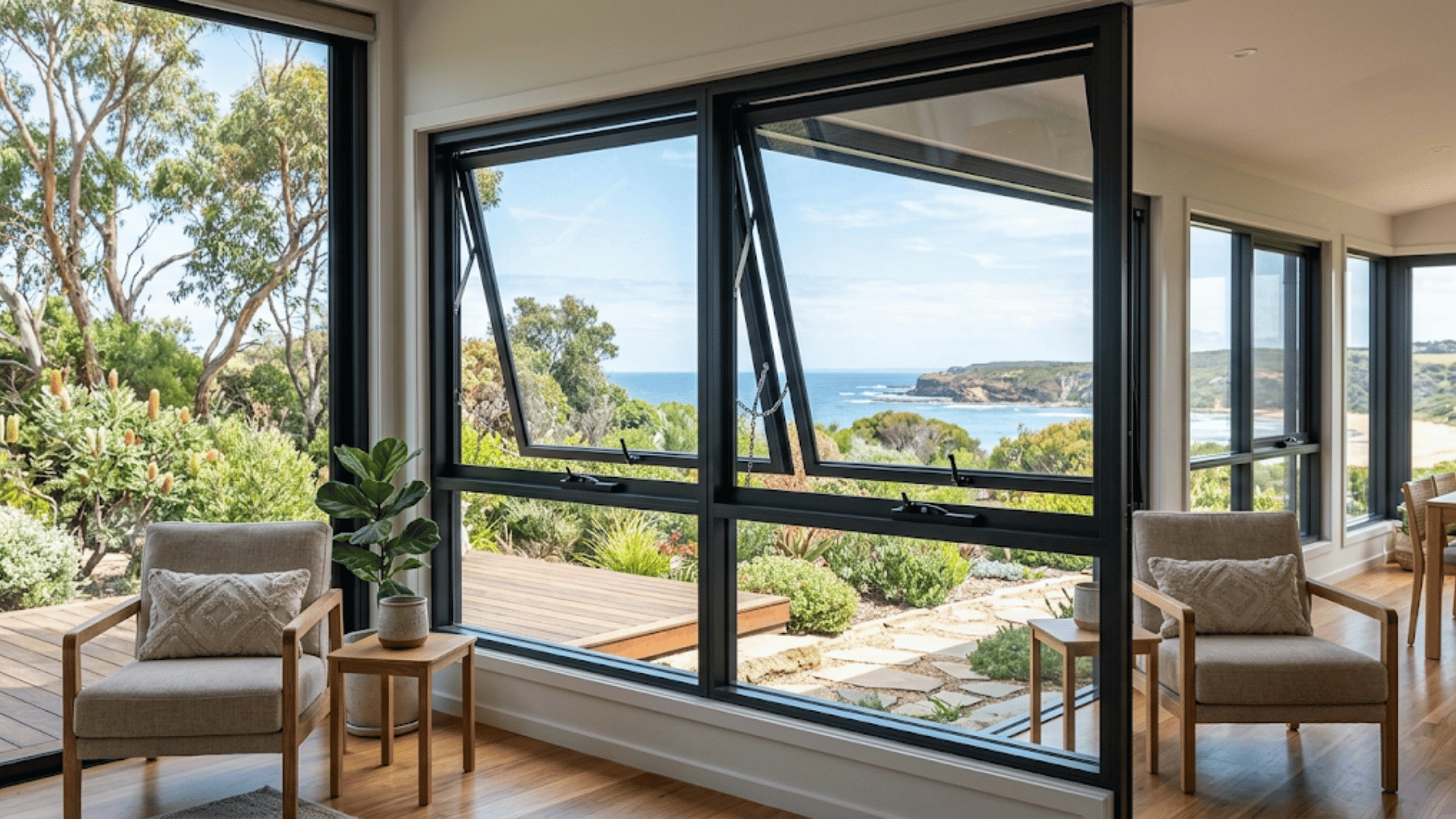

Awning Window | H600 x W900

An aluminium awning window measuring 600mm high by 900mm wide is a versatile residential architectural window engineered for bathrooms, ensuites, kitchens, laundries, powder rooms, and walk-in pantries. Standing at 600mm tall by 900mm wide, this H600 x W900 unit features a top-hung operable sash that swings outward from the bottom via a smooth, corrosion-resistant chain winder mechanism. Built from heavy-duty Australian aluminium, it delivers superior weatherproofing, controlled ventilation during wet weather, and crisp architectural sightlines for both new residential builds and home renovations.

Why Choose an H600 x W900 Awning Window?

When you are designing wet areas, laundry rooms, or functional kitchen layouts where continuous airflow and privacy are essential, an H600 x W900 awning window offers significant practical advantages over standard sliding window designs. Because the sash is hinged at the top and opens outward from the bottom, the glass pane acts as a protective canopy when opened. This allows you to leave the window partially open for natural ventilation during rainy weather without rain dripping onto interior sills or floors.

The landscape proportions of 600mm height by 900mm width make this window an exceptional choice for placement above kitchen preparation benchtops, sink splashbacks, bathroom vanities, and laundry appliances. The extra 300mm of horizontal width compared to a standard 600mm square window lets in significantly more natural daylight and provides a broader outdoor view while still preserving wall space above and below the frame. When closed, the sash pulls tightly against full-perimeter compression weather seals, delivering an airtight seal that improves thermal performance and blocks outside street noise more effectively than traditional sliding window frames.

Technical Specifications & Features

• Dimensions: 600mm height x 900mm width (H600 x W900 overall frame size).

• Frame Profile: Heavy-duty Australian architectural aluminium engineered with reinforced chambers to prevent twisting, frame rattling, and structural deflection under high wind loads.

• Glazing Options: Supplied standard with clear toughened safety glass. Configurable upgrades include Satinlite Obscure glass for bathroom and toilet privacy, Grey Tint for glare reduction, Low-E glass for improved thermal efficiency, and Double Glazing for superior acoustic and thermal insulation.

• Colour Finishes: Available in Pearl White, Custom Black, or Custom Colour powder-coated finishes formulated to resist chalking, peeling, and fading under harsh Australian sun.

• Screen Options: Custom insect Flyscreens, Diamond Grille security screens, or high-tensile Stainless Steel Security Screens fitted neatly to the interior frame for easy cleaning and maintenance.

• Hardware & Operation: Fitted with a heavy-duty, corrosion-resistant chain winder mechanism and integrated sash locking system for smooth outward adjustment and dependable home security.

• Weatherproofing: Full-perimeter compression weather seals and engineered internal drainage channels provide maximum protection against wind-driven rain, dust, and air infiltration.

Built for Australian Climate & Lifestyle

We engineer this H600 x W900 aluminium awning window to perform reliably across harsh Australian weather conditions and high-moisture indoor environments. Unlike timber window frames that can absorb moisture, swell, warp, or rot when exposed to steamy bathrooms or laundry humidity, our powder-coated aluminium profiles maintain their structural integrity and clean surface finish over decades of daily operation.

The top-hung outward-opening geometry provides outstanding resistance to wind loads and driving rain. Because the sash compresses firmly against continuous rubber perimeter gaskets when wound shut, this window delivers superior acoustic insulation and energy efficiency. Whether your property faces coastal salt air or hot western Sydney summers, the heavy-duty winder mechanism and powder-coated frame ensure trouble-free operation year after year.

How to Configure Your H600 x W900 Awning Window

You can customise every functional aspect of your awning window directly on this page to match your architectural plans. For contemporary residential builds and modern kitchen extensions, Custom Black powder coating creates a crisp, architectural outline around the window opening. Traditional brick or rendered properties often look best with Pearl White for a clean, classic aesthetic.

Glazing selection is particularly important for this landscape window format. If you are installing an H600 x W900 awning window in a ground-floor bathroom, toilet, or ensuite, upgrading to Satinlite Obscure toughened glass provides complete visual privacy from outside while still flooding the room with natural daylight. For windows positioned above sunny western kitchen sinks, selecting Low-E glass or Double Glazing reduces heat transfer and glare significantly. Because awning windows open outward, all insect screens and security screens are fitted internally. This clever layout allows you to operate the chain winder without ever having to remove the screen, keeping your home secure and insect-free.

Certified Standards & Quality Guarantee

At New Age Construction Group, every aluminium window and door we manufacture complies with Australian Standard AS 2047. This certification guarantees tested wind resistance, structural deflection resistance, and water penetration resistance for residential building compliance across Australia.

We manufacture our aluminium windows at our Smeaton Grange base in NSW and deliver Australia-wide. Whether your project is in Sydney, Melbourne, Brisbane, Perth, Adelaide, or regional areas, you receive reliable trade-quality products ready for straightforward installation.

Frequently Asked Questions

Where is an H600 x W900 awning window commonly installed? This landscape format is most popular above kitchen splashbacks and prep benchtops, as well as in bathrooms, ensuites, laundries, and garages. The 900mm width lets in broad natural light, while the 600mm height fits neatly between cabinetry and plumbing fixtures.

What rough stud opening size do I need for an H600 x W900 awning window? Your carpenter or builder should prepare a framed opening approximately 20mm taller and 40mm wider than the window frame. For this unit, a rough stud opening of 620mm height by 940mm width allows adequate room for squaring, plumbing, and packing during installation.

How do screens work with chain winder awning windows? Because the window sash opens outward from the bottom, all insect flyscreens and stainless steel security screens are fitted to the interior side of the window frame. You can access and turn the chain winder easily through the designated winder opening in the screen frame without removing the screen.

Order Your Custom Awning Window Today

Ready to bring natural light and wet-weather ventilation into your home? Choose your preferred frame colour, glass type, and internal screen upgrades above to view your instant price. For custom dimensions or bulk trade orders for an upcoming build, contact the New Age Construction Group team today.
