Awning Window | H900 x W600 | Pearl White / Clear / No Screen / 100m Reveal

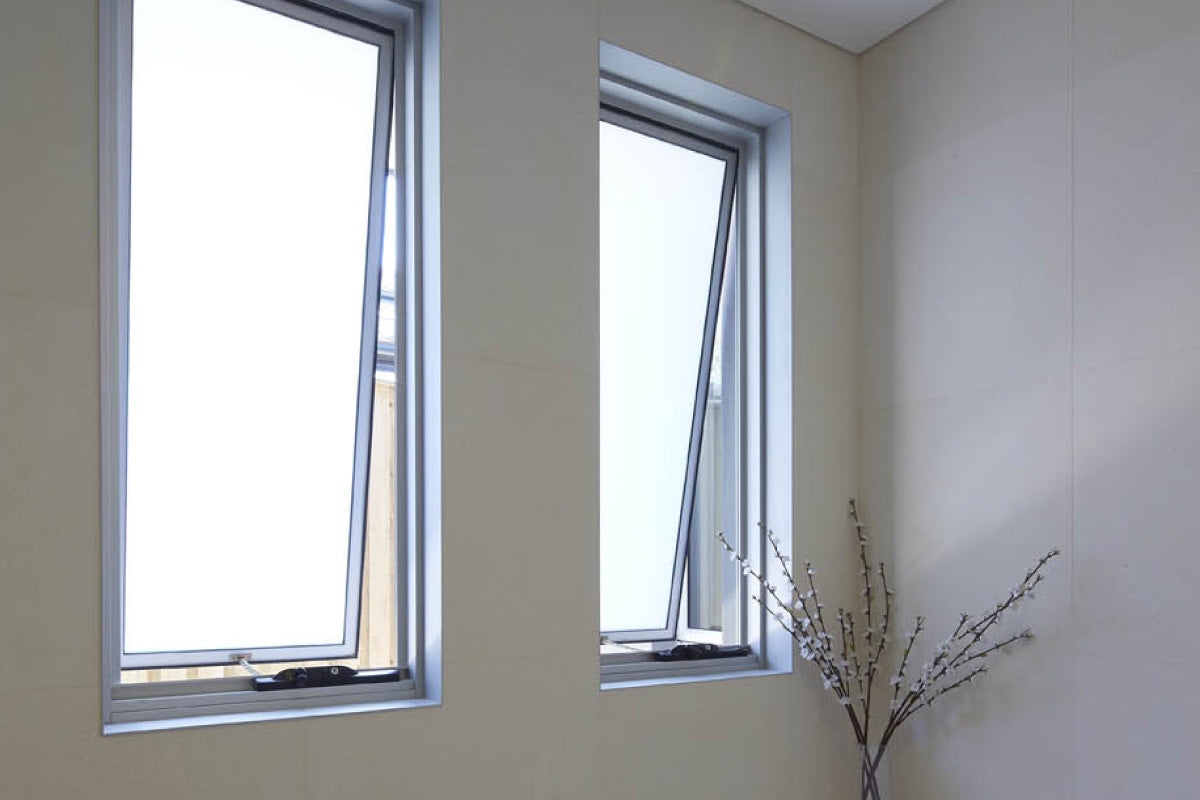

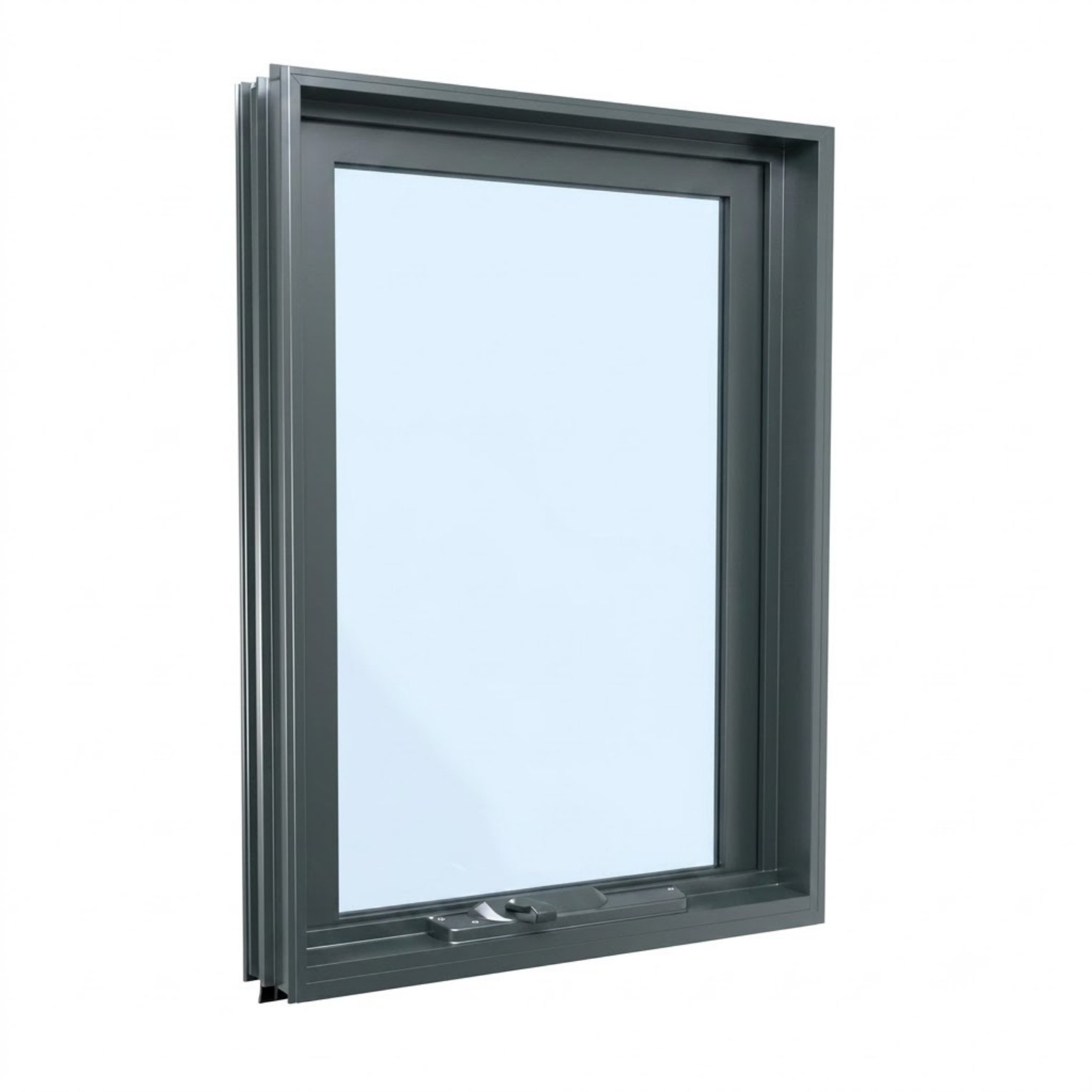

Enjoy a perfect blend of crisp modern style and reliable weather protection with this Premium Aluminum Awning Window. Engineered with a top-hinged sash that swings outward from the bottom, this H900mm by W600mm vertical configuration provides excellent ventilation while acting as a built-in canopy to keep unexpected rain from entering your home.

Finished in a striking, factory-applied Pearl White powder coat and fitted with crystal-clear glass, this awning window is built with a pre-installed 100mm timber reveal for a fast, flush, and seamless drop-in installation directly into your structural timber or steel frame pocket.

Advanced Engineering & Premium Operation

This window setup includes a premium, industry-trusted Doric Chain Winder system as standard, ensuring smooth, effortless, and precise opening control. Built with a signature designer beveled edge frame, the profile utilizes a fully integrated internal hinge mechanism hidden entirely within the frame cavity to maintain sharp, uncompromised architectural lines.

Full perimeter weather piles and specialized commercial-grade seals line the frame to minimize air filtration, drive out ambient street noise, and prevent drafts. The entire assembly has been rigorously tested to meet or exceed strict Australian regulatory benchmarks for wind load, water penetration, acoustics, and bushfire protection.

Key Features & Benefits:

• Sleek Pearl White Finish: Coated in a durable, high-end Pearl White powder coat that resists fading, scratching, and weathering while brightening up your interiors.

• Pre-Fitted 100mm Timber Reveal: Supplied with a structural 100mm wood reveal, saving valuable installation time on-site and ensuring a solid, square anchor.

• Premium Doric Chain Winder: Features an ergonomic, smooth-gliding winder that holds the sash firmly in place at any opening angle, even during windy conditions.

• Streamlined No-Screen Frame: Supplied without an internal insect screen, keeping your glass sightline completely clear, open, and uninterrupted.

• Concealed Internal Hinge Design: Engineered with heavy-duty hinges tucked fully inside the frame channel to create a clean, minimalist profile face.

• Eco-Friendly & Energy Efficient: Crafted from 100% recyclable architectural aluminum. The native frame engineering easily accepts advanced eco-friendly glazing, such as Low-E glass or 10.5mm acoustic/thermal glass, without bulky frame add-ons.

• Upgraded Thermal Performance: Upgrading older residential glazing profiles to this high-performance framework can boost your property’s overall energy efficiency by 2 to 2.5 stars.

Technical Specifications:

• Frame Dimensions: 900mm (Height) x 600mm (Width)

• Pre-Fitted Component: 100mm Structural Timber Reveal

• Frame Finish & Color: Premium Pearl White Powder Coat

• Glass Profiling: Clear Glazing Configuration

• Screen Option: No Screen (Clear Sightline)

• Winder Hardware: Premium Doric Chain Winder System Included

• Required Stud Opening Size (Reveal Windows Only): 950mm (Height) x 650mm (Width)

• Approximate Structural Weight: 11kg (Single Glazed) / 14kg (Double Glazed)

• Material: 100% Recyclable High-Grade Aluminum

• Application Room/Space: Bathrooms, Ensuites, Kitchens, Bedrooms, and Narrow Hallways

Pro Tip for Maximum Energy Efficiency: To optimize your heating and cooling savings, pair this high-performance window frame with an ideal home layout. Prioritize a North-facing orientation for your primary living spaces to utilize seasonal shading, and back it up with premium wall and roof insulation.

Contact Us for Custom Orders:

Do you need an alternative frame color, integrated flyscreens, customized sizes, or high-performance double-glazed glass? Our dedicated custom design team can manufacture bespoke awning and casement windows to fit your exact floor plan. Contact us today to receive a personalized project quote!
