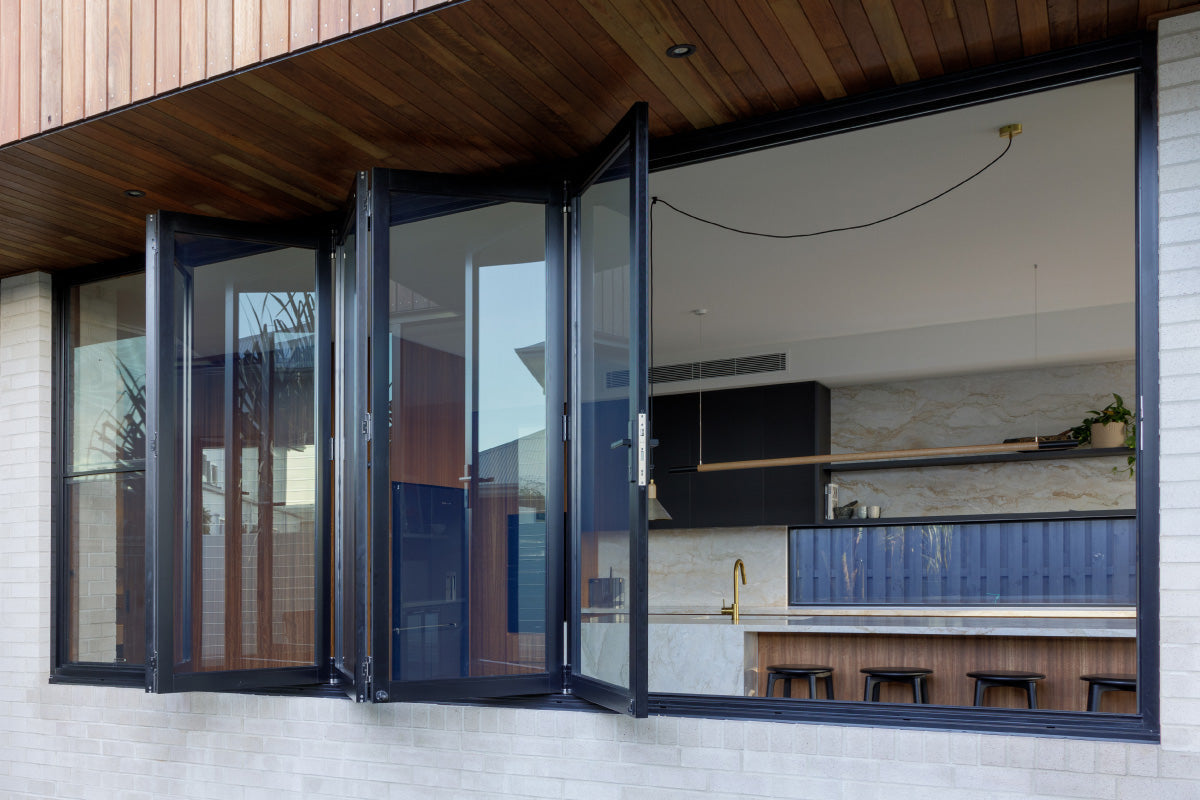

Premium Aluminum Bi-Fold Servery Window | Compact Scale H1200 x W1500

Remove the barriers between your indoor spaces and outdoor living areas with this Premium Aluminum Bi-Fold Servery Window. Measuring H1200mm by W1500mm, this high-end multi-fold system combines full-sized commercial perimeter framing with heavy-duty structural stiles. It is engineered specifically to provide a sleek, streamlined, and fluid connection between your kitchen, bar, or dining area and your outdoor deck, patio, or alfresco entertainment zones.

When open in fine weather, the panels fold neatly and stack completely out of the way, creating a wide, uninterrupted entertainment counter and maximizing natural airflow. When closed, the precision-engineered panels lock securely into place, transforming into a sturdy, highly weather-resistant structural wall that keeps your home fully insulated, safe, and protected.

High-Performance Architecture & Rolling Mechanics

This architectural multi-fold window is powered by an exclusive, industry-leading top-rolling hardware system that ensures smooth, effortless, and trouble-free operation across its entire span. It can be easily configured for either inward or outward stacking depending on your floor plan layout.

The bottom structure features specialized tyred floor guides that run quietly within a neatly concealed lower tracking channel, eliminating tripping hazards and keeping tracks protected from debris. To prevent bowing and structural deflection across the frame, a stabilizing center hinge keeps the panels perfectly aligned. Furthermore, the system includes an exclusive built-in height adjustment mechanism, allowing for simple vertical leveling with a standard screwdriver over time as your building naturally settles.

Key Features & Benefits:

• Seamless Multi-Fold Opening: Stacks panels completely out of the way to deliver a beautiful indoor-outdoor counter transition across a practical 1500mm span.

• Premium Top-Rolling Operation: Utilizes high-performance architectural rollers for a weightless glide and continuous, jam-free panel movement.

• Concealed Tyred Floor Guides: Bottom guides glide effortlessly inside clean, recessed channels that sit flush within your countertop or sill setup.

• Advanced Weatherseal Technology: Outfitted with specialized commercial-grade weather seals to lock out wind, rain, and drafty air when the window is fully closed.

• Anti-Deflection Center Alignment: Features high-strength stabilizing hinges that prevent structural panel bowing, keeping the seals tight and tracks square.

• Versatile Glass Options: Available in a wide array of glass styles to meet your design needs, including standard clear, privacy-focused obscure (acid-etched), and high-performance Low-E thermal glass. All glass configurations can be upgraded to heavy-duty double glazing for maximum climate control.

Technical Specifications:

• Overall Frame Dimensions: 1200mm (Height) x 1500mm (Width)

• Required Stud Opening Size (Reveal Windows Only): 1230mm (Height) x 1550mm (Width)

• Approximate Structural Weight: 40kg (Single Glazed) / 52kg (Double Glazed)

• Hardware System: Premium Top-Rolling Mechanics with Vertical Height Adjustment

• Configuration: Multi-Panel Bi-Fold Stacking (Inward or Outward Stacking Supported)

Contact Us for Custom Orders:

Do you need a specific number of folding panels, custom powder-coated frame colorways, specialized dimensions, or premium double-glazed acoustic glass? Our architectural design team can customize heavy-duty bi-fold systems to fit your exact structural floor plan. Contact us today to receive a personalized project quote!
