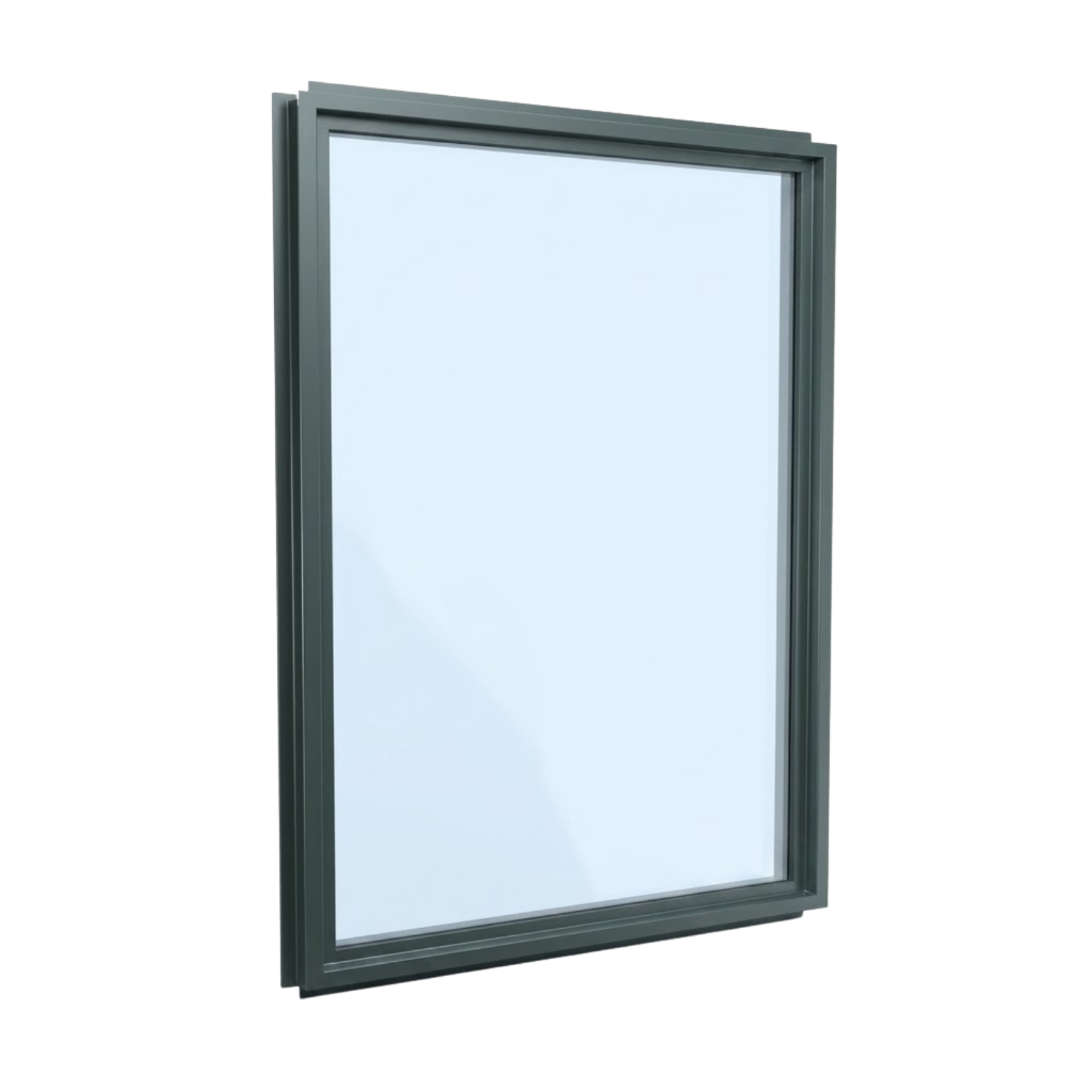

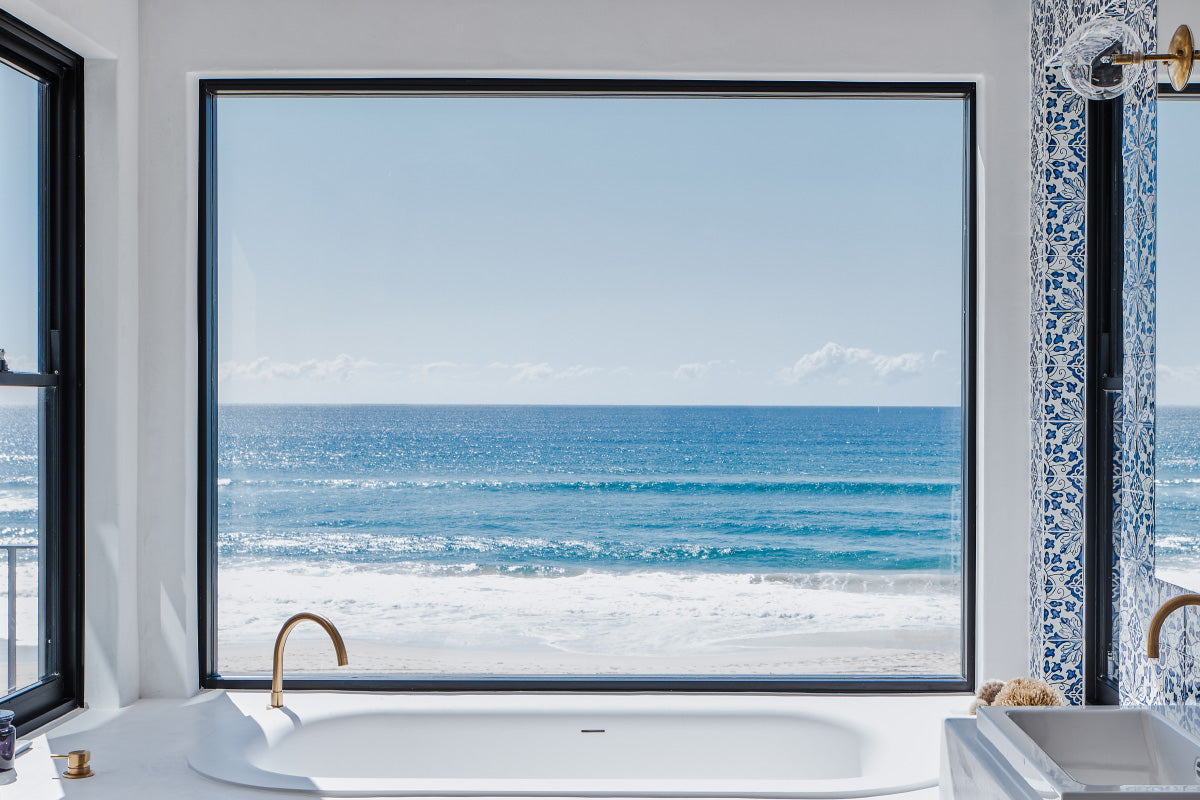

Premium Aluminum Fixed Architectural Window | H2100 x W1200

The Premium Aluminium Fixed Architectural Window (H2100mm x W1200mm) is a striking, full-height feature window designed to flood interiors with natural daylight while creating an unbroken visual connection to the outdoors. Standing at a standard doorway height of 2100mm with a generous 1200mm width, this vertical picture window pairs seamlessly alongside entry doors, bi-folds, and high-ceiling living spaces, or serves as a standalone architectural light well in stairwells and entry foyers. Engineered with rigid structural aluminium framing and deep glazing pockets, it delivers an absolute 100 per cent air and water seal with zero mechanical wear. Customise your frame finish from our architectural colour palette and choose from high-performance safety glass or double glazing. Manufactured in Smeaton Grange by New Age Construction Group to comply with AS 2047 Australian Standards and delivered securely Australia-wide.

Key Features & Architectural Benefits

• Full-Height Architectural Proportions: Standing 2100mm tall by 1200mm wide, this vertical fixed window aligns perfectly with standard Australian door heights (2100mm). It is a favourite among architects and builders for framing garden courtyards, illuminating double-height stairwells, or positioning alongside sliding and bi-fold doors to create expansive glass feature walls.

• 100 Per Cent Weather & Acoustic Sealing: Because fixed architectural windows feature no operable sashes, mechanical winder hardware, or sliding tracks, there are no functional gaps around the frame perimeter. This delivers an unbroken weather and acoustic barrier that permanently seals out cold winter draughts, street noise, dust, and heavy driving storm rain.

• Heavy-Duty Structural Rigidity: Supporting a large 2.52-square-metre vertical glass pane requires robust structural framing to prevent deflection under high wind loads. Our powder-coated structural aluminium profiles and deep glazing beads clamp heavy toughened or double-glazed sheets securely in place without sagging or bowing over time.

• Maintenance-Free Durability: Built from premium structural aluminium joinery that never absorbs seasonal moisture, guaranteeing the frame will never warp, swell, or rot under intense Australian sun and coastal salt spray.

Glazing & Performance Options

All panels are glazed with Toughened Safety Glass as standard to comply with Australian building codes (AS 1288) for full-height glazing, providing maximum impact resistance and thermal performance:

• Clear Toughened Safety Glass: Delivers maximum visible daylight transmittance and crystal-clear exterior viewing at an accessible price point.

• Grey Tint Toughened Glass: Cuts harsh afternoon glare and reduces solar heat gain during hot summer afternoons without making your indoor living area feel dark.

• Low-E Toughened Glass: Features a permanent, microscopic low-emissivity coating that reflects interior heating back inside during winter while slowing down radiant summer heat transfer.

• Satinlite Obscure Glass: Textured privacy glass that lets natural daylight stream in while completely obscuring visibility from neighbouring properties—ideal for ground-floor boundary walls or luxury bathroom light wells.

• Double Glazed Options: Available across clear, tinted, and Low-E variations to create an insulating dead air pocket that slashes thermal heat transfer and significantly cuts outside traffic noise.

Screen-Free Architectural Sightlines

Because fixed picture windows are non-operable, they require no insect flyscreens, diamond grilles, or woven stainless steel security screens. This gives you a completely unobstructed, screen-free view of your outdoor landscape. When paired alongside operable awning, louvre, or door joinery, our frame profiles match seamlessly to ensure your entire window and door package looks cohesive.

4. Technical Specifications Table
