Premium Louvre / Fixed / Louvre Window | H1225 x W2400

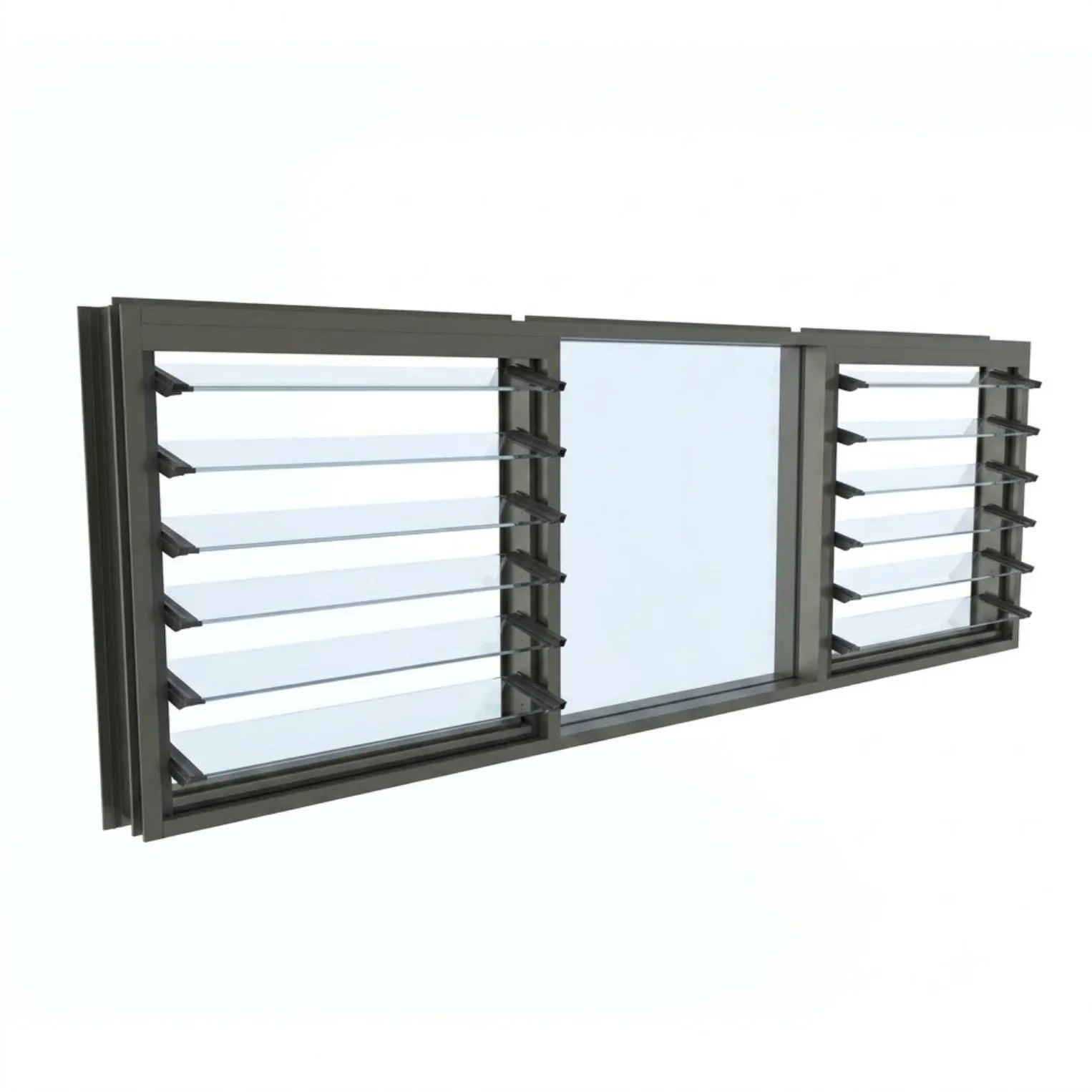

A Louvre / Fixed / Louvre combination window is an architectural hybrid frame that integrates a central stationary picture glass pane with two flanking bays of adjustable horizontal louvre blades within a single commercial aluminium frame. The H1225 x W2400 Premium Louvre / Fixed / Louvre Window from New Age Construction Group offers an ideal balance of framing design: an unobstructed central picture view combined with dual-sided, 100 percent natural airflow. Measuring 1225 millimetres high by 2400 millimetres wide, this mid-height 2.4-metre wide combination unit is engineered specifically for kitchen servery counters, dining room feature walls, master bedroom suites, and alfresco enclosures where you want clear outdoor sightlines above furniture heights alongside total control over cross-ventilation.

Central Picture Glass with Dual Louvre Ventilation and Servery Alignment

Standard window openings often force a choice between clear viewing glass and functional ventilation. Sliding windows divide your view with vertical sash profiles and only open to 50 percent capacity, while full louvre banks introduce multiple horizontal blade joins across your entire sightline. The Louvre / Fixed / Louvre configuration solves this by placing a large, unbroken fixed picture pane in the centre of the window frame. This gives you a clear viewing portal to gardens, pools, or landscape views while keeping the central sightline completely free of operating hardware or screen mesh.

In this mid-height 1225-millimetre format, the window sits comfortably above standard kitchen benchtops, dining sideboards, and bedroom bedheads. Flanking the central picture glass are two independent louvre galleries. Because louvre blades pivot open to a near-horizontal angle, these side bays deliver maximum airflow efficiency. Opening both side galleries creates a natural pressure differential across the room, pulling fresh air into the interior from one side while expelling warm air out the other. When closed, the stationary central glass and heavy-duty perimeter compression seals on the louvre galleries work together to deliver acoustic insulation and draft-free thermal performance during cold weather.

Specifications and Features

• Exact Dimensions: 1225mm Height x 2400mm Width, proportioned in a mid-height 2.4-metre wide combination layout designed for kitchen serveries and standard framing spans.

• Heavy-Duty Frame: Built from commercial-grade Australian aluminium engineered to support a wide multi-panel combination without twisting or structural deflection.

• Dual Gallery Hardware: Equipped with twin sets of corrosion-resistant, UV-stabilised louvre clips and smooth ergonomic operating levers for independent side ventilation.

• Central Fixed Pane: Fully sealed picture lite mounted directly into the perimeter frame for maximum daylight transmission and crystal-clear outdoor viewing.

• Glass Selection: Choose from 6mm toughened Clear glass, Grey Tint for solar heat and glare reduction, Low-E thermal glass, or Satinlite Obscure for privacy.

• Powder-Coated Finishes: Available in Pearl White, Custom Black, or Custom Colour finishes applied to resist fading, chalking, and blistering under intense Australian UV radiation.

• Flyscreen Compatible: External screening channels allow you to fit insect screens or stainless steel security mesh over the operable side bays without obstructing central viewing glass.

• Certified Compliance: Tested and manufactured to meet AS 2047 requirements for Australian residential and commercial building compliance.

Where to Use an H1225 x W2400 Louvre / Fixed / Louvre Window

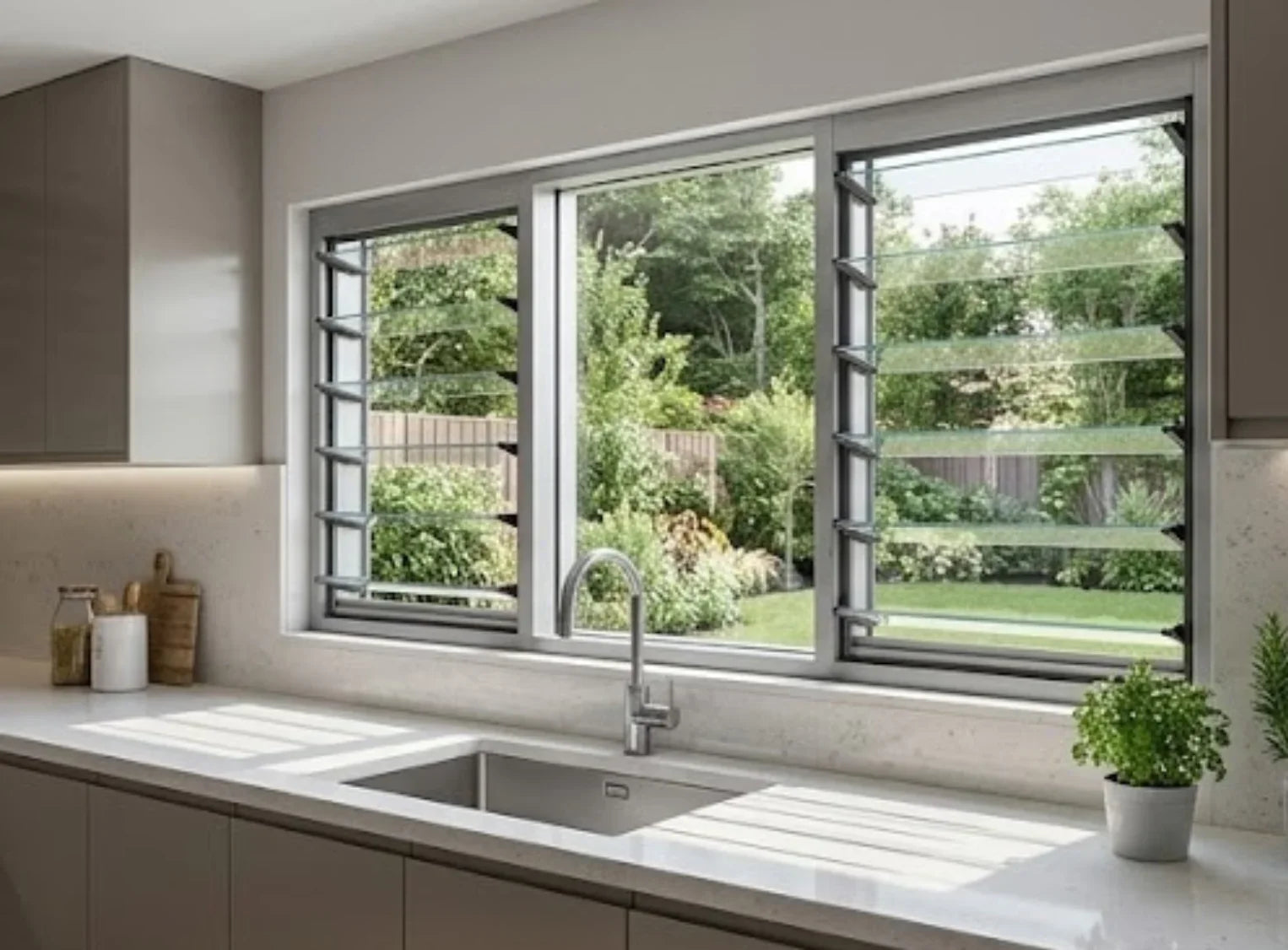

The 1225mm by 2400mm footprint makes this window one of the most practical combination specifications for modern Australian home design. A 2400-millimetre overall width aligns naturally with standard timber stud spacings and brickwork modules, making it a straightforward choice for both new builds and renovations. Its most popular residential application is as a kitchen servery window opening out to an outdoor barbecue deck or alfresco dining area. The 1225-millimetre height leaves generous headroom for passing food and drinks through the central picture window, while the side louvres provide continuous background ventilation.

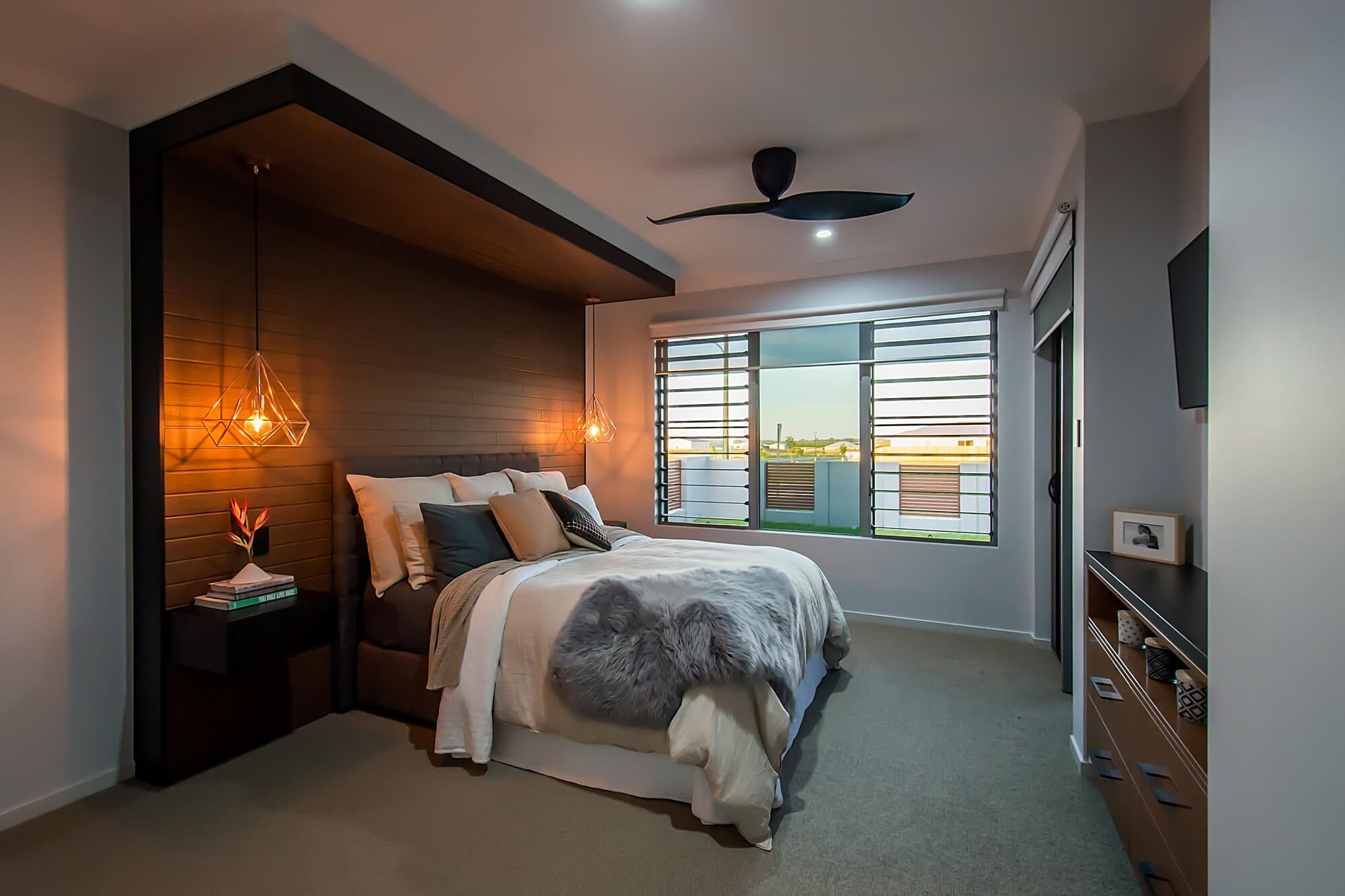

This combination format also excels in open-plan dining rooms, master bedrooms, and coastal sunrooms. Because the frame leaves ample wall space below the sill for furniture, cabinetry, or masonry nib walls, builders frequently install these windows across main living elevations to maximise cross-ventilation without needing floor-to-ceiling glass. Additionally, the ability to fit exterior flyscreens ensures you can leave the side louvres open on warm summer evenings without inviting insects into the house.

Configuring Your Custom Window

Every building site has unique solar orientation and thermal requirements, which is why we assemble each combination window to order based on your exact specifications. Start by selecting your frame colour to match your existing doors, cladding, and architectural profiles across the property.

Next, choose your glass package. Standard Clear glass provides maximum daylight transmission for shaded or south-facing elevations. For north or west-facing walls exposed to intense afternoon sun, choosing Grey Tint glass across both the fixed pane and louvre blades helps soften harsh glare and reduce internal heat build-up. For ground-floor boundary walls or street-facing elevations where privacy is needed, Satinlite Obscure glass lets in natural sunlight while blocking external sightlines. If energy efficiency is your primary goal, selecting Low-E glass or Double Glazing for the central fixed panel will reflect radiant heat and improve your home's overall WERS thermal rating.

Engineering, AS 2047 Compliance, and Climate Durability

Australian weather conditions can be uncompromising, ranging from coastal salt spray to scorching inland heat. Combination windows require high structural integrity where fixed framing sections meet moving louvre galleries. We manufacture our aluminium frames using thick-walled commercial profiles that comply with AS 2047 structural strength, wind deflection, and water penetration standards.

Every window is assembled, glazed, and inspected by our fabrication team before dispatch. Whether your job site is located in Sydney, Melbourne, Brisbane, or regional Australia, you receive a robust window system ready for straightforward installation into timber, steel, or brick-veneer frames.

Frequently Asked Questions

Why is a 1225x2400 combination window ideal for kitchens?

The 1225mm height sits neatly above standard kitchen benchtops while providing generous headroom for serving food through the central picture window. The side louvre bays allow you to quickly vent cooking steam and heat without obstructing your outdoor view.

Can I install screens on just the louvre sections?

Yes. The external screening channel allows you to fit insect flyscreens or security screens specifically over the side louvre galleries, leaving the central picture glass open and screen-free for an unobstructed outdoor view.

What is the standard lead time for custom combination windows?

Custom aluminium windows from New Age Construction Group are typically manufactured and dispatched within 12 to 15 working days. Every unit is made to measure and inspected for quality before shipping across Australia.

Order Your Custom Combination Window Today

Select your frame colour and glass type above to configure your custom window. Need advice on bespoke sizing, screening options, or bulk trade orders for your job site? Contact our team for expert guidance on your next build.
