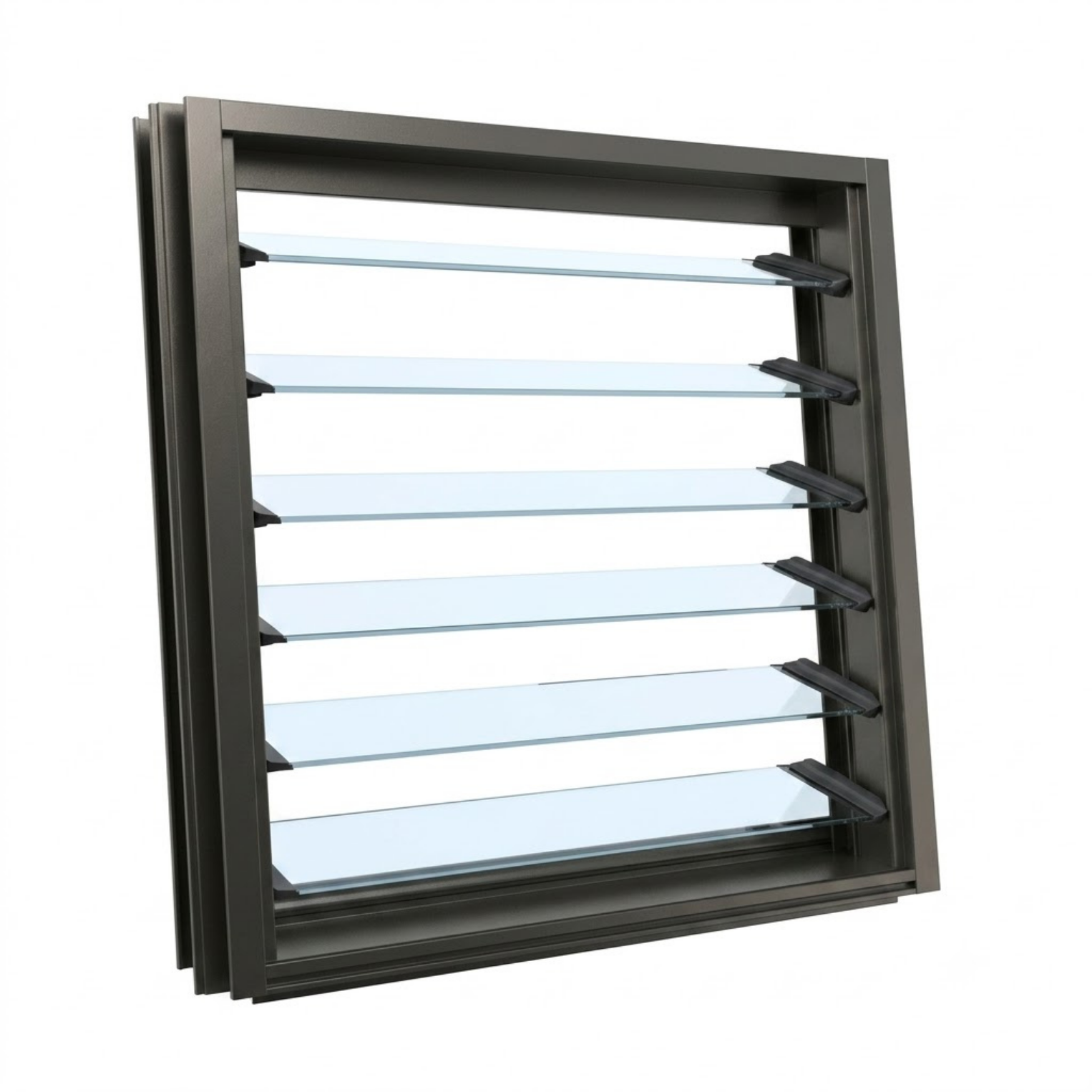

Louvre Window | H665 x W600

An aluminium louvre window measuring 665mm high by 600mm wide is a compact, high-ventilation residential architectural window engineered for bathrooms, ensuites, separate toilets, laundry rooms, powder rooms, and walk-in pantries. Standing at 665mm tall by 600mm wide, this H665 x W600 unit features horizontal tilting glass blades held within a precision-engineered gallery mechanism that opens to provide virtually 100% ventilation capacity. Built from heavy-duty Australian aluminium, it delivers outstanding airflow control, low-maintenance operation, and clean architectural sightlines for both new residential builds and structural home renovations.

Why Choose an H665 x W600 Louvre Window?

When you are designing compact wet areas or utility spaces where maximum fresh airflow and moisture clearance are essential, an H665 x W600 louvre window offers superior ventilation performance compared to standard sliding or awning window designs. While conventional windows only allow half or partial airflow through their opening area, louvre blades tilt open to horizontal, giving you unrestricted cross-ventilation across the entire frame opening. This makes it an exceptional choice for clearing steam, humidity, and indoor odours rapidly after showers or laundry cycles.

The compact proportions of 665mm height by 600mm width allow this window to fit neatly into tight architectural cavities where wall space is limited. It installs comfortably above bathroom tiling, toilet cisterns, laundry sinks, or high kitchen shelving while maintaining structural privacy. When closed, the overlapping blades lock securely into recessed weather channels, providing a reliable barrier against wind, driving rain, and exterior street noise.

Technical Specifications & Features

• Dimensions: 665mm height x 600mm width (H665 x W600 overall frame size).

• Frame & Gallery Profile: Heavy-duty Australian architectural aluminium frame integrated with corrosion-resistant gallery clips engineered for smooth blade rotation and long-term durability under high wind loads.

• Blade Options: Supplied standard with clear toughened safety glass blades. Configurable upgrades include Satinlite Obscure glass blades for bathroom and toilet privacy, Grey Tint blades for glare reduction, Low-E glass blades for improved thermal efficiency, or solid Aluminium blades for complete visual block-out.

• Colour Finishes: Available in Pearl White, Custom Black, or Custom Colour powder-coated finishes formulated to resist chalking, peeling, and fading under harsh Australian sun.

• Screen Options: Choose from No Screens, standard insect Flyscreens, Diamond Grille security screens, or high-tensile Stainless Steel Security Screens fitted securely to the frame without interfering with blade operation.

• Hardware & Operation: Fitted with an ergonomic, low-profile operating handle and dual-locking gallery mechanisms for precise airflow adjustment and dependable home security.

• Weatherproofing: Engineered weather-sealed gallery channels and tight blade overlap tolerances protect your interior rooms from wind-driven rain, dust, and draughts.

Built for Australian Climate & Lifestyle

We engineer this H665 x W600 aluminium louvre window to perform reliably across coastal, regional, and suburban Australian weather conditions. Unlike timber window frames that can absorb moisture, swell, warp, or rot when exposed to steamy bathrooms or coastal humidity, our powder-coated aluminium profiles and UV-resistant gallery components maintain their structural integrity over decades of daily use.

The tilting blade geometry allows you to direct airflow precisely where you need it, directing cooling breezes upward or downward depending on the season. Whether your property faces coastal salt air or hot western Sydney summers, the heavy-duty gallery mechanisms and powder-coated frame ensure trouble-free operation year after year.

How to Configure Your H665 x W600 Louvre Window

You can customise every functional aspect of your louvre window directly on this page to match your architectural plans. For contemporary residential builds and modern bathroom extensions, Custom Black powder coating creates a crisp, architectural outline around the window opening. Traditional brick or rendered properties often look best with Pearl White for a clean, classic aesthetic.

Blade selection is particularly important for this compact wet-area window format. If you are installing an H665 x W600 louvre window in a ground-floor bathroom, toilet, or ensuite, upgrading to Satinlite Obscure toughened glass blades provides complete visual privacy from outside while still flooding the room with natural daylight. For windows positioned in sunny western laundry nooks, selecting Grey Tint or Low-E glass blades reduces heat transfer and glare significantly. You can also add custom insect flyscreens or stainless steel security screens so you can leave your louvres open for continuous airflow with total peace of mind.

Certified Standards & Quality Guarantee

At New Age Construction Group, every aluminium window and door we manufacture complies with Australian Standard AS 2047. This certification guarantees tested wind resistance, structural deflection resistance, and water penetration resistance for residential building compliance across Australia.

We manufacture our aluminium windows at our Smeaton Grange base in NSW and deliver Australia-wide. Whether your project is in Sydney, Melbourne, Brisbane, Perth, Adelaide, or regional areas, you receive reliable trade-quality products ready for straightforward installation.

Frequently Asked Questions

Why choose a louvre window over an awning window for a small bathroom? A louvre window provides nearly 100% ventilation capacity when fully opened, whereas an awning window opens outward at an angle and restricts airflow. This makes louvre windows significantly faster at clearing steam, humidity, and odours in compact wet areas.

What rough stud opening size do I need for an H665 x W600 louvre window? Your carpenter or builder should prepare a framed opening approximately 20mm taller and 40mm wider than the window frame. For this unit, a rough stud opening of 685mm height by 640mm width allows adequate room for squaring, plumbing, and packing during installation.

Can I get obscure privacy glass blades for an H665 x W600 louvre window? Yes. You can select Satinlite Obscure toughened glass blades directly in the configuration menu above. This option provides full visual privacy from outside while allowing abundant natural daylight and fresh airflow into your bathroom or toilet.

Order Your Custom Louvre Window Today

Ready to bring maximum airflow and natural light into your home? Choose your preferred frame colour, blade type, and screen upgrades above to view your instant price. For custom dimensions or bulk trade orders for an upcoming build, contact the New Age Construction Group team today.
