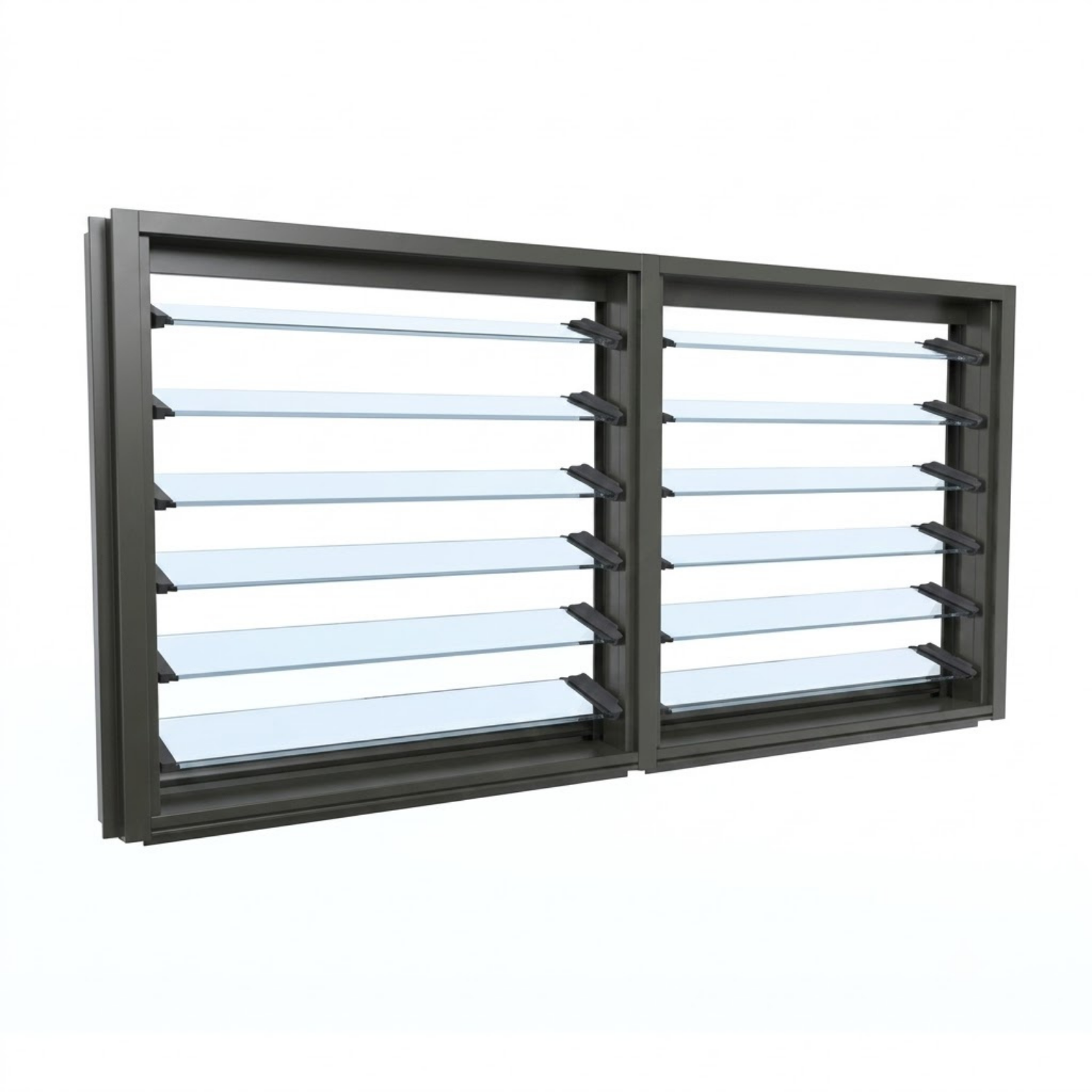

Premium Louvre Window | H1785 x W1200

A louvre window is an architectural ventilation system that houses adjustable horizontal glass blades within a robust commercial aluminium frame, delivering unmatched passive airflow and modern aesthetic appeal. The H1785 x W1200 Premium Louvre Window from New Age Construction Group offers an expansive floor-to-sill or mid-height ventilation profile designed specifically to capture maximum breezes while maintaining structural integrity across Australian residential and commercial properties. Measuring 1785 millimetres high by 1200 millimetres wide, this single-bay 1.8-metre tall window is engineered for bedrooms, bathrooms, stairwells, and main living areas where you want to flood the interior with natural daylight and 100 percent operable airflow.

Maximum 100% Airflow and Vertical Ventilation Control

The primary performance advantage of a louvre window over traditional sliding, awning, or double-hung windows is its capacity for complete, unhindered ventilation. While standard operable windows restrict airflow by covering half of the structural opening with fixed glass sashes, adjustable louvre blades pivot open to a near-horizontal angle. This allows exterior breezes to pass freely through the entire 1785mm by 1200mm aperture, making louvres the most effective passive cooling window format available in Australian building and construction.

In this generous 1.785-metre high single-bay configuration, the window provides a tall column of adjustable glass blades operated by a smooth, ergonomic gallery control lever. You can tilt the blades slightly open for gentle background ventilation during cooler months, or open them fully to maximize cross-ventilation during hot summer days. When closed, the toughened glass blades compress tightly against high-performance weather-sealed gallery channels, providing strong protection against driving rain, wind infiltration, and external noise.

Specifications and Features

• Exact Dimensions: 1785mm Height x 1200mm Width, proportioned in a tall single-bay format engineered for standard Australian wall framing spans.

• Heavy-Duty Frame: Built from commercial-grade Australian aluminium engineered to support a tall 1.785-metre vertical span without twisting, sagging, or structural deflection.

• Gallery Hardware: Equipped with corrosion-resistant, UV-stabilised gallery clips and a smooth ergonomic operating lever engineered for precise, rattle-free blade adjustment.

• Glass Selection: Choose from 6mm toughened Clear glass, Grey Tint for solar heat and glare reduction, Low-E thermal glass blades, or Satinlite Obscure glass for privacy.

• Powder-Coated Finishes: Available in Pearl White, Custom Black, or Custom Colour finishes applied to resist fading, chalking, and blistering under intense Australian UV radiation.

• Flyscreen & Security Screen Compatible: Designed with an external screening channel that allows you to fit standard insect screens or stainless steel security mesh without interfering with blade operation.

• Certified Compliance: Tested and manufactured to meet AS 2047 requirements for Australian residential and commercial building compliance.

Where to Use an H1785 x W1200 Louvre Window

The 1785mm by 1200mm footprint makes this window a versatile architectural feature for rooms requiring high-volume air exchange combined with privacy or specific vertical alignment. Its most frequent residential application is in master bedrooms and secondary bedrooms located on windward elevations, where capturing prevailing breezes is essential for natural cooling. The 1.2-metre width fits comfortably into standard bedroom wall framing, while the 1.785-metre height provides a striking vertical column of glass that enhances both exterior facade design and interior daylighting.

This tall single-bay louvre format also excels in stairwells, multi-level voids, and expansive bathrooms. In stairwells and voids, installing a tall louvre window near the upper level helps draw hot air up and out of the home through the stack effect. In larger bathrooms and ensuites, configuring an H1785 x W1200 window with Satinlite Obscure glass blades provides rapid steam extraction and abundant natural light while maintaining complete visual privacy. Additionally, the ability to fit exterior flyscreens ensures you can leave the window open overnight during summer without bugs entering the house.

Configuring Your Custom Window

Every building site has unique solar orientation and ventilation requirements, which is why we assemble each louvre window to order based on your exact specifications. Start by selecting your frame colour to match your existing doors, cladding, and architectural profiles across the property.

Next, choose your glass blade type. Standard Clear toughened glass provides maximum daylight transmission and crisp outdoor viewing for shaded or south-facing elevations. For north or west-facing walls exposed to intense afternoon sun, choosing Grey Tint blades helps soften harsh glare and reduce solar heat build-up. For ground-floor boundary walls, street-facing elevations, or bathroom installations where privacy is critical, Satinlite Obscure glass blades let in abundant natural light while blocking external sightlines. If thermal efficiency is a priority, selecting Low-E glass blades will help reflect radiant heat and improve internal temperature stability.

Engineering, AS 2047 Compliance, and Climate Durability

Australian weather conditions can be demanding, ranging from coastal salt spray to scorching inland heat. Multi-blade window systems require robust structural integrity to perform reliably over the lifespan of a home. We manufacture our aluminium frames using thick-walled commercial profiles that comply with AS 2047 structural strength, wind deflection, and water penetration standards.

Every window is assembled, glazed, and inspected by our fabrication team before dispatch. Whether your job site is located in Sydney, Melbourne, Brisbane, or regional Australia, you receive a robust window system ready for straightforward installation into timber, steel, or brick-veneer frames.

Frequently Asked Questions

Why choose a tall 1785x1200 louvre window for bedrooms and stairwells?

The tall 1785mm height provides a large vertical surface area for air intake and exhaust, making it exceptionally effective for cooling rooms and venting hot air from multi-level voids. The 1200mm width fits standard wall framing while delivering a generous volume of fresh air.

Can I fit flyscreens or security screens to this louvre window?

Yes. Our commercial louvre window frames feature an external screening track. You can easily install insect flyscreens or stainless steel security screens on the exterior of the window without preventing the interior glass blades from opening and closing fully.

What is the standard lead time for custom aluminium louvre windows?

Custom aluminium windows from New Age Construction Group are typically manufactured and dispatched within 12 to 15 working days. Every unit is made to measure and inspected for quality before shipping across Australia.

Order Your Custom Louvre Window Today

Select your frame colour and glass blade type above to configure your custom window. Need advice on bespoke sizing, screening options, or bulk trade orders for your job site? Contact our team for expert guidance on your next build.
