Louvre / Louvre Window | H665 x W1200

The H665 x W1200 aluminium louvre window is a wide, low-profile architectural window engineered for above-bench kitchen ventilation, high-wall placement, and modern residential extensions. Measuring 665mm high by 1200mm wide, this horizontal profile fits neatly above kitchen sinks, between cabinetry, or high on bedroom walls where standard windows would interfere with furniture placement. Built with a commercial-grade extruded aluminium frame and precision mechanical blade galleries, it gives Australian homeowners complete airflow control without sacrificing internal wall space or ground-floor security.

Key Features & Technical Specifications

• Dimensions: Exactly 665mm in height and 1200mm in width, offering a wide horizontal proportion that suits kitchen splashbacks, servery zones, and high-level ventilation openings.

• Frame Profile & Strength: Constructed from heavy-duty extruded commercial aluminium, engineered specifically to resist warping, twisting, and corrosion across wider 1200mm horizontal spans.

• Glass & Blade Options: Configurable with 102mm or 152mm glass blades in Clear, Grey Tint, Low-E thermal glass, Satinlite Obscure for privacy, and double-glazed variants for improved thermal efficiency.

• Colour Palette: Choose from hard-wearing architectural powder-coated finishes including Pearl White, Custom Black, or specify a Custom Colour to match your exact exterior cladding and roofing scheme.

• Screen & Security Compatibility: Designed with an integrated external frame recess that accepts No Screens, standard Flyscreens, Diamond Grille, or heavy-duty Stainless Steel Security Screens.

• Hardware & Locking Mechanism: Equipped with smooth-operating mechanical blade galleries and key-lockable handles that clamp glass blades firmly together when closed for reliable home security.

• Weather & Energy Performance: Built with dual perimeter weather stripping to prevent air draughts and water penetration during heavy rain, helping your property meet structural WERS and energy requirements.

Ideal Applications for Australian Homes

A 665mm high by 1200mm wide louvre window is one of the most practical horizontal dimensions in residential construction. Its short stature and generous width make it a favourite among architects and builders for kitchen splashback installations. Placed directly above a kitchen benchtop or sink, it allows steam and cooking odours to escape rapidly while framing outdoor garden views. Because louvre blades open horizontally to a full 90-degree angle, you get 100 percent ventilation capacity without any window sashes swinging inward over your prep space.

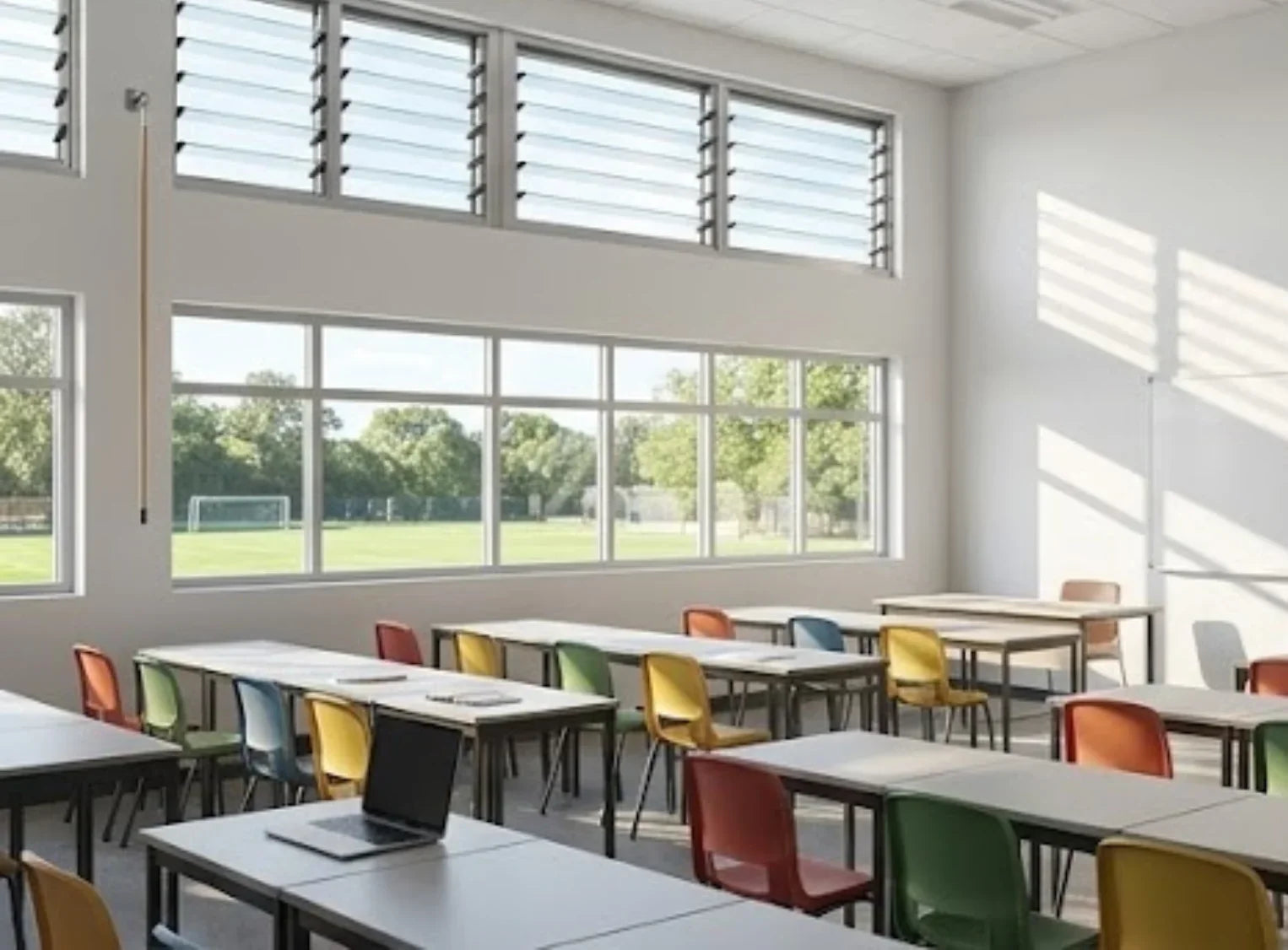

Another popular application for this dimension is high-level wall placement in bedrooms and living rooms. Since hot air naturally rises toward the ceiling, installing a 665mm high louvre window near the top of a wall creates an efficient thermal exit point during summer. This placement also protects your ground-floor privacy and leaves the lower wall entirely clear for bedheads, entertainment units, or sofas. For coastal homes across Sydney and regional New South Wales, the marine-grade aluminium frame stands up to salty sea air while capturing refreshing afternoon breezes.

Configuration Guidance: Customising Your Window

When ordering your H665 x W1200 louvre window online, step through our custom configuration options to suit your room layout and environmental needs:

1. Selecting Your Colour: Pearl White remains a classic choice for bright kitchens and traditional weatherboard homes, reflecting intense summer heat. Custom Black creates a sharp contemporary frame that looks exceptional against subway tiling, timber decking, and exposed brickwork. If your renovation requires an exact match to existing window frames, our Custom Colour service ensures a precise result.

2. Choosing Your Glass: Selecting the right glass depends on where the window is installed. For kitchen splashbacks receiving harsh afternoon sun, Low-E glass or Grey Tint reduces solar heat gain and glare while cooking. If the window is installed high on a bathroom or bedroom wall facing a neighbouring property, Satinlite Obscure glass lets daylight brighten the room while keeping outside eyes out.

3. Picking the Right Screen: Kitchen and bedroom windows require dependable insect protection. Standard flyscreens keep mosquitoes and flies out while you leave your louvres tilted open for everyday ventilation. If your window is accessible from the ground outside, upgrading to a Stainless Steel Security Screen provides a reinforced steel barrier so you can cool your home safely overnight.

Australian Standards, Engineering & Quality Guarantee

Every H665 x W1200 louvre window from New Age Construction Group is manufactured to comply with AS 2047, the mandatory Australian Standard for windows and external glazed doors. Wider 1200mm window openings require exact gallery alignment to prevent blade rattling and wind deflection. This is why our frames undergo rigorous testing for structural deflection, operating force, air infiltration, and water penetration resistance.

Manufactured at our Smeaton Grange facility in New South Wales, our windows are built using commercial-grade aluminium and quality hardware engineered for Australian weather conditions. Whether you are a trade builder requiring reliable site delivery or a homeowner managing a kitchen renovation, our windows arrive fully assembled and ready for installation. Standard lead times run between 12 to 15 working days to accommodate custom powder coating, precision blade cutting, and quality control prior to Australia-wide dispatch.

Frequently Asked Questions

Why is a 665mm high by 1200mm wide louvre window popular for kitchens? The 665mm height fits comfortably between standard kitchen benchtops and overhead cabinetry, making it ideal as a splashback or above-sink window. The 1200mm width provides generous natural light and excellent airflow to clear out steam and cooking smells quickly.

Can I install flyscreens or security screens on a horizontal louvre window? Yes. All our aluminium louvre windows are built with a dedicated screen recess that accommodates external flyscreens, Diamond Grille, or Stainless Steel Security Screens. The screens sit securely on the outside of the frame without interfering with blade opening or closing.

What is the manufacturing lead time for custom louvre windows? Custom aluminium windows from New Age Construction Group typically require a manufacturing lead time of 12 to 15 working days. This allows sufficient time for custom powder coating, glass sizing, and thorough quality inspection before shipping anywhere in Australia.

Order Your Custom Louvre Window Today

Upgrade your kitchen or living space with a wide, high-airflow architectural window. Configure your H665 x W1200 aluminium louvre window above by choosing your frame colour, glass type, and screen option, or contact our Smeaton Grange team for a custom trade quote today.
