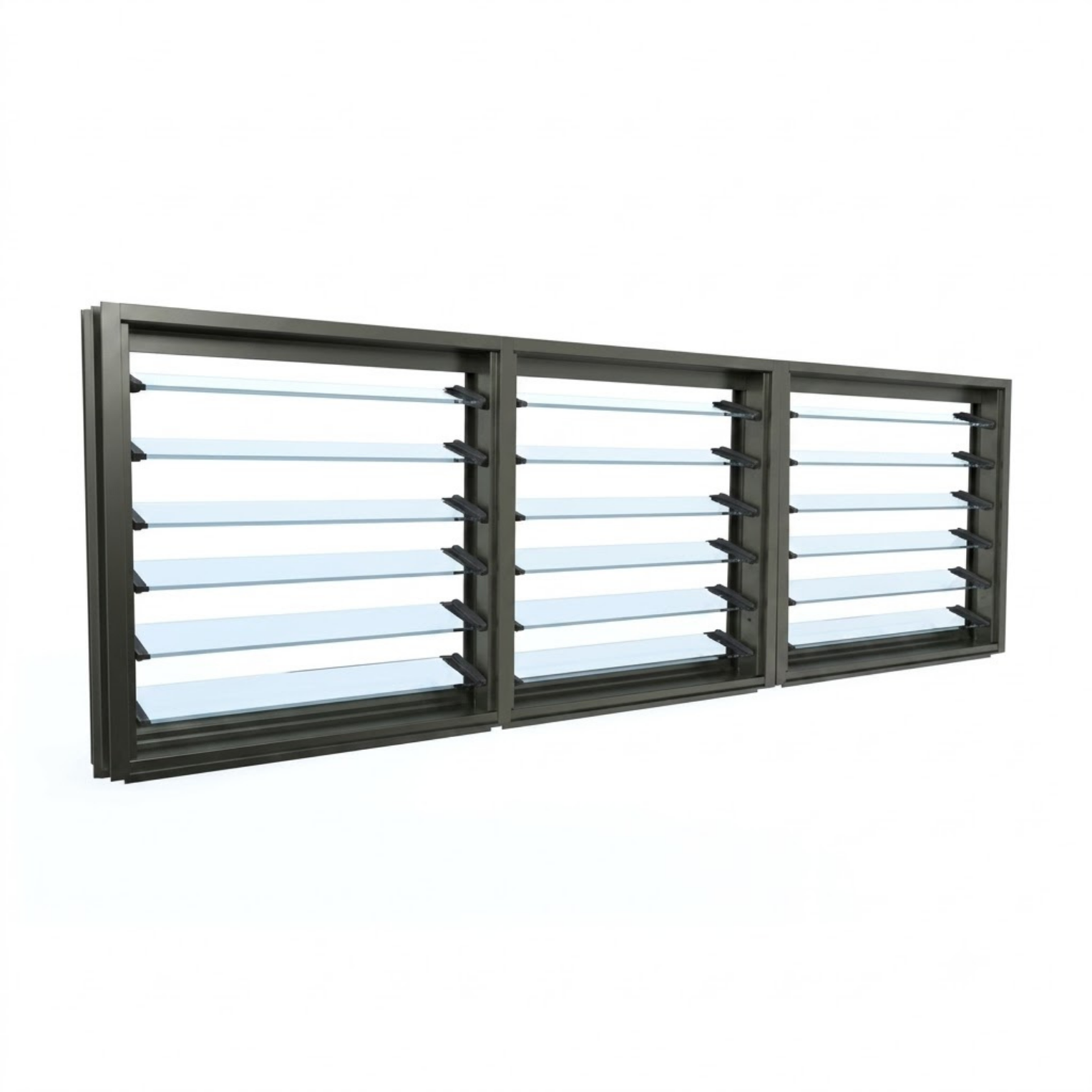

Premium 3-Panel Louvre Window | H1225 x W2700

A 3-panel louvre window is an expansive architectural ventilation system that houses three independent bays of adjustable horizontal glass blades within a single commercial aluminium frame. The H1225 x W2700 Premium 3-Panel Louvre Window from New Age Construction Group delivers maximum natural airflow, panoramic outdoor sightlines, and dependable structural weatherproofing for Australian residential and commercial builds. Measuring 1225 millimetres high by 2700 millimetres wide, this impressive 2.7-metre wide triple-bay window is engineered specifically for kitchen servery counters, dining room feature walls, alfresco entertainment zones, and sunroom half-walls where you want to capture full-width natural breezes above furniture or bench heights.

Maximum 100% Airflow and Servery-Height Triple-Bay Control

The primary advantage of a louvre window over standard sliding, awning, or double-hung windows is its capacity for 100 percent ventilation. While traditional operable windows only ever open half of their total glass surface area, adjustable louvre blades pivot open to a near-horizontal angle. This allows cool exterior airflow to travel through the entire 1225mm by 2700mm opening without structural obstruction, making louvres the most effective passive cooling window format available in Australian building and construction.

In this expansive 3-panel configuration, the 2.7-metre frame width is divided into three equal operating bays. Each bay is equipped with its own heavy-duty, ergonomic gallery control lever, giving you complete zone-by-zone airflow management across the window. You can open the centre bay to pass food and drinks out to an outdoor dining deck, tilt the outer bays to gently circulate air through the room, or lock all three bays tightly closed during stormy weather. When shut, the toughened glass blades compress firmly against weather-sealed gallery channels, providing strong protection against driving rain, wind infiltration, and external street noise.

Specifications and Features

• Exact Dimensions: 1225mm Height x 2700mm Width, proportioned in a generous 2.7-metre wide 3-panel configuration engineered for kitchen serveries, dining rooms, and alfresco enclosures.

• Heavy-Duty Frame: Built from commercial-grade Australian aluminium engineered to support a wide 2.7-metre span without twisting, sagging, or structural deflection over time.

• Gallery Hardware: Equipped with corrosion-resistant, UV-stabilised gallery clips and smooth ergonomic operating levers engineered for precise, rattle-free blade adjustment.

• Glass Selection: Choose from 6mm toughened Clear glass, Grey Tint for solar heat and glare reduction, Low-E thermal glass blades, or Satinlite Obscure glass for privacy.

• Powder-Coated Finishes: Available in Pearl White, Custom Black, or Custom Colour finishes applied to resist fading, chalking, and blistering under intense Australian UV radiation.

• Flyscreen & Security Screen Compatible: Designed with an external screening channel that allows you to fit standard insect screens or stainless steel security mesh without interfering with blade operation.

• Certified Compliance: Tested and manufactured to meet AS 2047 requirements for Australian residential and commercial building compliance.

Where to Use an H1225 x W2700 3-Panel Louvre Window

The 1225mm by 2700mm footprint makes this window a standout architectural feature for homes designed around indoor-outdoor living and natural climate control. Its most popular application is as an expansive kitchen servery window. The 1225-millimetre height sits perfectly above standard kitchen benchtops and dining sideboards, while the 2.7-metre width creates a panoramic wall of glass that opens up the kitchen to outdoor entertainment decks, barbecues, and alfresco dining spaces.

This mid-height triple-bay louvre format also excels in open-plan dining rooms, sunroom half-walls, and coastal breezeways. Because the frame leaves ample wall space below the sill for furniture, cabinetry, or masonry nib walls, builders frequently install these windows across wide elevations to maximise cross-ventilation without needing floor-to-ceiling glass. Additionally, the ability to fit exterior flyscreens ensures you can keep all three bays wide open throughout summer evenings without bugs entering the home.

Configuring Your Custom Window

Every building site has unique solar orientation and airflow requirements, which is why we assemble each 3-panel louvre window to order based on your exact specifications. Start by selecting your frame colour to match your existing doors, cladding, and architectural profiles across the property.

Next, choose your glass blade type. Standard Clear toughened glass provides maximum daylight transmission and crisp outdoor viewing for shaded or south-facing elevations. For north or west-facing walls exposed to intense afternoon sun, choosing Grey Tint blades helps soften harsh glare and reduce solar heat build-up. For ground-floor boundary walls, street-facing elevations, or pool enclosures where privacy is critical, Satinlite Obscure glass blades let in abundant sunlight while blocking external sightlines. If thermal efficiency is a priority, selecting Low-E glass blades will help reflect radiant heat and improve internal temperature stability.

Engineering, AS 2047 Compliance, and Climate Durability

Australian weather conditions can be uncompromising, ranging from coastal salt spray to scorching inland heat. Large multi-panel window systems require genuine structural integrity to perform reliably over the lifespan of a home. We manufacture our aluminium frames using thick-walled commercial profiles that comply with AS 2047 structural strength, wind deflection, and water penetration standards.

Every window is assembled, glazed, and inspected by our fabrication team before dispatch. Whether your job site is located in Sydney, Melbourne, Brisbane, or regional Australia, you receive a robust window system ready for straightforward installation into timber, steel, or brick-veneer frames.

Frequently Asked Questions

Why is a 1225x2700 louvre window ideal for kitchen serveries?

The 1225mm height sits comfortably above standard kitchen benchtops while providing generous headroom for passing food and drinks through to an outdoor entertainment area. The expansive 2700mm width opens up the kitchen to alfresco spaces and provides maximum cross-ventilation.

Can I operate the three louvre bays independently?

Yes. Each of the three bays in this 2700mm wide window features its own ergonomic operating lever. This allows you to open one bay for a gentle breeze while keeping the remaining bays closed or tilted at a different angle.

What is the standard lead time for custom aluminium louvre windows?

Custom aluminium windows from New Age Construction Group are typically manufactured and dispatched within 12 to 15 working days. Every unit is made to measure and inspected for quality before shipping across Australia.

Order Your Custom 3-Panel Louvre Window Today

Select your frame colour and glass blade type above to configure your custom window. Need advice on bespoke sizing, screening options, or bulk trade orders for your job site? Contact our team for expert guidance on your next build.
