Premium 3-Panel Louvre Window | H1785 x W2700

A 3-panel louvre window is an expansive architectural ventilation system that houses three independent bays of adjustable horizontal glass blades within a single unified commercial aluminium frame. The H1785 x W2700 Premium 3-Panel Louvre Window from New Age Construction Group delivers maximum natural airflow, panoramic outdoor views, and dependable weatherproofing for modern Australian residential and commercial builds. Measuring 1785 millimetres high by 2700 millimetres wide, this substantial 2.7-metre wide triple-bay window is engineered specifically for open-plan living rooms, alfresco enclosures, coastal breezeways, and dining room feature walls where you want to transform stagnant indoor areas into fresh, naturally ventilated spaces.

Maximum 100% Airflow and Triple-Bay Architectural Control

The primary advantage of a louvre window over standard sliding, awning, or double-hung windows is its capacity for 100 percent ventilation. While standard operable windows only ever open half of their total glass surface area, adjustable louvre blades pivot open to a near-horizontal angle. This allows cool exterior breezes to flow through the entire 1785mm by 2700mm opening without structural obstruction, making louvres the most effective natural cooling window format available in Australia.

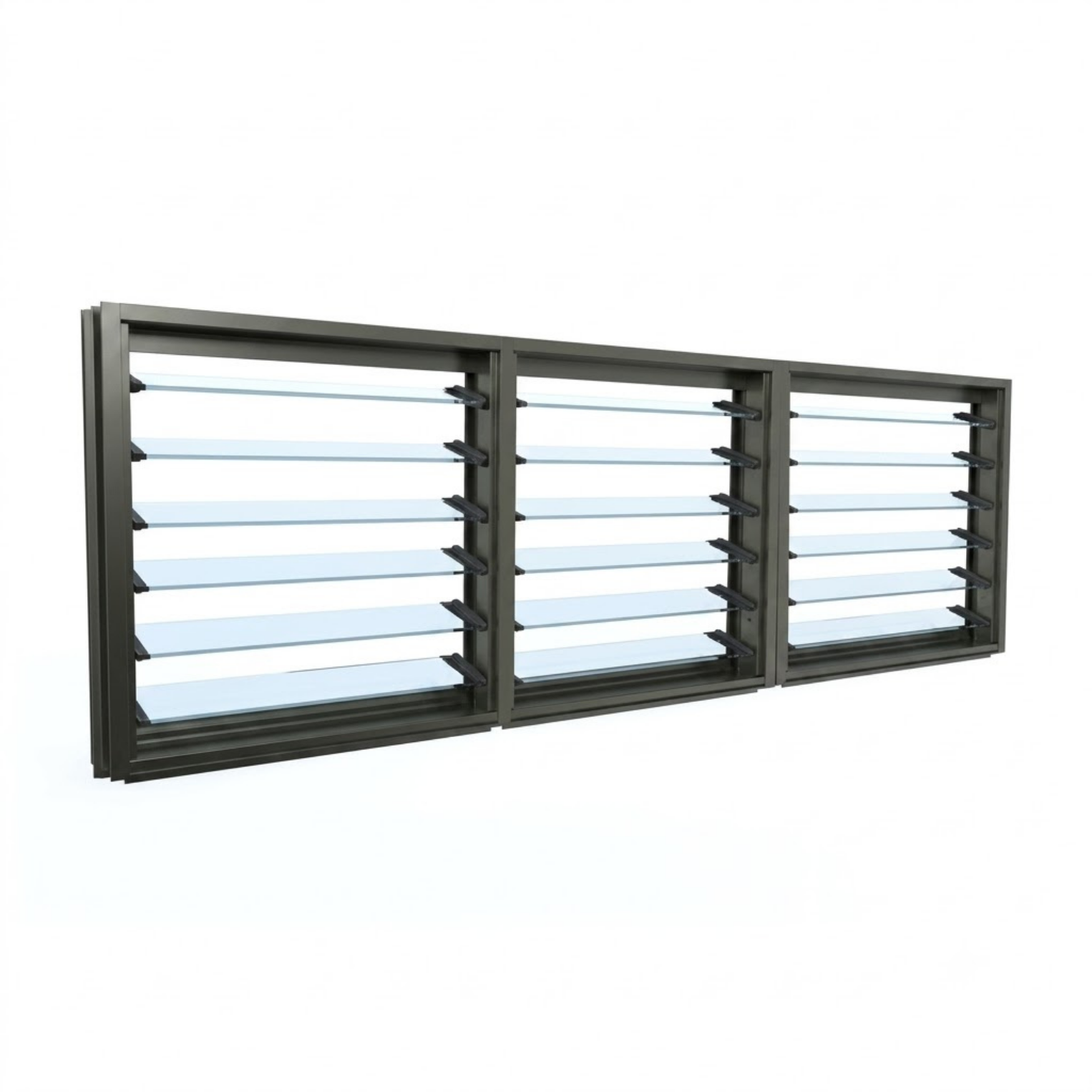

In this expansive 3-panel configuration, the 2.7-metre frame width is divided into three equal operating bays. Each bay is equipped with its own heavy-duty, ergonomic gallery control lever, giving you complete zone-by-zone airflow management across the window. You can open the windward bay to catch cooling afternoon sea breezes, tilt the centre bay to gently circulate air above dining areas, or lock all three bays tightly closed during storms. When shut, the glass blades compress firmly against weather-sealed gallery channels, providing strong protection against driving rain, wind infiltration, and external street noise.

Specifications and Features

• Exact Dimensions: 1785mm Height x 2700mm Width, proportioned in a generous 2.7-metre wide 3-panel configuration engineered for large living spaces and alfresco enclosures.

• Heavy-Duty Frame: Built from commercial-grade Australian aluminium engineered to support three wide bays without twisting, sagging, or structural deflection over time.

• Gallery Hardware: Equipped with corrosion-resistant, UV-stabilised gallery clips and smooth ergonomic operating levers engineered for precise, rattle-free blade adjustment.

• Glass Selection: Choose from 6mm toughened Clear glass, Grey Tint for solar heat and glare reduction, Low-E thermal glass blades, or Satinlite Obscure glass for privacy.

• Powder-Coated Finishes: Available in Pearl White, Custom Black, or Custom Colour finishes applied to resist fading, chalking, and blistering under intense Australian UV radiation.

• Flyscreen & Security Screen Compatible: Designed with an external screening channel that allows you to fit standard insect screens or stainless steel security mesh without interfering with blade operation.

• Certified Compliance: Tested and manufactured to meet AS 2047 requirements for Australian residential and commercial building compliance.

Where to Use an H1785 x W2700 3-Panel Louvre Window

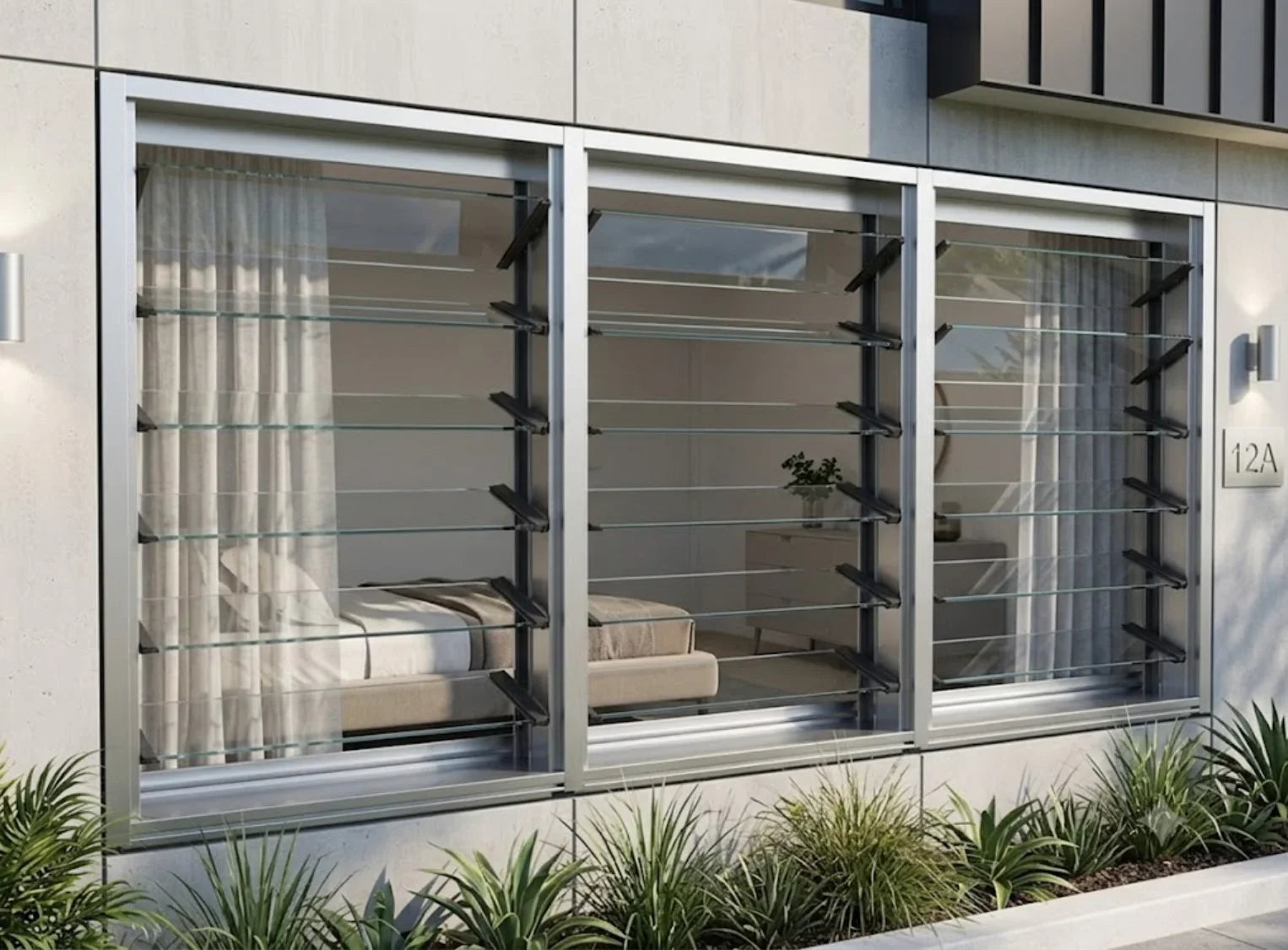

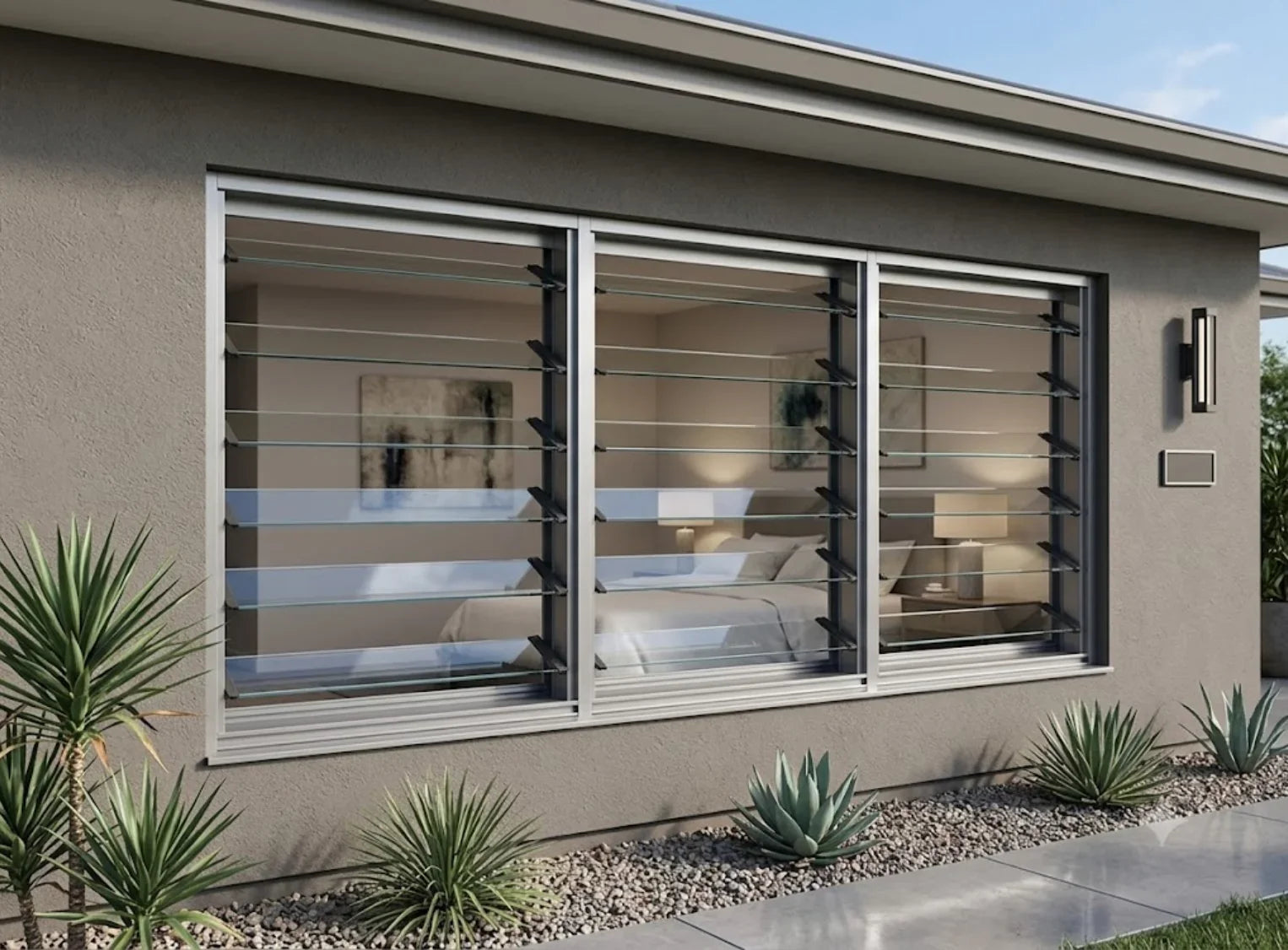

The expansive 1785mm by 2700mm footprint makes this window a standout architectural feature for homes designed around natural light and passive climate control. Its most popular application is across main living rooms, dining areas, and covered alfresco entertainment zones. The 2.7-metre width creates a panoramic wall of glass that opens your interior living spaces to outdoor gardens, pool areas, and coastal views while replacing hot, trapped air with fresh external airflow.

This triple-bay louvre format also excels in breezeways, indoor-outdoor sunrooms, and enclosed verandas. By installing an H1785 x W2700 louvre window on opposite sides of a home or open-plan living area, builders can create a cross-ventilation system that significantly reduces reliance on mechanical air conditioning during warm Australian summers. Additionally, the ability to fit exterior flyscreens ensures you can keep all three bays wide open on summer evenings without inviting insects into the house.

Configuring Your Custom Window

Every building site has unique solar orientation and airflow requirements, which is why we assemble each 3-panel louvre window to order based on your exact specifications. Start by selecting your frame colour to match your existing doors, cladding, and architectural profiles across the property.

Next, choose your glass blade type. Standard Clear toughened glass provides maximum daylight transmission and crisp outdoor viewing for shaded or south-facing elevations. For north or west-facing walls exposed to intense afternoon sun, choosing Grey Tint blades helps soften harsh glare and reduce solar heat build-up. For ground-floor boundary walls or indoor spa enclosures where privacy is critical, Satinlite Obscure glass blades let in abundant sunlight while blocking external sightlines. If thermal efficiency is a priority, selecting Low-E glass blades will help reflect radiant heat and improve internal temperature stability.

Engineering, AS 2047 Compliance, and Climate Durability

Australian weather conditions can be uncompromising, ranging from coastal salt spray to scorching inland heat. Large multi-panel window systems require genuine structural integrity to perform reliably over the lifespan of a home. We manufacture our aluminium frames using thick-walled commercial profiles that comply with AS 2047 structural strength, wind deflection, and water penetration standards.

Every window is assembled, glazed, and inspected by our fabrication team before dispatch. Whether your job site is located in Sydney, Melbourne, Brisbane, or regional Australia, you receive a robust window system ready for straightforward installation into timber, steel, or brick-veneer frames.

Frequently Asked Questions

Can I operate the three louvre bays independently?

Yes. Each of the three bays in this 2700mm wide window features its own ergonomic operating lever. This allows you to open one bay for a gentle breeze while keeping the remaining bays closed or tilted at a different angle.

Can I fit flyscreens or security screens to a 3-panel louvre window?

Yes. Our commercial louvre window frames feature an external screening track. You can easily install insect flyscreens or stainless steel security screens on the exterior of the window without preventing the interior glass blades from opening and closing fully.

What is the standard lead time for custom aluminium louvre windows?

Custom aluminium windows from New Age Construction Group are typically manufactured and dispatched within 12 to 15 working days. Every unit is made to measure and inspected for quality before shipping across Australia.

Order Your Custom 3-Panel Louvre Window Today

Select your frame colour and glass blade type above to configure your custom window. Need advice on bespoke sizing, screening options, or bulk trade orders for your job site? Contact our team for expert guidance on your next build.
