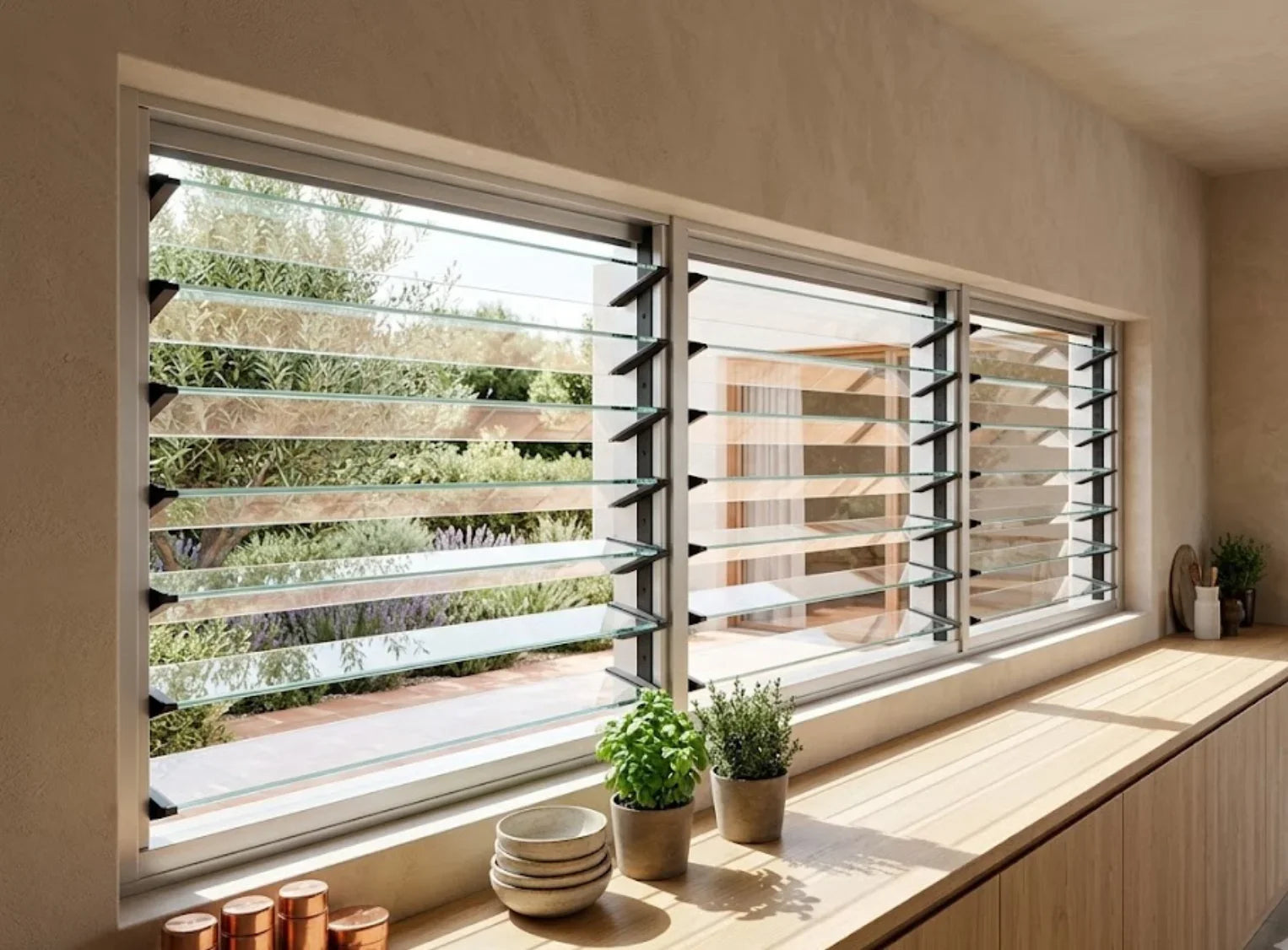

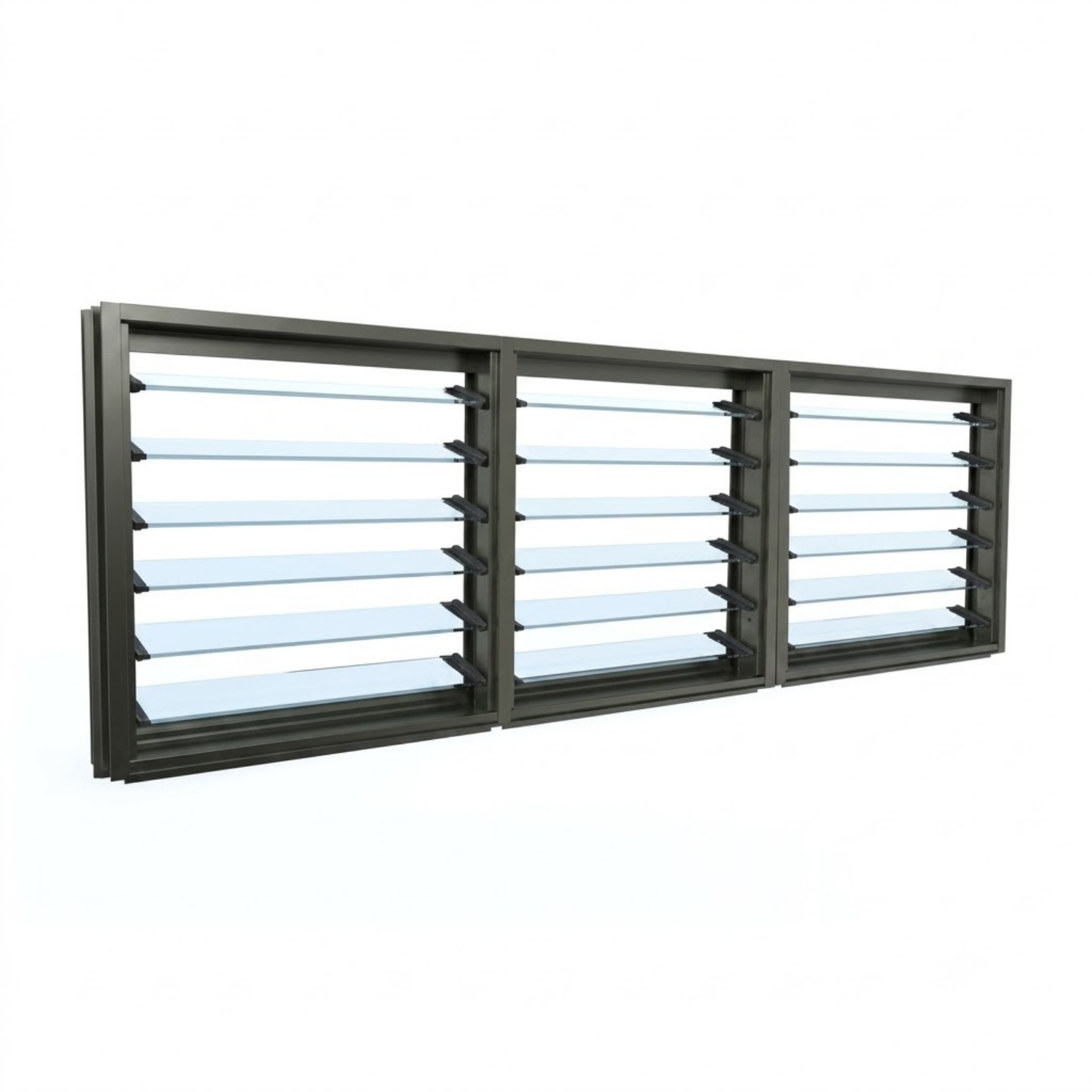

Premium Triple Louvre Window | H2065 x W2400

The Premium Triple Louvre Window (H2065mm x W2400mm) is a commanding floor-to-ceiling architectural statement engineered to deliver up to 100 per cent opening ventilation capacity across a versatile 2.4-metre span. Measuring 2065mm in height by 2400mm in width, this three-bay louvre system is the ultimate choice for coastal living rooms, enclosed verandahs, breezeways, and open-plan entertaining areas where maximum natural airflow and uninterrupted sightlines are paramount. Divided into three balanced 800mm-wide banks of adjustable 152mm toughened glass blades, the window features ergonomic, low-profile gallery handles with split-bank control—allowing you to open the top blades to release trapped rising heat while keeping lower blades securely closed. Customise your structural aluminium frame from our architectural powder-coated colour palette, select from premium safety glass blade tints, and add externally mounted flyscreens or marine-grade stainless steel security screens. Built in Smeaton Grange NSW by New Age Construction Group to comply with AS 2047 and AS 1288 Australian Standards, and delivered securely Australia-wide.

Key Features & Architectural Benefits

• Full-Height 2065mm x 2400mm Proportions: Spanning 2.4 metres wide by 2.065 metres tall, this full-door-height window proportion creates a seamless floor-to-ceiling glass wall effect. It is widely specified by architects and builders for luxury coastal renovations, alfresco transition walls, stairwell ventilation shafts, and high-airflow living rooms.

• 100% Unobstructed Airflow: Unlike sliding, awning, or double-hung windows that block at least half of the window opening, adjustable louvre blades rotate horizontally to open the entire surface area of the frame—capturing cooling cross-breezes from any direction to naturally flush heat from your home.

• Three-Bay Architectural Configuration: Divided into three balanced 800mm bays, the frame provides exceptional structural rigidity over 2.4-metre spans while allowing independent airflow control across different zones of your room.

• Independent Split-Bank Control: Equipped with dual low-profile operating handles per bay, allowing the upper and lower blade banks to be operated independently. Keep top blades angled open for secure, weather-protected night-time ventilation while lower blades remain locked shut for safety and privacy.

• Superior Weather Sealing & Wind Load Resistance: Designed with precision-moulded EPDM blade clips and interlocking weather gaskets that clamp blades tightly closed. Engineered to resist heavy wind loads and driving storm rain, eliminating rattles and air leakage when fully locked.

• Heavy-Duty Structural Aluminium Frame: Crafted from thick-gauge, powder-coated structural aluminium joinery engineered to support tall 2065mm vertical mullions without twisting, bowing, or sagging under extreme Australian weather conditions.

Glazing & Performance Options

Select from our premium 152mm Toughened Safety Glass blade range across all three bays to match your thermal, privacy, and aesthetic requirements:

• Clear Toughened Safety Glass: Maximises visible daylight transmittance and provides crystal-clear outdoor views when open or closed.

• Grey Tint Toughened Glass: Cuts harsh solar glare and reduces radiant heat gain during hot summer afternoons without darkening your interior living space.

• Low-E Toughened Glass: Features a permanent, microscopic coating that reflects interior warmth back inside during winter while reducing summer heat penetration.

• Satinlite Obscure Glass: Textured, light-diffusing privacy blades that allow bright daylight to stream in while preventing visibility from neighbours—ideal for boundary walls, bathroom enclosures, and pool privacy screens.

Integrated Insect & Security Screens

Because louvre blades tilt internally and operating handles are located on the interior gallery, protective screens for louvre windows mount cleanly to the external face of the frame, ensuring internal handles remain freely accessible at all times:

• External Flyscreens: Custom-fitted fibreglass mesh insect screens that keep flies, mosquitoes, and garden pests outside while allowing cooling breezes to flow unimpeded.

• Diamond Grille Screens: Classic powder-coated aluminium security grilles that deliver physical deterrence against intruders alongside everyday insect protection.

• Stainless Steel Security Screens: Heavy-duty, marine-grade woven stainless steel mesh that resists knife cutting, heavy impact, and coastal salt corrosion—providing maximum home security without obstructing your exterior views or airflow.

4. Technical Specifications Table
