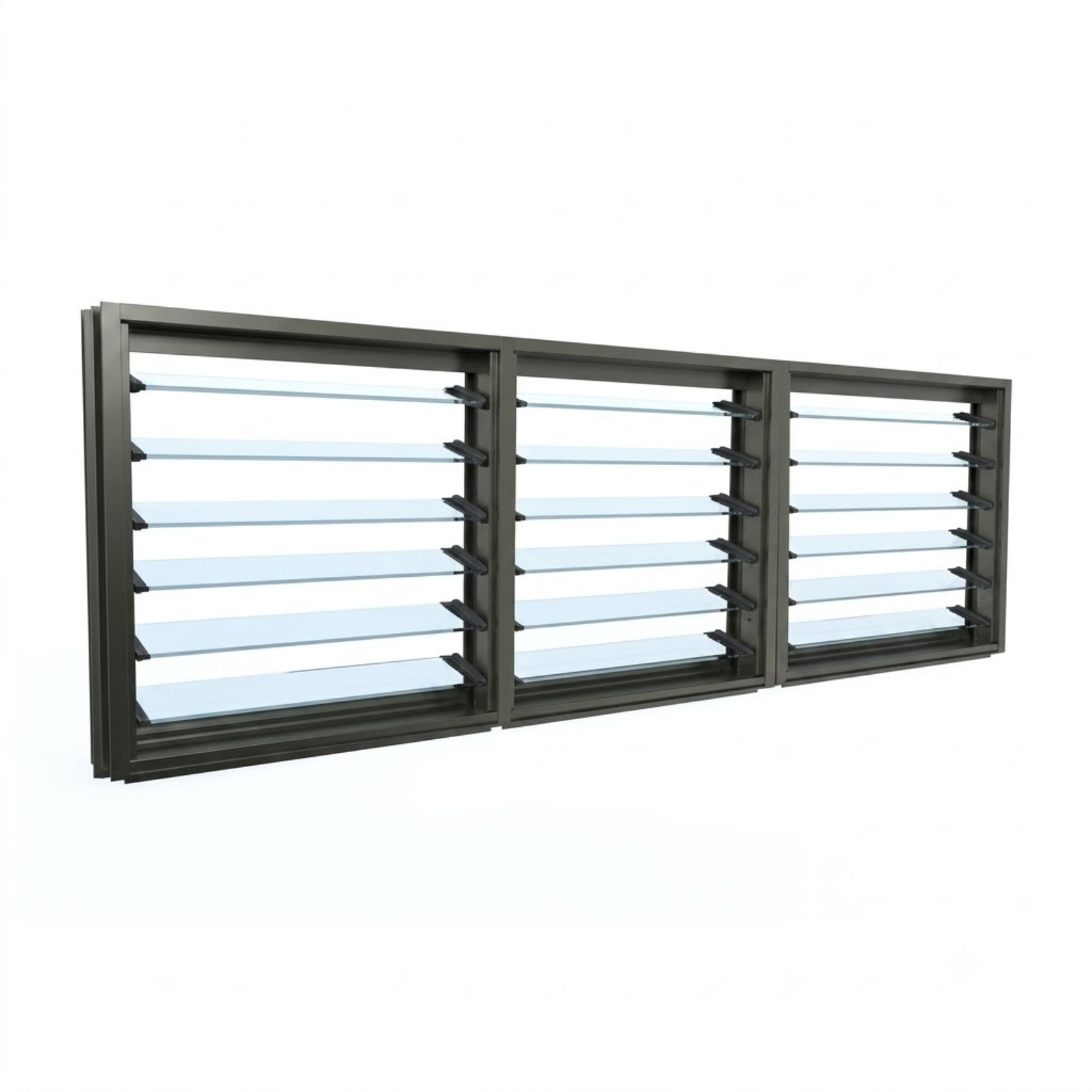

Premium 3-Panel Louvre Window | H665 x W2700

A 3-panel louvre window is an expansive architectural ventilation system that houses three independent bays of adjustable horizontal glass blades within a single commercial aluminium frame. The H665 x W2700 Premium 3-Panel Louvre Window from New Age Construction Group delivers maximum natural airflow, panoramic high-level sightlines, and dependable structural weatherproofing for Australian residential and commercial builds. Measuring 665 millimetres high by 2700 millimetres wide, this low-profile 2.7-metre wide triple-bay window is engineered specifically for clerestory highlight walls, bathroom privacy ventilation, kitchen splashbacks, and above-door transom placements where you want to exhaust hot rising air across a wide span without sacrificing wall space or interior privacy.

Clerestory High-Level Ventilation and Maximum 100% Airflow

The primary advantage of a louvre window over standard sliding, awning, or double-hung windows is its capacity for 100 percent ventilation. While standard operable windows only ever open half of their total glass surface area, adjustable louvre blades pivot open to a near-horizontal angle. This allows exterior airflow to travel through the entire 665mm by 2700mm opening without structural obstruction, making louvres the most effective passive cooling window format available in Australian building and construction.

In this low-profile 3-panel configuration, the expansive 2.7-metre frame width is divided into three equal operating bays. Installed high on a wall as a clerestory or highlight window, this format takes advantage of the natural stack effect: hot interior air rises to the ceiling and is rapidly exhausted through the open glass blades, while cooler air is drawn into the living spaces below. Each bay is equipped with its own heavy-duty, ergonomic gallery control lever, giving you complete zone-by-zone airflow management across the room. When shut, the toughened glass blades compress firmly against weather-sealed gallery channels, providing strong protection against driving rain, wind infiltration, and external street noise.

Specifications and Features

• Exact Dimensions: 665mm Height x 2700mm Width, proportioned in a wide, low-profile 2.7-metre 3-panel configuration engineered for clerestory walls and kitchen splashbacks.

• Heavy-Duty Frame: Built from commercial-grade Australian aluminium engineered to support a wide 2.7-metre span without twisting, sagging, or structural deflection over time.

• Gallery Hardware: Equipped with corrosion-resistant, UV-stabilised gallery clips and smooth ergonomic operating levers engineered for precise, rattle-free blade adjustment.

• Glass Selection: Choose from 6mm toughened Clear glass, Grey Tint for solar heat and glare reduction, Low-E thermal glass blades, or Satinlite Obscure glass for privacy.

• Powder-Coated Finishes: Available in Pearl White, Custom Black, or Custom Colour finishes applied to resist fading, chalking, and blistering under intense Australian UV radiation.

• Flyscreen & Security Screen Compatible: Designed with an external screening channel that allows you to fit standard insect screens or stainless steel security mesh without interfering with blade operation.

• Certified Compliance: Tested and manufactured to meet AS 2047 requirements for Australian residential and commercial building compliance.

Where to Use an H665 x W2700 3-Panel Louvre Window

The compact 665mm by 2700mm footprint makes this window a standout architectural feature for rooms requiring continuous ventilation combined with visual privacy. Its most popular residential application is as a high-level clerestory or highlight window in living rooms with cathedral or raked ceilings. Positioned near the roofline, the 2.7-metre width creates a panoramic ribbon of sky views while continuously venting trapped summer heat from the highest point of the home.

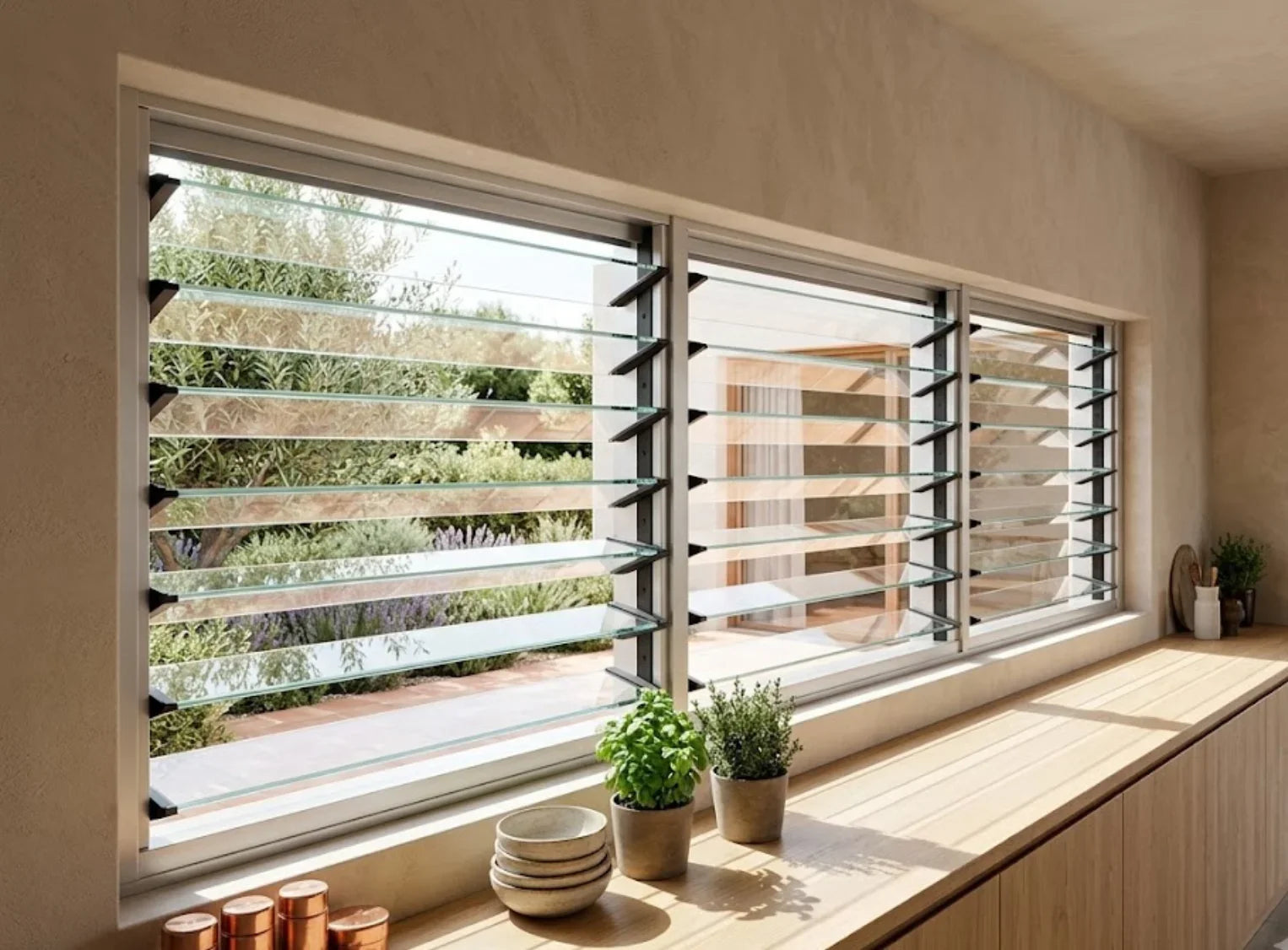

This low-profile triple-bay louvre format also excels as a panoramic kitchen splashback window or across master bathroom walls. Installed directly above kitchen preparation benches, it provides a stream of fresh air to clear cooking steam and heat without interfering with overhead cabinetry. In bathrooms and ensuites, configuring an H665 x W2700 window with Satinlite Obscure glass blades positioned above shower height provides continuous steam extraction and natural daylight while maintaining complete visual privacy from neighbours. Additionally, the ability to fit exterior flyscreens ensures you can keep all three bays open on summer evenings without insects entering the home.

Configuring Your Custom Window

Every building site has unique solar orientation and airflow requirements, which is why we assemble each 3-panel louvre window to order based on your exact specifications. Start by selecting your frame colour to match your existing doors, cladding, and architectural profiles across the property.

Next, choose your glass blade type. Standard Clear toughened glass provides maximum daylight transmission and crisp sky viewing for shaded or south-facing elevations. For north or west-facing high walls exposed to intense afternoon sun, choosing Grey Tint blades helps soften harsh glare and reduce solar heat build-up. For ground-floor boundary walls, street-facing elevations, or bathroom installations where privacy is critical, Satinlite Obscure glass blades let in abundant sunlight while blocking external sightlines. If thermal efficiency is a priority, selecting Low-E glass blades will help reflect radiant heat and improve internal temperature stability.

Engineering, AS 2047 Compliance, and Climate Durability

Australian weather conditions can be uncompromising, ranging from coastal salt spray to scorching inland heat. Large multi-panel window systems require genuine structural integrity to perform reliably over the lifespan of a home. We manufacture our aluminium frames using thick-walled commercial profiles that comply with AS 2047 structural strength, wind deflection, and water penetration standards.

Every window is assembled, glazed, and inspected by our fabrication team before dispatch. Whether your job site is located in Sydney, Melbourne, Brisbane, or regional Australia, you receive a robust window system ready for straightforward installation into timber, steel, or brick-veneer frames.

Frequently Asked Questions

Why is a 665x2700 louvre window ideal for clerestory and highlight walls?

The low-profile 665mm height fits neatly near ceiling lines and above overhead cabinetry, while the expansive 2700mm width allows you to rapidly exhaust rising hot air across a wide room span without sacrificing wall space below.

Can I operate the three louvre bays independently?

Yes. Each of the three bays in this 2700mm wide window features its own ergonomic operating lever. This allows you to open one bay for gentle background ventilation while keeping the remaining bays closed or tilted at a different angle.

What is the standard lead time for custom aluminium louvre windows?

Custom aluminium windows from New Age Construction Group are typically manufactured and dispatched within 12 to 15 working days. Every unit is made to measure and inspected for quality before shipping across Australia.

Order Your Custom 3-Panel Louvre Window Today

Select your frame colour and glass blade type above to configure your custom window. Need advice on bespoke sizing, screening options, or bulk trade orders for your job site? Contact our team for expert guidance on your next build.
