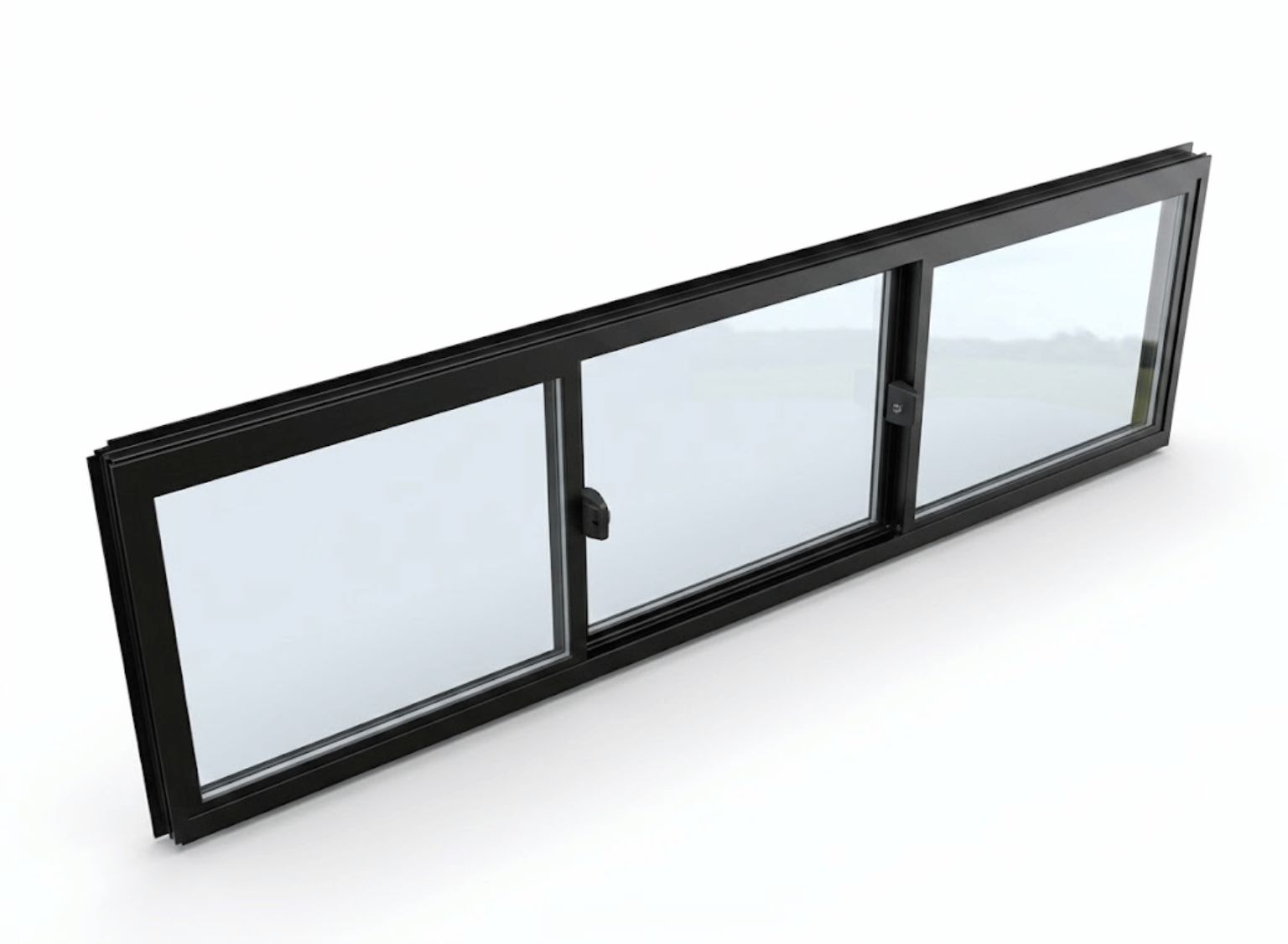

Premium 3-Panel Aluminium Sliding Window | H1200 x W1800

The H1200 x W1800 premium three-panel aluminium sliding window is a highly versatile 1.8-metre wide unit. It features a central fixed glass pane paired with two independently operable sliding end sashes. This specific slide, fixed, and slide layout provides a clear view through the middle of the frame while allowing you to control cross-ventilation from both sides. It serves as an exceptional choice for standard Australian bedrooms, dining spaces, and home offices where you want abundant natural light without dedicating an entire wall to glass.

The Architectural Advantage of the Three-Panel Split

Selecting the right window proportions is an essential part of residential design. At 1800mm wide, you have a substantial opening that can dramatically improve how a room feels. If you divide that 1.8-metre span into a standard two-panel sliding window, you end up with two 900mm wide glass squares. Those large panels can look quite dominant and visually heavy from the street.

By choosing a three-panel configuration, the space is divided into three neat, vertically oriented rectangles. This simple change completely alters the architectural proportion of the window. The eye is naturally drawn to the dedicated central picture pane. The smaller outer sliding sashes are also much lighter in weight. This weight reduction puts far less strain on the bottom tracking rollers. Your window will glide open effortlessly and require very little maintenance over its lifespan.

At 1200mm high, this rectangular format provides a generous viewing area while leaving highly practical wall space directly beneath the frame. You retain the ability to place furniture, install heating radiators, or run electrical wiring along the lower section of your wall without interference.

Key Features and Build Specifications

We engineer our aluminium sliding windows to provide absolute reliability. Every component is selected to ensure your home remains comfortable and secure under harsh weather conditions.

• Overall Dimensions: 1200mm exact outer frame height by 1800mm exact outer frame width.

• Frame Profile: Commercial-grade extruded aluminium designed for exceptional structural rigidity and minimal deflection.

• Operating Track: Smooth bottom-rolling hardware ensures the outer sashes glide open with minimal physical effort.

• Security Hardware: Integrated key-lockable handles on both sliding panels provide strong physical security against forced entry.

• Glass Options: Configure your unit with Clear, Grey Tint, Low-E, Satinlite Obscure, or highly efficient Double Glazed glass.

• Colour Selection: Finished in standard Pearl White, architectural Custom Black, or specify a Custom Colour.

• Screen Compatibility: External tracking securely holds standard Flyscreens, Diamond Grille, or Stainless Steel Security Screens.

• Weather Sealing: Premium perimeter rubber seals block out wind, dust, and coastal moisture when the sashes are locked closed.

Ideal Placements for Australian Homes

The 1.8-metre width is a staple in Australian residential construction because it aligns perfectly with standard timber framing practices. Builders and renovators frequently specify this exact frame for several key locations.

Primary and Secondary Bedrooms This window size is the absolute standard for modern bedrooms. It provides excellent morning light and a wide view of your yard. Because you can operate both ends of the window independently, you gain total control over the room temperature. You can lock one sliding sash slightly open at night to catch a cool breeze. The key-lockable handles keep the sash fixed in place so you can sleep comfortably with complete peace of mind.

Dining Rooms and Meals Areas A bright dining space feels instantly more welcoming. Installing this 1.8-metre window near a dining table creates a strong visual connection to your garden. During summer entertaining, you can open both outer panels simultaneously to flush hot air out of the house. The central fixed pane acts as a windbreak, stopping strong gusts from blowing directly across your dining table while still allowing fresh air to circulate through the room.

Home Offices and Studies A productive workspace requires excellent natural lighting to reduce eye strain. Placing this window above a long study desk provides a fantastic panoramic view. If your street is busy with traffic, you can upgrade the glazing to block out external noise, keeping your office quiet and focused.

Customising Your Glazing and Finish

Every property faces different environmental challenges. We build your windows to order so you get the exact performance you require. The glass you choose plays a massive role in your daily thermal comfort.

Standard Clear glass works perfectly for well-shaded walls or southern elevations. If your new window faces the harsh eastern morning sun or the brutal western afternoon sun, standard glass will trap the heat inside. We strongly recommend upgrading to Low-E glass or a Grey Tint for these highly exposed locations. Low-E glass features a microscopic, transparent coating that actively reflects solar heat back outside. It stops your rooms from overheating in summer and retains your interior heating during winter.

For the highest level of energy efficiency, select our Double Glazed units. Double glazing traps an insulating pocket of argon gas between two distinct glass panes. This creates a massive thermal barrier that significantly lowers your air conditioning bills. It also helps your home meet stringent Window Energy Rating Scheme (WERS) compliance standards required by modern building codes.

We protect all our aluminium frames with a tough powder coated finish that resists chalking and coastal corrosion. Pearl White remains a classic choice for traditional builds because it actively reflects heat. Custom Black delivers a bold, high-contrast frame that highlights contemporary architecture perfectly. Our Custom Colour service is available if you need to perfectly match existing window frames during a home extension.

Internal Security and External Screening

Because this is a sliding window, all protective screens sit on the outside track. The massive aesthetic advantage of a three-panel layout is that you only need to screen the two outer moving sections. Your large central picture window stays completely free of mesh. You get a crystal clear view of your property right in the middle of the frame.

Our window profiles are extruded with integrated external tracks to hold these screens securely. A standard Flyscreen keeps mosquitoes away during summer nights. If you want true security, upgrade to our Stainless Steel Security Screens. This heavy-duty woven mesh resists knife attacks and forced entry attempts. It allows you to leave both sides of your window wide open on a hot night while keeping your family totally secure inside.

Built to Meet Australian Standards

The local climate destroys cheap imported building materials very quickly. We engineer our products to survive extreme heatwaves, driving rain, and strong winds without warping or leaking. Every aluminium window we manufacture complies strictly with AS 2047 building standards. This certification guarantees your window design has passed rigorous laboratory testing for structural deflection, operating force, and water penetration resistance.

New Age Construction Group operates directly out of Smeaton Grange NSW. We proudly manufacture custom building materials and deliver them right across Australia. Whether your job site is located in Sydney, Melbourne, Brisbane, Perth, Adelaide, or a regional centre, we transport your custom windows safely to your door. You are investing in heavy-duty products engineered by an experienced local team who understands exactly what your environment demands.

Frequently Asked Questions

How does a three-panel sliding window open? The window features a fixed central glass panel and two sliding outer panels. When you open the window, the outer sashes glide inward along the bottom track and sit directly over the central fixed pane. This gives you clear ventilation openings on the far left and far right sides of the frame.

What is the lead time for a custom H1200 x W1800 window? We build this unit entirely to order based on your specific colour, glass, and screen choices. Our standard manufacturing lead time is 12 to 15 working days from the date of purchase. Our production team will keep you updated on the build progress and schedule a firm delivery date once the unit passes final quality control checks.

Can I install this window myself? While the window is supplied fully assembled and ready for installation, we strongly recommend using a licensed builder or a qualified carpenter. Proper framing, packing, and exterior flashing are critical to ensure the window remains square and completely watertight over its lifespan.

Secure Your Custom Window Order Today

The H1200 x W1800 premium three-panel aluminium sliding window delivers brilliant natural light, reliable security, and excellent ventilation control. Configure your perfect unit using the drop down menus on this page. Select your required glass type, pick your frame colour, and add your necessary exterior screens. Add the configured item to your cart for a fast, secure checkout. If you need technical advice on energy ratings, require a custom dimension, or want a detailed quote for a new house build, contact the expert team at New Age Construction Group today.
