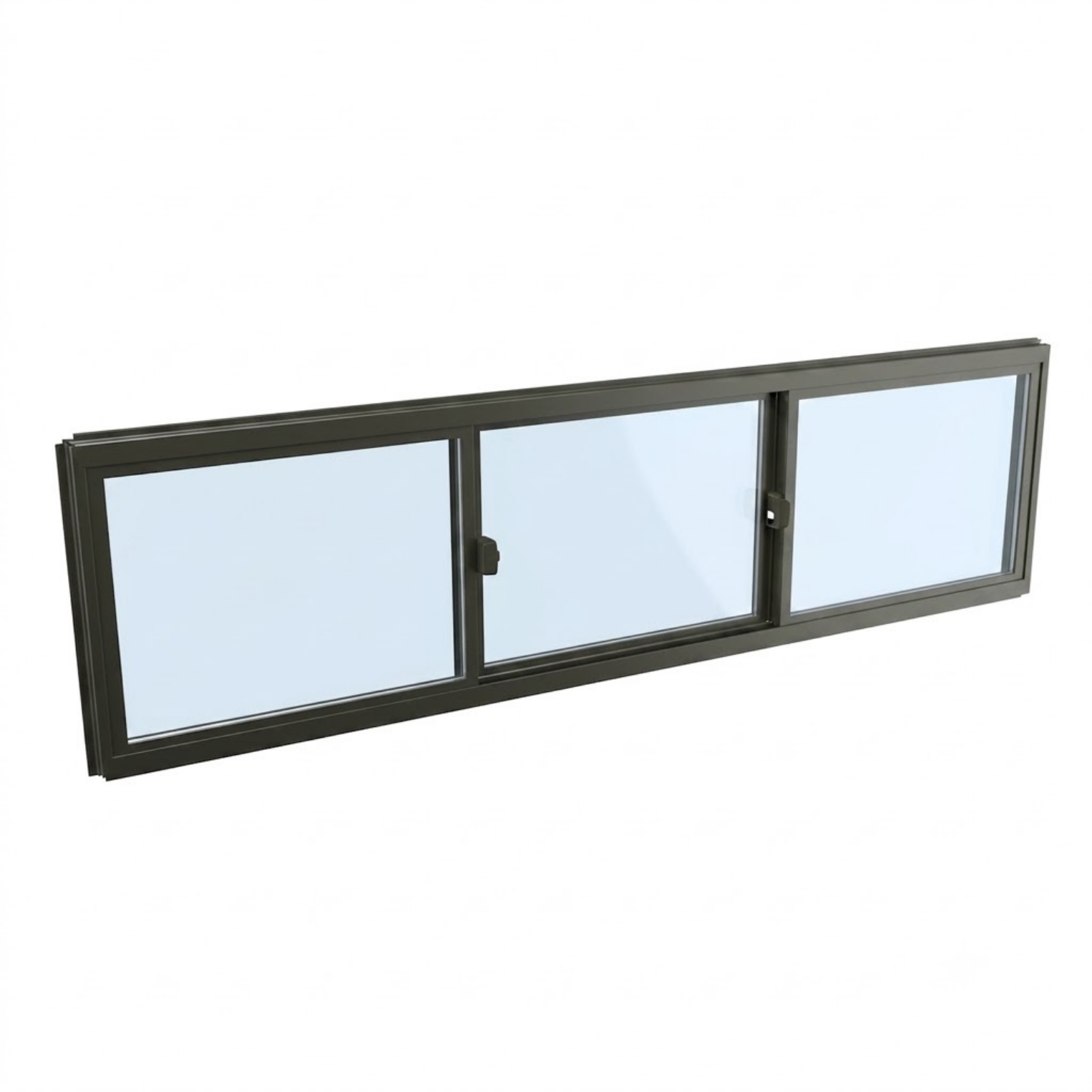

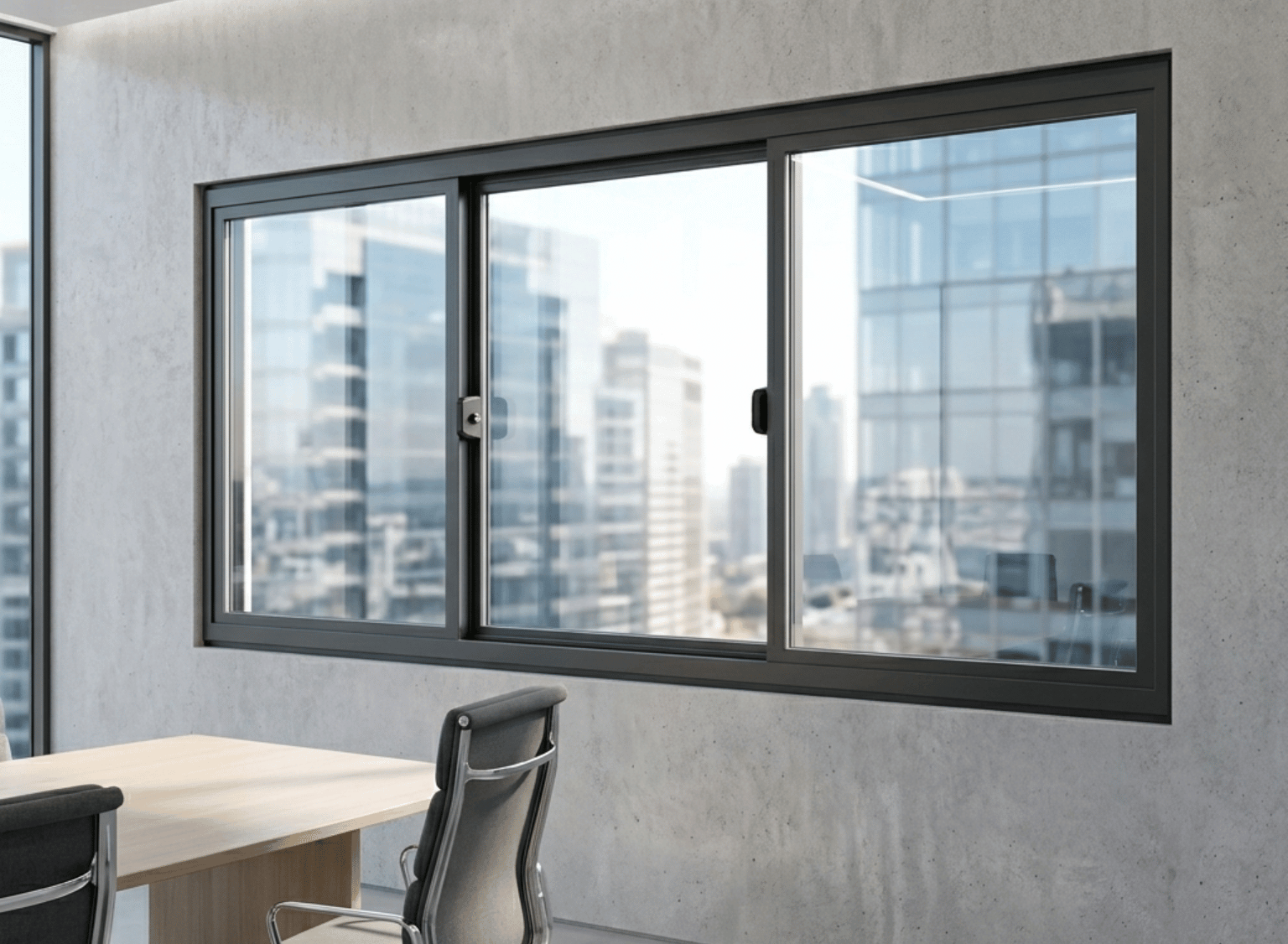

3-Panel Aluminium Sliding Window | H600 x W1200

The H600 x W1200 three-panel aluminium sliding window is a highly compact, dual-ventilation architectural unit. Measuring 600mm high and 1.2 metres wide, it features a stationary central glass pane bordered by two independently operable sliding end sashes. This specific slide, fixed, and slide format delivers an unobstructed central view alongside perfectly controllable cross-ventilation. It serves as an exceptional architectural solution for small kitchens, compact bathrooms, walk-in pantries, and narrow laundry rooms where you need to maximize fresh airflow but have highly limited exterior wall space available.

The Engineering Behind a Compact Split Frame

Framing a 1200mm horizontal opening is a standard and highly efficient process on any building site. It fits effortlessly into normal timber framing layouts. Your builder or carpenter can install this compact frame quickly without requiring complex or heavy lintel supports overhead.

Most 1.2-metre windows are split into just two equal panels. Moving to a three-panel configuration in this compact size is a highly deliberate architectural choice. It divides the frame into three vertical sections, with each panel measuring roughly 400mm across. You secure a central picture window that remains completely free of mesh. The operable sliding panels on the left and right sides provide two distinct ventilation zones.

Because these outer sashes are narrow, they are exceptionally lightweight. They place absolutely zero strain on the heavy-duty bottom rolling tracks. You can push them open with a single finger. This three-panel layout gives you a beautifully symmetrical window that performs flawlessly mechanically and looks stunning from the street front.

Key Features and Build Specifications

We manufacture our custom aluminium windows using premium materials to ensure they perform flawlessly under constant daily use. Every specific component is selected for maximum durability and weather resistance.

• Overall Dimensions: 600mm exact outer frame height by 1200mm exact outer frame width.

• Frame Profile: Commercial grade extruded aluminium engineered to support the glass securely without any frame distortion.

• Operating Track: High quality bottom rollers ensure the outer sliding glass panels glide quietly and easily.

• Security Hardware: Key-lockable handles come standard on both sliding sashes to provide excellent physical security against forced entry.

• Glass Options: Configure your unit with Clear, Grey Tint, Low-E, Satinlite Obscure, or highly efficient Double Glazed glass.

• Colour Selection: Available in standard Pearl White, architectural Custom Black, or specify a Custom Colour to match existing exterior frames.

• Screen Compatibility: Integrated exterior tracks hold standard Flyscreens, Diamond Grille, or Stainless Steel Security Screens firmly in place.

• Weather Sealing: Thick perimeter rubber seals block out wind, dust, and coastal moisture when the sashes are locked closed.

Room by Room Application Guide

Builders and homeowners specify this compact 1.2-metre frame when they want to draw in natural light without taking up valuable storage or cabinetry space. The short 600mm height provides a very specific functional advantage for smaller utility rooms in a new build or a major home renovation.

Small Kitchens and Walk-In Pantries The 600mm height and 1200mm width make this a highly practical window for tight food preparation zones. It fits perfectly above a small kitchen sink or inside a walk-in pantry. You flood the bench space with natural light and gain a clear central view of your side yard. When the room fills with hot air or cooking odours, you simply slide the outer panels open. This action vents the humid air straight outside. Fast ventilation is especially critical in a pantry where you need to keep stored food cool and dry all year round.

Bathrooms and Ensuites Privacy remains the absolute priority in any bathroom layout. A 600mm high window placed right on the ceiling line provides immense natural light while keeping you completely hidden from adjoining properties. Hot shower steam naturally rises to the ceiling. Opening this high window pulls that steam straight out of the bathroom before it can condense on your mirrors or cause ceiling mould. If you combine this high-wall placement with our Satinlite Obscure glass, you guarantee total visual privacy for your family.

Laundries and Utility Rooms Laundries are notoriously damp environments that require excellent cross-ventilation. This compact three-panel window provides two separate opening points to flush moist air out of the room rapidly. The 1.2-metre width easily fits above a standard washing machine or laundry trough. It leaves you plenty of vertical wall space above the window to install overhead storage cupboards and drying racks.

Customising Your Glazing and Finish

Even a compact window allows solar energy to enter your property. The type of glass you select will heavily dictate how hot or cold your room feels throughout the entire year. We build every window entirely to order so you can choose the exact thermal performance your location requires.

Standard Clear glass is a highly cost effective choice for heavily shaded side boundaries or southern facing walls where direct sunlight is heavily restricted. If this window faces the brutal western afternoon sun, standard glass will quickly heat up your small utility room. For these exposed locations, we strongly advise upgrading to Low-E glass or a Grey Tint. Low-E glass features a transparent microscopic coating that actively reflects radiant heat. It bounces the harsh summer heat back outside and helps retain your expensive internal heating during the winter months.

For the highest possible level of energy efficiency, select our Double Glazed units. Double glazing traps an insulating pocket of argon gas between two completely separate glass panes. This setup creates a massive thermal barrier that significantly lowers your air conditioning costs. It also heavily muffles loud street traffic and helps your home meet stringent Window Energy Rating Scheme compliance standards required by the National Construction Code.

We protect all our aluminium frames with a highly durable powder coating. This baked finish actively resists fading, chalking, and coastal saltwater corrosion. Pearl White is a classic heat reflective choice that suits traditional Australian brick homes. Custom Black provides a striking border that frames your outside view perfectly. If you need a specific architectural match for an extension project, our Custom Colour service ensures your new window blends into your building plans precisely.

Internal Security and External Screening

Sliding windows feature screens mounted on the outside of the track. The primary aesthetic advantage of a three-panel layout is that you only need to screen the two outer moving sections. The central picture window remains completely free of mesh. You get a crystal clear unobstructed view right in the middle of the frame.

Our window profiles include integrated external tracks to hold these screens securely. If you simply want to keep flies and mosquitoes out of your pantry during summer, our standard Flyscreens do the job perfectly. If you want genuine peace of mind, upgrade to our Stainless Steel Security Screens. This heavy-duty woven mesh resists knife attacks and forced entry attempts. It allows you to leave both sides of your compact 1.2-metre window wide open on a hot night while keeping your property totally secure.

Built to Meet Australian Standards

The Australian climate destroys cheap imported building materials very quickly. We engineer our products to survive extreme heatwaves, driving rain, and strong winds without warping or leaking. Every custom aluminium window we manufacture complies strictly with AS 2047 building standards. This mandatory certification means your specific window design has passed rigorous laboratory testing for structural deflection, operating force, and water penetration resistance.

New Age Construction Group operates directly out of Smeaton Grange NSW. We proudly manufacture custom building materials and deliver them right across Australia. Whether your job site is located in Sydney, Melbourne, Brisbane, Perth, Adelaide, or a regional centre, we transport your custom windows safely to your door. You are investing in heavy-duty products engineered by an experienced local team who understands exactly what the Australian environment demands.

Frequently Asked Questions

Is a sliding sash functional on a compact three-panel window? Yes. While the moving glass panels are narrower than those on a larger sliding window, they are specifically designed to provide highly targeted ventilation. The narrow width makes them incredibly lightweight, ensuring they glide open effortlessly on the bottom track without catching or binding.

Do I need to screen the central fixed glass pane? No. The exterior screens only cover the outer sections that actually open. This leaves the middle glass pane completely unobstructed. It gives you a clear view outside and lets maximum natural light into the room.

What is the standard manufacturing lead time? We build this architectural unit entirely to order based on your chosen frame colour, glass type, and screen selections. Our manufacturing lead time is typically 12 to 15 working days from the date of your order. Our team will keep you informed throughout the build process and arrange a specific delivery date once the unit passes our final quality control checks.

Secure Your Custom Window Order Today

The H600 x W1200 three-panel aluminium sliding window delivers brilliant natural light, reliable security, and exceptional ventilation control for tight spaces. Use the configuration tools on this page to build your perfect unit. Select your glass, frame colour, and required exterior screens, then add the item to your cart for a secure checkout. If you need a custom size, technical advice on energy ratings, or bulk pricing for a renovation project, contact the New Age Construction Group team today.
