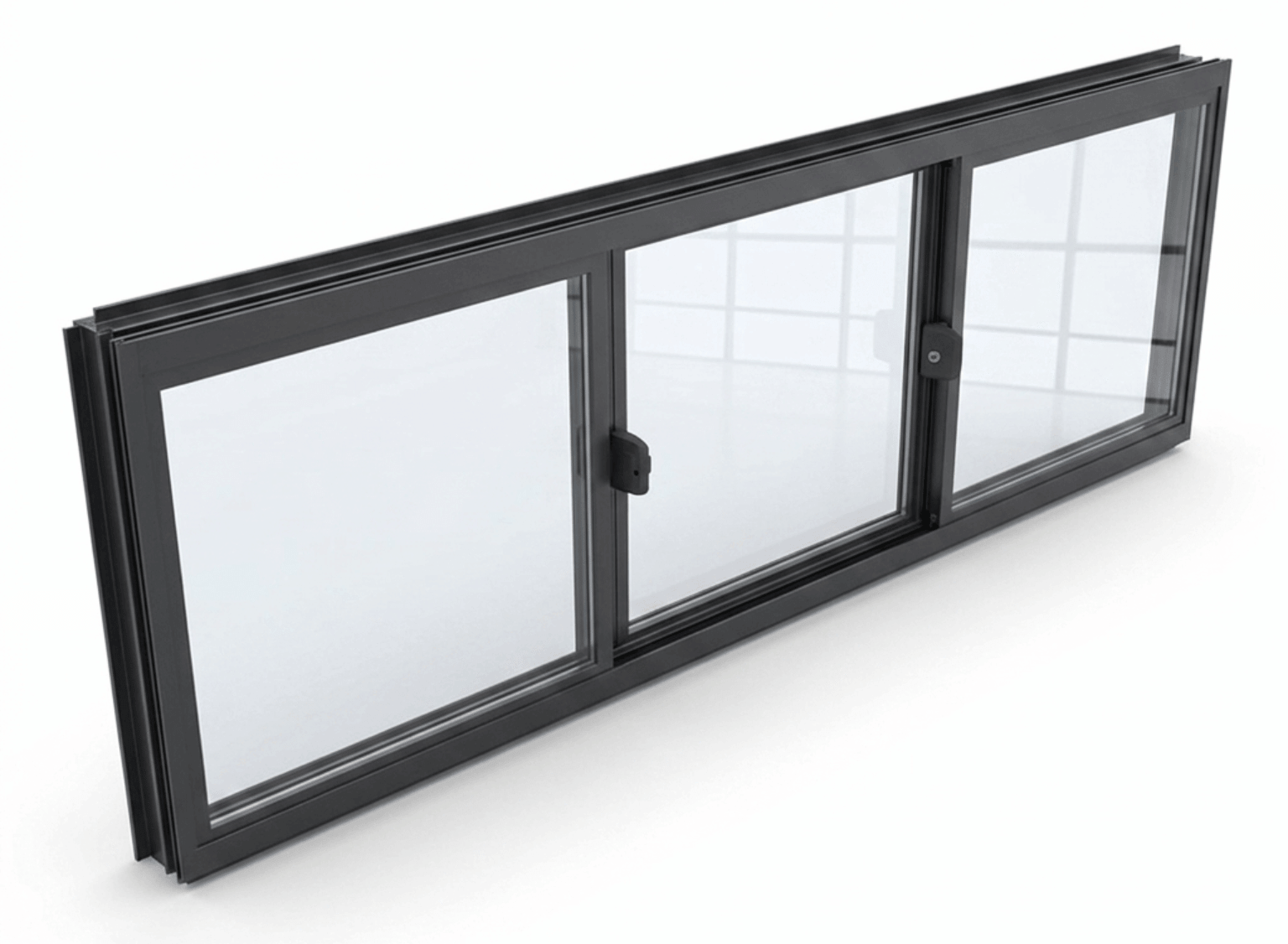

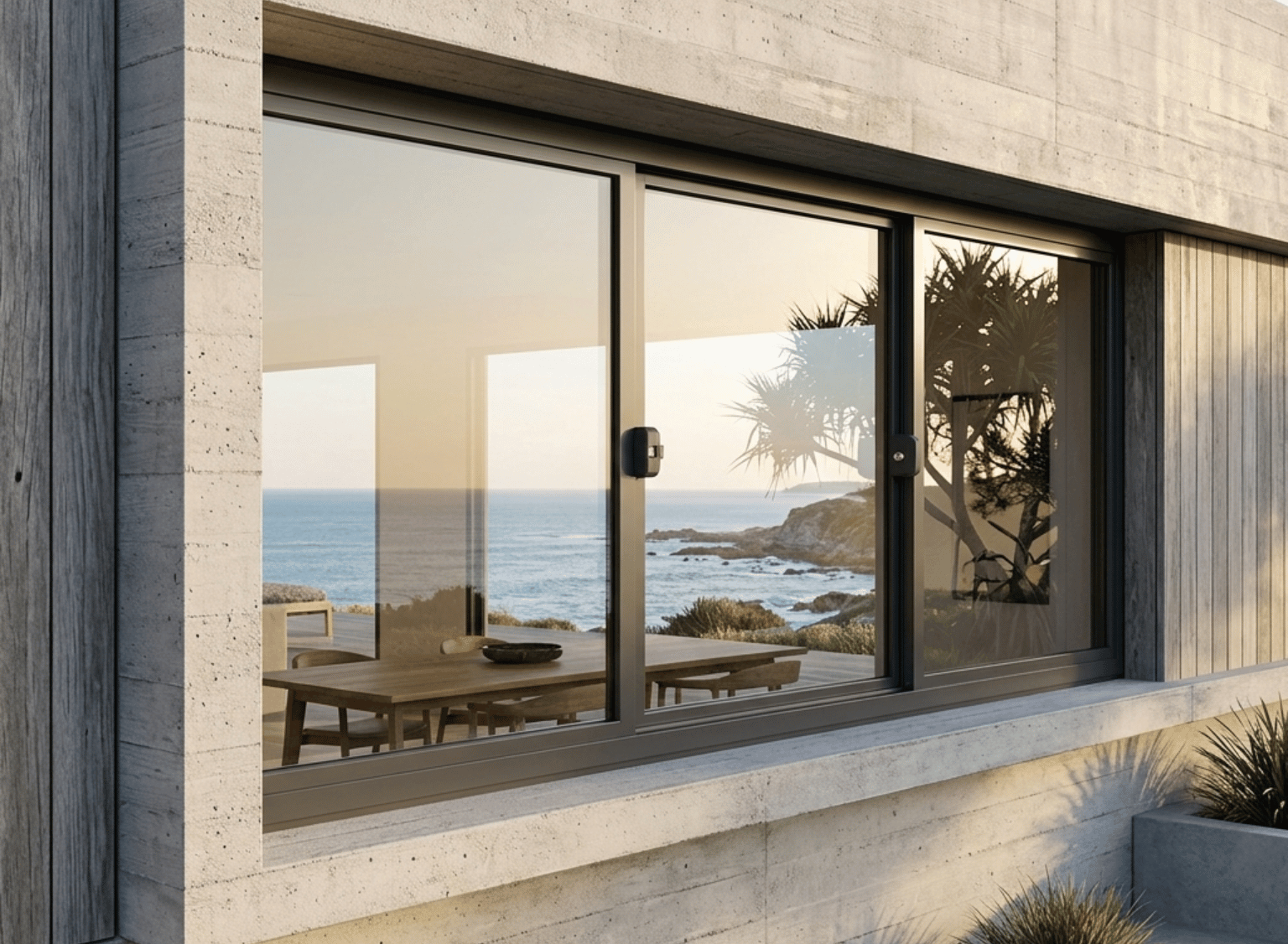

Grand 3-Panel Aluminium Sliding Window | H600 x W2700

The H600 x W2700 grand three-panel aluminium sliding window is an ultra-wide, low-profile architectural unit. It measures 600mm high and spans a massive 2.7 metres across. This layout features a large stationary central glass pane flanked by two operable sliding sashes. It is the definitive choice for modern kitchen splashbacks and high-wall architectural placements where you want sweeping panoramic views and heavy cross-ventilation without compromising your privacy or sacrificing valuable wall space.

The Engineering Behind the 2.7 Metre Span

Designing a home with wide horizontal sightlines creates a striking modern aesthetic. The 600mm by 2700mm dimension produces a dramatic letterbox effect. It acts as a cinematic frame for your outside landscape. Managing a glass span of 2.7 metres requires intelligent structural design.

If a manufacturer attempted to build a standard two-panel sliding window at this exact width, each glass panel would measure 1.35 metres across. That creates an exceptionally heavy moving sash that places immense strain on the bottom track and rollers. The sheer weight makes the window difficult to open and prone to track damage over time.

By splitting this 2.7-metre span into a slide, fixed, and slide configuration, we distribute the structural weight perfectly. The centre of the window becomes a dedicated fixed picture pane. The left and right sides house the operable sliding sashes, which are now much narrower and lighter. This specific layout gives you an incredibly balanced window. You get a massive, uninterrupted sightline right through the middle of the frame. You also gain two outer sashes that glide open effortlessly with minimal physical pressure. You can open one side to catch a gentle breeze or slide both outer panels fully open to ventilate a large living space rapidly.

Key Features and Build Specifications

We manufacture our aluminium sliding windows using premium materials to ensure they perform flawlessly under constant daily use. Every specific component is selected for maximum durability and weather resistance.

• Overall Dimensions: 600mm exact outer frame height by 2700mm exact outer frame width.

• Frame Profile: Heavy-duty extruded aluminium engineered to support a 2.7-metre horizontal span without sagging.

• Operating Track: Commercial grade bottom rollers ensure the outer glass sashes glide quietly over years of heavy use.

• Security Hardware: Key-lockable handles come standard on both sliding sashes to provide excellent security against forced entry.

• Glass Options: Configure your unit with Clear, Grey Tint, Low-E, Satinlite Obscure, or highly efficient Double Glazed glass.

• Colour Selection: Available in standard Pearl White, architectural Custom Black, or specify a Custom Colour to match existing frames.

• Screen Compatibility: Integrated exterior tracks hold standard Flyscreens, Diamond Grille, or Stainless Steel Security Screens firmly in place.

• Weather Sealing: Premium perimeter rubber seals block out wind, dust, and coastal moisture when the sashes are locked closed.

Ideal Placements for Large Australian Homes

Builders and homeowners specify this grand 2.7-metre frame when they want to make a serious visual impact. The short 600mm height provides a very specific architectural advantage for several key rooms.

Architectural Kitchen Splashbacks This specific dimension is the ultimate choice for a modern kitchen splashback. A 2.7-metre span easily covers the entire length of a standard prep bench or a large stovetop area. Installing this window horizontally between your benchtop and your overhead cupboards completely transforms the kitchen. It floods your primary workspace with natural morning light and gives you a clear view outside while you cook. You can instantly slide the outer panels open to vent hot steam and strong cooking smells directly outside.

High-Wall Living Areas and Clerestory Windows Hot air rises. Placing these ultra-wide windows high up on a raked ceiling or along the top of a living room wall creates an incredibly effective thermal chimney. This is a common strategy in passive solar house design. You can open the high sashes on a blistering summer afternoon to let trapped heat escape, which draws cooler air in from the lower windows in the house. The high placement gives you massive airflow while maintaining total visual privacy from your neighbours.

Master Bedrooms and Ensuites Privacy is the primary concern in bedrooms and bathrooms. The 600mm height allows you to install this wide window close to the ceiling line. You pull immense natural light into a dark master suite or a large bathroom without giving anyone a sightline into your personal space. The dual sliding sashes give you total control over the overnight temperature. You can crack the windows slightly for a cool breeze, knowing the key-lockable handles keep the sashes securely fixed in place.

Customising Your Glazing and Finish

A window measuring 2.7 metres wide represents a significant thermal opening in your exterior wall. The type of glass you select will heavily dictate how hot or cold your room feels throughout the year. We build every window to order so you can choose the exact thermal performance your location requires.

Standard Clear glass is a highly cost effective choice for heavily shaded patios or southern facing walls where direct sunlight is restricted. If this large window faces the brutal western afternoon sun, standard glass will quickly turn your living space into a greenhouse. For these highly exposed locations, we strongly advise upgrading to Low-E glass or a Grey Tint. Low-E glass features a transparent, microscopic coating that actively reflects radiant heat. It bounces summer heat back outside and helps retain your expensive internal heating during the winter months.

For the highest possible level of energy efficiency, you need our Double Glazed units. Double glazing traps an insulating pocket of argon gas between two completely separate glass panes. This setup creates a massive thermal barrier that significantly lowers your air conditioning costs. It also heavily muffles loud street traffic, which is a major benefit if you are building on a busy main road.

We protect all our aluminium frames with a highly durable, baked-on powder coating. This tough finish actively resists fading, chalking, and coastal saltwater corrosion. Pearl White is a classic, heat reflective choice that suits traditional Australian brick homes. Custom Black provides a striking, high contrast border that frames your outside view like a modern photograph. If you need a specific architectural match for a renovation project, our Custom Colour service ensures your new window blends perfectly into your building plans.

Internal Security and External Screening

Sliding windows feature screens mounted on the outside of the track. The primary aesthetic advantage of a three-panel slide, fixed, and slide layout is that you only need to screen the two outer moving sections. The large central picture window remains completely free of mesh. You get a crystal clear, unobstructed view of your property right in the middle of the frame.

Our window profiles include integrated external tracks to hold these screens securely. If you simply want to keep flies and mosquitoes out of your kitchen during summer, our standard Flyscreens do the job perfectly. If you want genuine peace of mind, upgrade to our Stainless Steel Security Screens. This heavy-duty woven mesh resists knife attacks and forced entry attempts. It allows you to leave both sides of your 2.7-metre window wide open on a hot night while keeping your family totally secure inside.

Built to Meet Australian Standards

The Australian climate destroys cheap imported building materials very quickly. We engineer our products to survive extreme heatwaves, driving rain, and cyclonic winds without warping or leaking. Every custom aluminium window we manufacture complies strictly with AS 2047 building standards. This mandatory certification means your specific window design has passed rigorous laboratory testing for structural deflection, operating force, and water penetration resistance.

New Age Construction Group operates directly out of Smeaton Grange NSW. We proudly manufacture custom building materials and deliver them right across Australia. Whether your job site is located in Sydney, Melbourne, Brisbane, Perth, Adelaide, or a regional centre, we transport your custom windows safely to your door. You are investing in heavy-duty products engineered by an experienced local team who understands exactly what the Australian environment demands.

Frequently Asked Questions

Is a 2.7-metre wide window difficult for one person to open? Not at all. The three-panel configuration means you are only ever pushing a relatively narrow glass sash. We use premium commercial grade bottom rollers on the sliding tracks. The weight of the moving glass rests entirely on these heavy duty rollers, ensuring a smooth, quiet glide that requires minimal physical effort.

How do the exterior screens work on a three-panel window? The screens fit directly into the external track on the far left and far right sides of the window. They cover the operable sliding sections only. The central fixed pane does not require a screen, which ensures your panoramic central view remains perfectly clear.

What is the standard lead time for this custom size? We build this large architectural unit entirely to order based on your specific colour, glass, and screen choices. Our standard manufacturing lead time is 12 to 15 working days from the date of purchase. Our production team will keep you updated on the build progress and schedule a firm delivery date once the unit passes our strict quality control checks.

Secure Your Custom Window Order Today

The H600 x W2700 grand three-panel aluminium sliding window delivers massive airflow, excellent security, and stunning architectural sightlines for modern kitchens and living areas. Configure your perfect unit using the drop down menus on this page. Select your required glass type, pick your frame colour, and add your necessary exterior screens. Add the configured item to your cart for a fast, secure checkout. If you need technical advice on a complex build, require a totally custom dimension, or want bulk pricing for a new residential development, contact the expert team at New Age Construction Group today.
