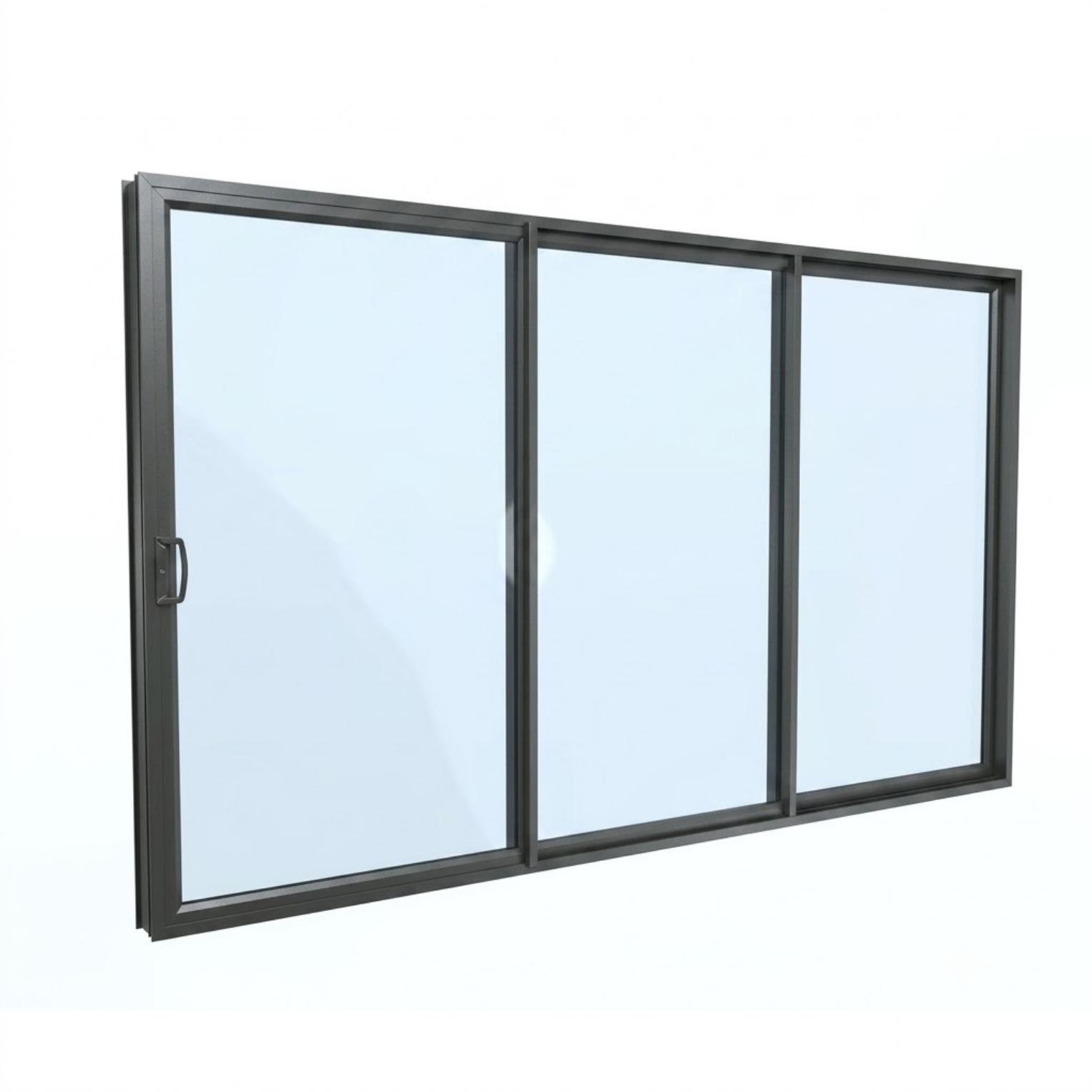

Heavy-Duty 3-Panel Aluminum Sliding Stacker Window | H900 x W2100

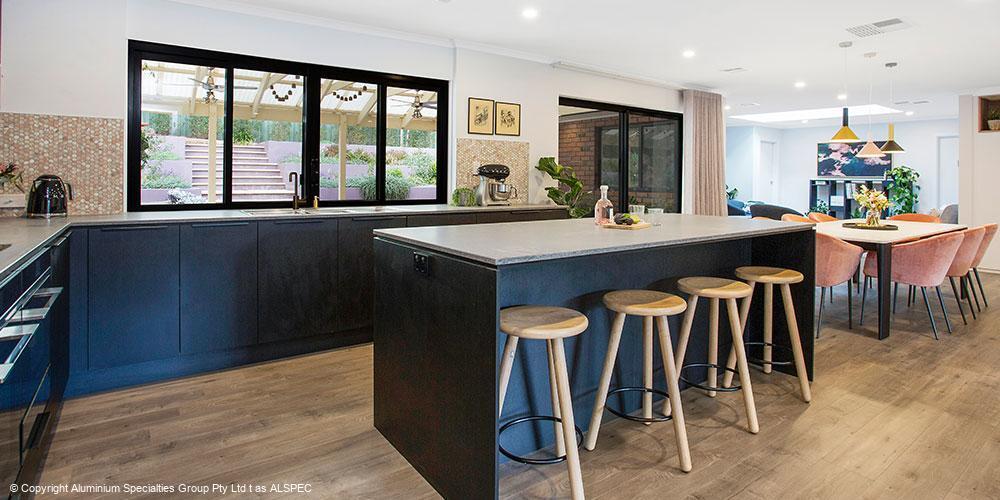

Maximize your opening capacity and transition smoothly to the outdoors with our mid-format 900x2100mm Three-Panel Aluminum Sliding Stacker Window. By engineering this system directly from premium sliding door profiles, two active window panels stack neatly over a third fixed panel when opened. This delivers a significantly wider ventilation opening than standard sliding layouts, making it an excellent centerpiece choice for wide kitchen serveries, living spaces, and entertainment zones.

Evolving from high-performance systems used in premium high-rise apartment builds, this structural window setup eliminates the lightweight feel of traditional fixtures, replacing it with commercial-grade strength and an upscale architectural finish.

Advanced Engineering & Premium Hardware Features:

• Concealed Track Blueprint: Replaces basic, exposed tracks that accumulate dirt with a seamless range of custom threshold, jamb in-fills, and end caps to close off open tracking cavities. This ensures a clean look and stops dust, grit, and pests from building up.

• Premium Doric Hardware: Includes dependable, high-security Doric locking hardware as standard for effortless glide control (Note: Product photos focus on the interior view to showcase the hardware layout).

• Architectural Handle Upgrade: Want to elevate your styling and security? Click our [Link to Handle Upgrade: Premium Carey Twin Sliding Handle Option] to check out our heavy-duty architectural lock upgrade.

• Weather & Pest Armor: Features an internally hidden weather flap mechanism that significantly cuts down air and water infiltration while keeping insects from breaching structural drain holes.

• Extreme Weather Performance: Available with targeted structural interlock configurations engineered to resist high wind loads and harsh cyclonic environments.

• Fully Certified Standards: Thoroughly engineered and tested to satisfy or exceed strict building compliance standards, including AS2047, AS1170, AS1191, and AS3959.

Technical Specifications:

• Window Dimensions: Height 900mm x Width 2100mm

• Required Stud Opening: Height 950mm x Width 2150mm

• Weight: Single Glazed: 48kg | Double Glazed: 55kg

Eco-Conscious Design & Energy Efficiency: Upgrading standard fixtures with high-performance systems is one of the most proactive choices you can make toward long-term sustainability. Studies by the Sustainable Windows Alliance of Australia show that retrofitting standard window openings can lift an entire property's thermal rating by 2 to 2.5 stars. Built using 100% recyclable aluminum, this durable stacking system is an environmentally responsible investment.

While alternative framing requires bulky adapters to hold heavy glass layers, our frames natively accept advanced eco-glazing straight out of the box. Seamlessly integrate energy-saving Low-E glass or up to 10.5mm high-performance thermal and acoustic glass panels with no unsightly frame extensions required.

Pro Tip for Smart Building: For absolute peak climate efficiency, pair your performance windows with robust insulation and ensure primary living spaces face north for optimal seasonal shading.

Looking for Custom Dimensions or specialized Frame Finishes? If you need tailored sizing splits, alternative glass finishes, or specific powder-coated frame colors, our production team can build it. Contact our Custom Design Team today to request a personalized project quote!
