Three Panel Sliding Door | H2400 x W3600

The H2400 x W3600 three-panel sliding door is a monumental, large-format architectural portal engineered to completely erase the physical boundary between your interior living space and your outdoor environment. Measuring a towering 2.4 metres in height and a massive 3.6 metres in width, this premium aluminium frame utilizes a highly versatile three-panel configuration. By seamlessly gliding colossal spans of heavy-duty safety glass on precision roller tracks, this door provides the ultimate glazing solution for luxury Australian homes, delivering immersive natural light, expansive panoramic views, and an unbelievably wide walk-through opening for flawless alfresco entertaining.

The Architectural Logic of the 2400x3600 Format

Selecting precisely engineered, large-scale door dimensions fundamentally transforms the spatial dynamics, exterior aesthetics, and daily lifestyle of your property. The 2400mm height is a premium, architecturally driven measurement in contemporary Australian residential construction. While traditional homes use 2100mm doors, stepping up to a 2.4-metre head height aligns perfectly with modern 2.7m or 3.0m high ceilings. This towering vertical profile immediately draws the human eye upward, making your living spaces feel significantly grander, lighter, and exceptionally luxurious.

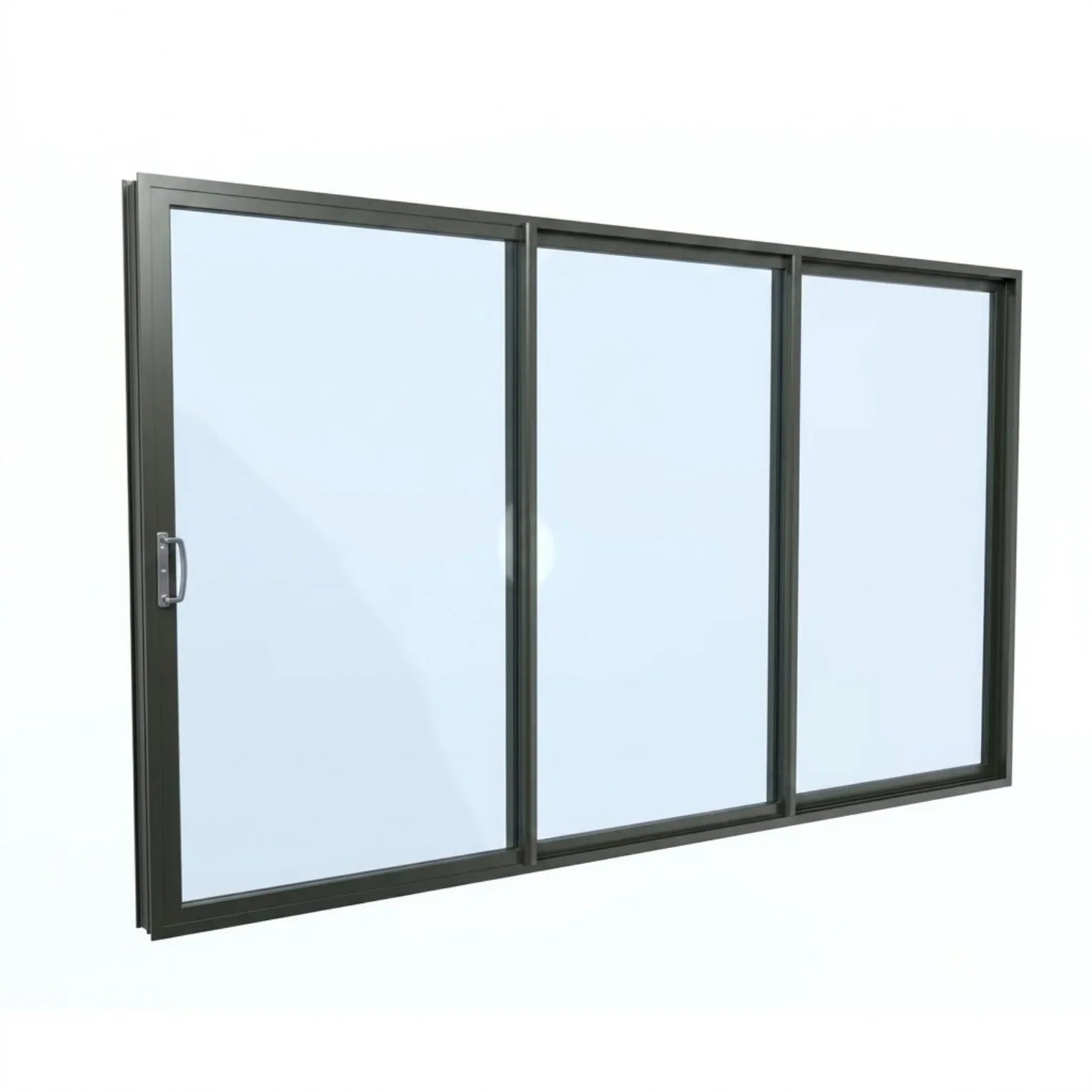

A width of 3600mm makes a bold, undeniable architectural statement. Spanning exactly 3.6 metres across, this door acts as a dynamic, operable glass wall. The true brilliance of this unit lies in its three-panel design. Instead of dividing the massive 3.6-metre span into two impractically heavy 1.8-metre doors, the frame is intelligently split into three perfectly proportioned 1.2-metre wide panels. This creates an elegant aesthetic that is incredibly easy to operate.

Depending on your chosen configuration (such as a stacker layout, where two doors slide and stack neatly over one fixed panel), you can open up a massive 2.4-metre wide clear thoroughfare. This creates an unparalleled sense of indoor-outdoor flow. During a summer barbecue or family gathering, you can slide the panels completely out of the way, effectively merging your indoor lounge room with your outdoor patio, timber deck, or pool area into one giant, unified entertaining zone.

Key Features and Build Specifications

We engineer our custom aluminium sliding doors to provide absolute reliability and uncompromising long-term performance. Every single component is meticulously selected to ensure your home remains secure, insulated, and perfectly comfortable under the most extreme weather conditions.

• Overall Dimensions: 2400mm exact outer frame height by 3600mm exact outer frame width.

• Frame Profile: Heavy-duty, commercial-grade extruded aluminium designed to flawlessly support the massive 2.4m x 3.6m span with maximum rigidity and zero structural bowing.

• Roller System: Premium, heavy-duty adjustable tandem ball-bearing rollers ensure the colossal glass panels glide silently and effortlessly with the push of a single finger.

• Locking Hardware: High-security, key-lockable mortice handles with multi-point locking mechanisms provide exceptional physical security against forced entry.

• Glass Options: Fitted exclusively with Grade A Toughened Safety Glass. Configure your unit with Clear, Grey Tint, Low-E, or Double Glazed units to perfectly suit your thermal needs.

• Colour Selection: Available in classic Pearl White, architectural Custom Black, or specify a Custom Colour to seamlessly match your exact exterior facade and existing joinery.

• Screen Compatibility: Integrated heavy-duty exterior tracking securely holds standard Flydoors, Diamond Grille, or heavy-duty Stainless Steel Security Screen doors.

• Weather Sealing: Heavy-duty perimeter rubber weather strips, interlocking mullions, and high-quality mohair brush seals ensure the door acts as a solid, impenetrable barrier against cyclonic winds and driving coastal rain.

Room by Room Application Guide

Architects, premium builders, and discerning homeowners consistently specify this towering, 3.6-metre wide three-panel door when they want to maximize natural light and create a flawless, wide-open transition to the outdoors. The sweeping proportions provide a serious architectural advantage for high-traffic living areas.

Open-Plan Living to Alfresco Transitions Installing this massive 2400x3600mm door in your primary living space completely changes the environment of your home. It acts as the ultimate thoroughfare to your backyard. When the weather is perfect, you can slide the doors back to create a massive 2.4-metre opening, allowing dozens of guests to move freely between the kitchen, lounge, and outdoor dining area simultaneously. The 2.4-metre height ensures that even the tallest guests can walk through comfortably, providing a true luxury resort feel to your home.

Grand Master Suites and Balconies A sliding door measuring 3.6 metres across makes a master bedroom feel incredibly spacious and deeply connected to nature, drawing immense morning light into the room. If your luxury master suite connects to a private balcony or coastal viewing deck, this tall door provides sweeping, uninterrupted panoramic views right from your bed. You can slide a single 1.2m panel open at night to catch a cool, ambient breeze, knowing the secure heavy-duty screen doors will keep insects out while you sleep.

Architectural Sunrooms and Rumpus Rooms If you are designing a dedicated sunroom, games room, or a high-end pool house, massive expanses of operable glass are essential. Installing this wide 3-panel door allows you to completely open the structure during the hot summer months, instantly converting an indoor room into an outdoor pavilion. In winter, you lock the heavy-duty panels tight, creating a warm, sun-drenched retreat that remains fully insulated against the freezing outside air.

Customising Your Glazing and Finish

A glass door of this immense scale allows a highly significant amount of solar energy into your property. Because sliding doors reach all the way to the floor, Australian building codes (AS 1288) mandate the use of Grade A Toughened Safety Glass to prevent dangerous shattering upon human impact. Beyond safety, the type of glass you choose plays a foundational role in your daily thermal comfort and ongoing seasonal energy bills.

Standard Clear Toughened glass is a highly cost-effective choice for well-shaded alfresco areas or southern elevations where direct sunlight is naturally limited. If this massive wide door faces the brutal western afternoon sun, standard glass will trap the heat and quickly turn your living space into a greenhouse. We strongly recommend upgrading to Low-E glass or a Grey Tint for these highly exposed locations. Low-E glass features a microscopic, transparent metallic coating that actively reflects radiant heat back outside. It stops your rooms from overheating during intense summer heatwaves and actively retains your expensive interior heating during the freezing winter months.

For the highest possible level of energy efficiency and acoustic performance, select our Double Glazed upgrade. Double glazing traps an insulating pocket of inert argon gas between two completely separate toughened glass panes, creating a massive thermal and acoustic barrier right in the middle of your wall. This is a brilliant, essential solution for homes positioned near busy roads or noisy neighbourhood spaces.

We protect all our heavy-duty aluminium frames with a tough, baked-on powder coated finish that actively resists chalking, fading, and coastal saltwater corrosion over decades of constant use. Pearl White remains a classic choice for traditional brick builds because it actively reflects heat away from the frame. Custom Black delivers a bold, striking border that highlights contemporary architecture perfectly. Our Custom Colour service is available if you need to match existing window and door frames precisely during a major home extension.

Internal Security and External Screening Solutions

The ability to leave your massive 3.6-metre doors wide open without inviting insects or intruders into your home is crucial. Our sliding door profiles are specially extruded with deep, integrated external tracks to hold sliding screen doors securely in place on heavy-duty rollers.

A standard fibreglass sliding Flydoor keeps mosquitoes and flies away during warm summer nights, allowing you to enjoy a cool cross-breeze. However, for a primary entry point of this scale, home security is often a priority. If you want genuine, uncompromising peace of mind, upgrade to our heavy-duty Stainless Steel Security Screen doors. This premium woven mesh resists knife attacks, heavy blunt impact, and forced entry attempts, allowing you to ventilate your home safely at any hour of the day or night without obscuring your panoramic view.

Built to Meet Australian Standards

The unforgiving Australian climate destroys cheap, imported building materials very quickly. We engineer our products to survive extreme heatwaves, driving coastal rain, and cyclonic winds without warping, bowing, or leaking. Every aluminium door we manufacture complies strictly with AS 2047 (Windows and External Glazed Doors in Buildings) and AS 1288 (Glass in Buildings). This mandatory certification guarantees your specific door design has passed rigorous independent laboratory testing for structural deflection, operating force, water penetration resistance, and human impact safety.

New Age Construction Group operates directly out of Smeaton Grange NSW. We proudly manufacture custom building materials and deliver them right across Australia. Whether your job site is located in Sydney, Melbourne, Brisbane, Perth, Adelaide, or a remote regional centre, we transport your custom doors safely to your location. You are investing in heavy-duty products engineered by an experienced local team who understands exactly what the harsh Australian environment demands.

Frequently Asked Questions

What is the clear opening width of this 3.6m door? If you choose a stacker configuration (where two doors slide and stack neatly over one fixed panel), you will achieve a massive clear opening of approximately 2.4 metres. This is large enough to move oversized furniture through and creates a stunning, seamless flow for entertaining.

Is a 1.2m wide, 2.4m tall glass panel too heavy to slide easily? No. While 2400x1200mm toughened glass is certainly heavy, we utilize premium, heavy-duty tandem ball-bearing roller carriages specifically engineered to carry high-weight architectural loads. This ensures that even our largest, heaviest double-glazed doors glide incredibly smoothly and silently along the bottom track with minimal physical effort.

How is a door of this size delivered? Due to the massive 2.4m x 3.6m dimensions and the extreme weight of the glass, these large-format doors are typically supplied as a semi-knockdown kit (a flat-pack frame with completely separate, pre-glazed sliding panels). This ensures safe transport and allows your builders to handle and assemble the unit safely on your specific job site.

Secure Your Custom Door Order Today

The H2400 x W3600 three-panel sliding door delivers brilliant panoramic light, premium architectural aesthetics, and flawless indoor-outdoor flow on a monumental scale. Use the configuration tools on this page to build your perfect unit. Select your glass, frame colour, sliding configuration, and required exterior screens, then add the item to your cart for a fast and secure checkout. If you need a custom size, technical advice on energy ratings, or bulk pricing for a premium architectural build, contact the expert team at New Age Construction Group today.
