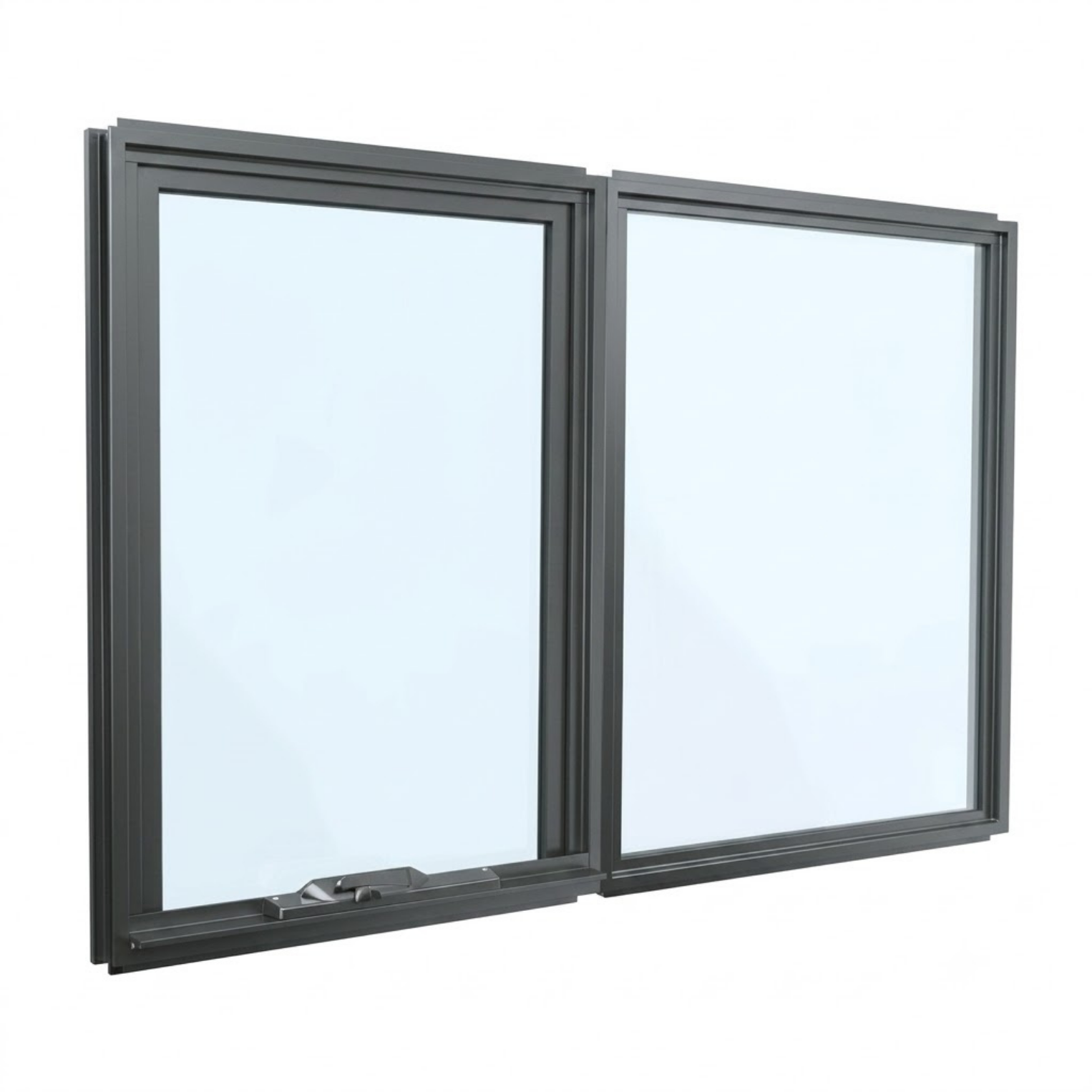

Premium Awning / Fixed Window Combination | H900 x W1800

The Premium Awning & Fixed Aluminium Window (H900mm x W1800mm) combines expansive architectural sightlines with superior all-weather ventilation, making it an exceptional choice for contemporary living rooms, kitchens, bedrooms, dining areas, and home offices. Measuring 900mm in height by 1800mm in width, this premium combination window pairs a top-hinged operable awning sash with a non-operable fixed picture panel—delivering the perfect balance of unobstructed natural daylight and controlled airflow across a versatile 1.8-metre span. The awning sash opens outward from the bottom via a smooth, heavy-duty mechanical chain winder, allowing you to maintain fresh cross-ventilation even during light rain downpours. Customise your frame finish from our architectural powder-coated colour palette, select high-performance toughened safety glass or double glazing, and add protective interior insect or marine-grade stainless steel security screens for the operable bay. Built in Smeaton Grange NSW by New Age Construction Group to comply with AS 2047 Australian Standards and delivered securely Australia-wide.

Key Features & Architectural Benefits

• Versatile 900mm x 1800mm Proportions: Spanning 1.8 metres wide by 900mm tall, this classic horizontal architectural proportion is ideal for introducing generous daylight and dependable airflow above kitchen benchtops, study desks, and credenzas, or along privacy walls where panoramic light is desired without sacrificing wall space below.

• Balanced Awning & Fixed Combination: Divided into a clean, functional layout (typically configured side-by-side as Awning / Fixed or Fixed / Awning), this design combines the best of both worlds. The fixed picture panel provides uninterrupted, screen-free viewing of your outdoor landscape, while the operable awning panel delivers controlled ventilation where you need it most.

• All-Weather Ventilation: Because the operable sash is hinged from the top and swings outward from the bottom, the open glass acts as an overhead protective canopy. This allows you to keep your awning section open for fresh air circulation during rainy weather without water splashing into your interior living space.

• Heavy-Duty Chain Winder Mechanism: The operable awning sash is controlled by an ergonomic, corrosion-resistant mechanical chain winder that glides smoothly and holds the window firmly at any extension. The self-locking winder mechanism prevents the sash from being forced open from the outside, delivering dependable everyday home security.

• Full-Perimeter Compression Sealing: Engineered with continuous, high-grade EPDM compressible weather gaskets around the frame rebate of the operable bay and a 100 per cent structural seal on the fixed bay. When wound shut, the operable sash compresses tightly against the seals to completely eliminate winter draughts, street noise, dust, and heavy driving storm rain.

• Maintenance-Free Structural Aluminium: Crafted from thick-gauge, powder-coated structural aluminium joinery designed to maintain structural rigidity without sagging, bowing, or rotting under intense Australian UV exposure and coastal salt spray.

Glazing & Performance Options

Tailor your combination window's thermal efficiency, visual light transmittance, and privacy level by selecting from our premium safety glass range across both panels:

• Clear Toughened Safety Glass: Delivers maximum visible daylight transmittance and crystal-clear exterior viewing at an accessible price point.

• Grey Tint Toughened Glass: Cuts harsh afternoon glare and reduces solar heat gain during hot summer afternoons without darkening your indoor living space.

• Low-E Toughened Glass: Features a permanent, microscopic low-emissivity coating that reflects interior warmth back inside during winter while slowing down radiant summer heat transfer.

• Satinlite Obscure Glass: Textured privacy glass that lets natural daylight stream in while completely obscuring visibility from neighbouring properties—ideal for side-boundary walls or bathroom applications.

• Double Glazed Options: Available across clear, tinted, and Low-E variations to create an insulating dead air pocket that slashes thermal heat transfer and significantly cuts outside neighbourhood traffic noise across both fixed and operable bays.

Integrated Insect & Security Screens

Because awning sashes open outward away from the interior wall, protective screens for the operable bay mount cleanly to the internal face of the window frame. The fixed picture panel remains completely screen-free for unobstructed viewing:

• Internal Flyscreens: Custom-fitted insect screens with durable fibreglass mesh that keep flies and mosquitoes outside while allowing cooling cross-breezes to circulate through the operable bay.

• Diamond Grille Screens: Classic aluminium security grilles that provide physical deterrence against intruders alongside everyday insect protection.

• Stainless Steel Security Screens: Heavy-duty, marine-grade woven stainless steel mesh that resists knife cuts, heavy impact, and coastal corrosion, securing your ventilation sash without obstructing airflow or outdoor views.
