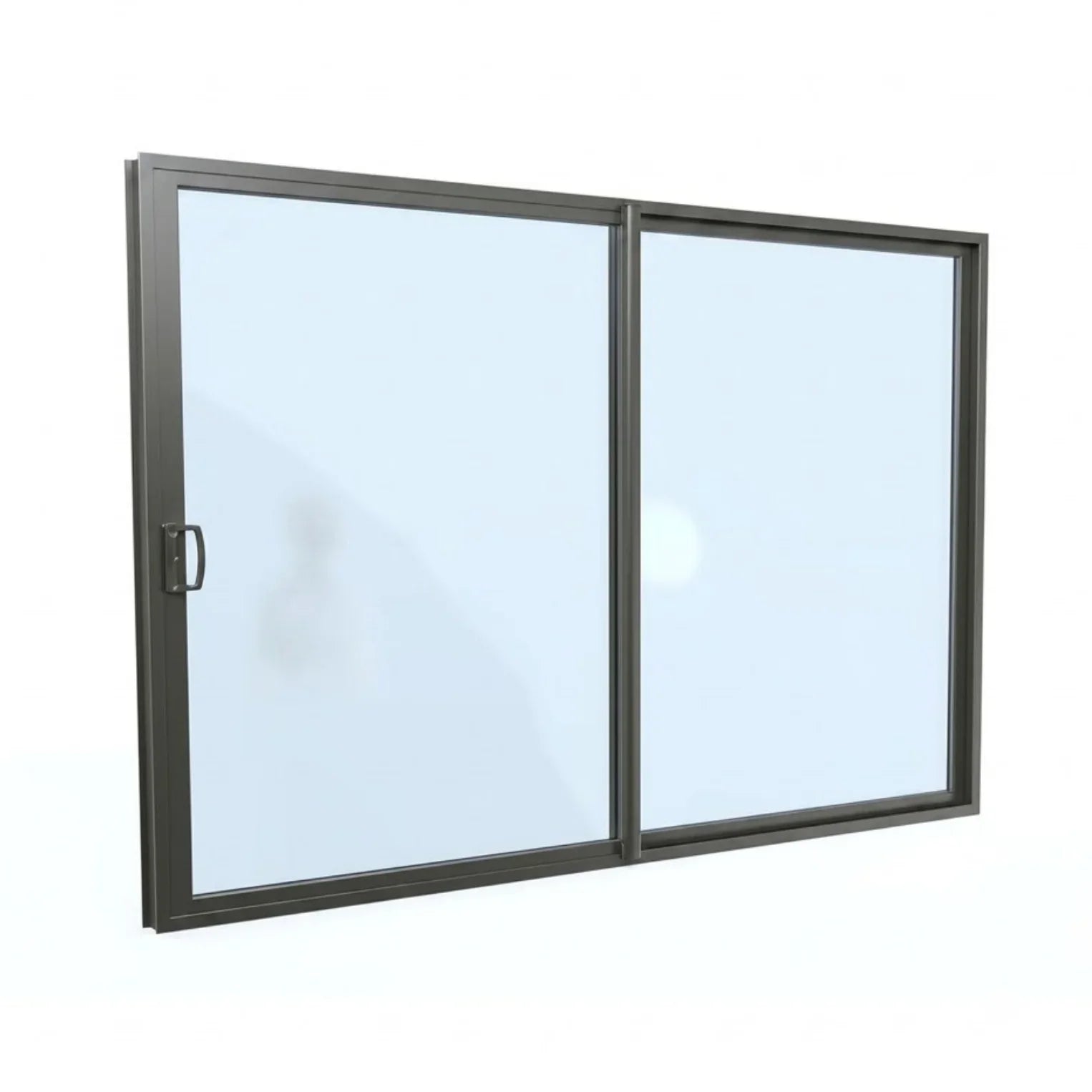

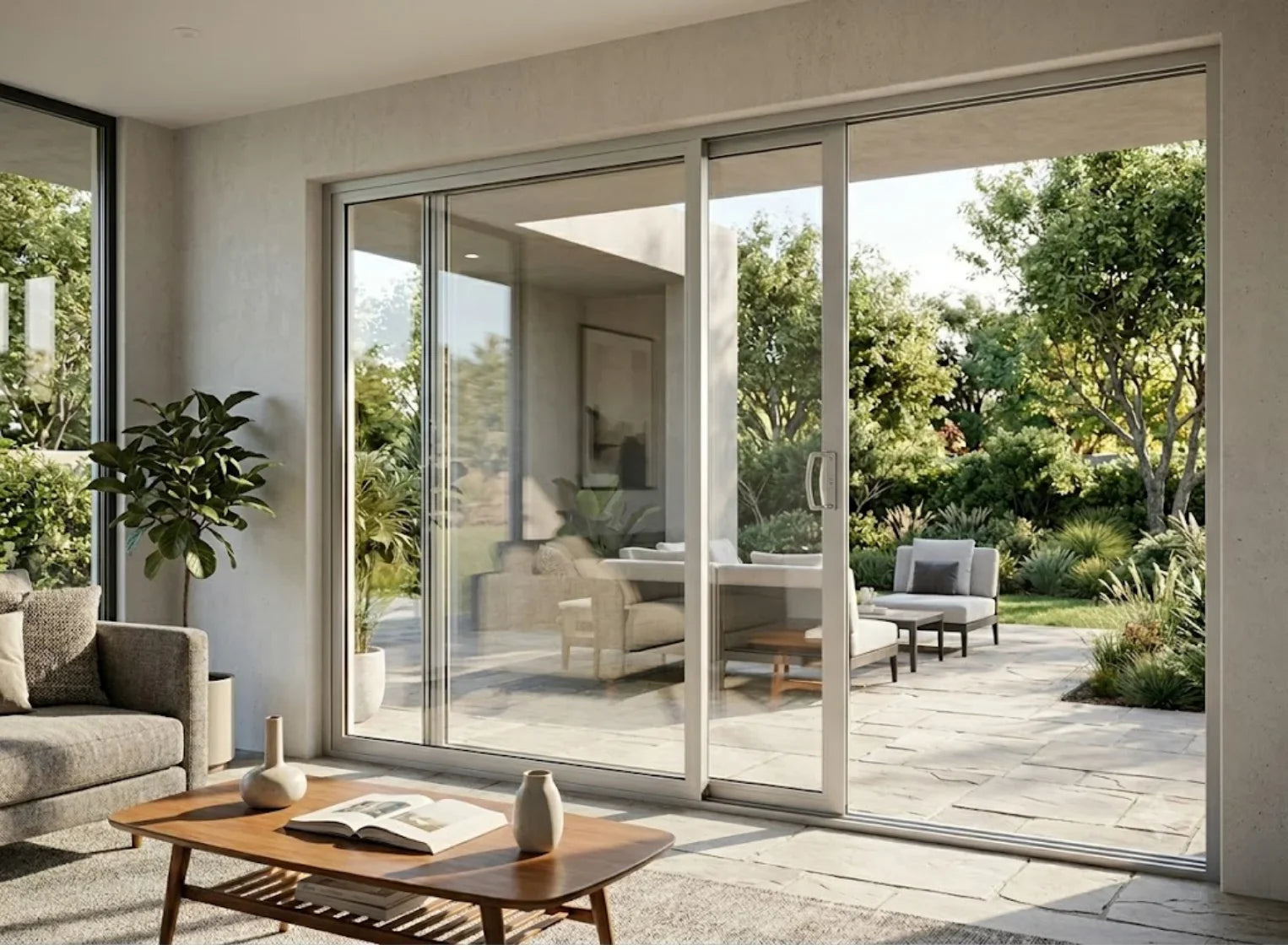

Two-Panel Sliding Door | H2400 x W2700

Bring the uncompromising strength of commercial engineering into your residential build with our 2400H x 2700W Two-Panel Aluminium Sliding Door. Uniquely engineered using a heavy-duty structural profile, this robust door system provides exceptional structural stability, superior weatherproofing, and fluid operational performance. Featuring an integrated sliding screen, it is the perfect solution for modern bedrooms, high-traffic living spaces, and coastal properties demanding unmatched durability.

Evolving directly from systems designed for luxury high-rise apartments, this unit eliminates the flimsy feel of generic residential doors, delivering a premium architectural finish built to last a lifetime.

Technical Specifications & Sizing

• Door Dimensions: Two-Panel Sliding Door | H2400 x W2700 (Note: Height adjusted from window to standard door sizing)

• Required Stud Opening (Reveal Doors Only): Two-Panel Sliding Door | H2400 x W2700

• Weight: Single Glazed: 75kg | Double Glazed: 100kg

• Hardware: Built standard with high-security Doric locking systems for flawless operation.

• Premium Handle Upgrade Available: Want to elevate your aesthetic and security? Check out our heavy-duty Carey Twin Sliding Handle architectural lock upgrade available via our online store.

Advanced Engineering & Premium Features

• Concealed Track System: Say goodbye to unsightly exposed tracks that trap dirt. This system features a full suite of threshold in-fills, jamb in-fills, and custom end caps to conceal all open cavities—creating a flush, clean look that stops grit, dust, and pests in their tracks.

• Weather & Pest Defense: Features an internally concealed weather flap system that slashes air and water infiltration while stopping insects from breaching structural drain holes.

• Extreme Weather Performance: Available with specialized heavy-duty interlocks engineered to withstand high wind loads up to demanding cyclonic conditions.

• Fully Certified: Thoroughly tested and compliant with Australian Standards AS2047, AS1170, AS1191, and AS3959.

Eco-Conscious Architecture & Energy Efficiency

Upgrading basic structural frames is the fastest way to lower your energy expenses and foster a healthier home environment. Research by the Sustainable Windows Alliance of Australia shows a typical home can achieve an immediate 2 to 2.5-star energy efficiency bump simply by upgrading to high-performance window and door systems. Made from 100% recyclable aluminium, this eco-friendly system is as sustainable as it is durable.

While competing brands require clunky, add-on adapters to fit thick glass profiles, our frames natively accept advanced eco-glazing options right out of the box. Effortlessly integrate energy-saving Low-E glass, or up to 10.5mm high-performance thermal and acoustic glazing layers with zero alterations to the frame.

Pro-Tip for Smart Builds: For maximum thermal comfort, ensure your living areas are oriented north with seasonal shading, insulate your walls heavily, and invest in premium performance doors and windows.

Need a Bespoke Size, Layout, or Frame Color?

We love bringing custom specifications to life. Whether you need alternative dimensions, specialized glass coatings, or unique powder-coated frame colors, our manufacturing team can construct it. Contact our Custom Design Team today to request a tailored project quote!

Note: Product photography focuses on the inside looking out to accurately demonstrate the premium interior hardware profile.
